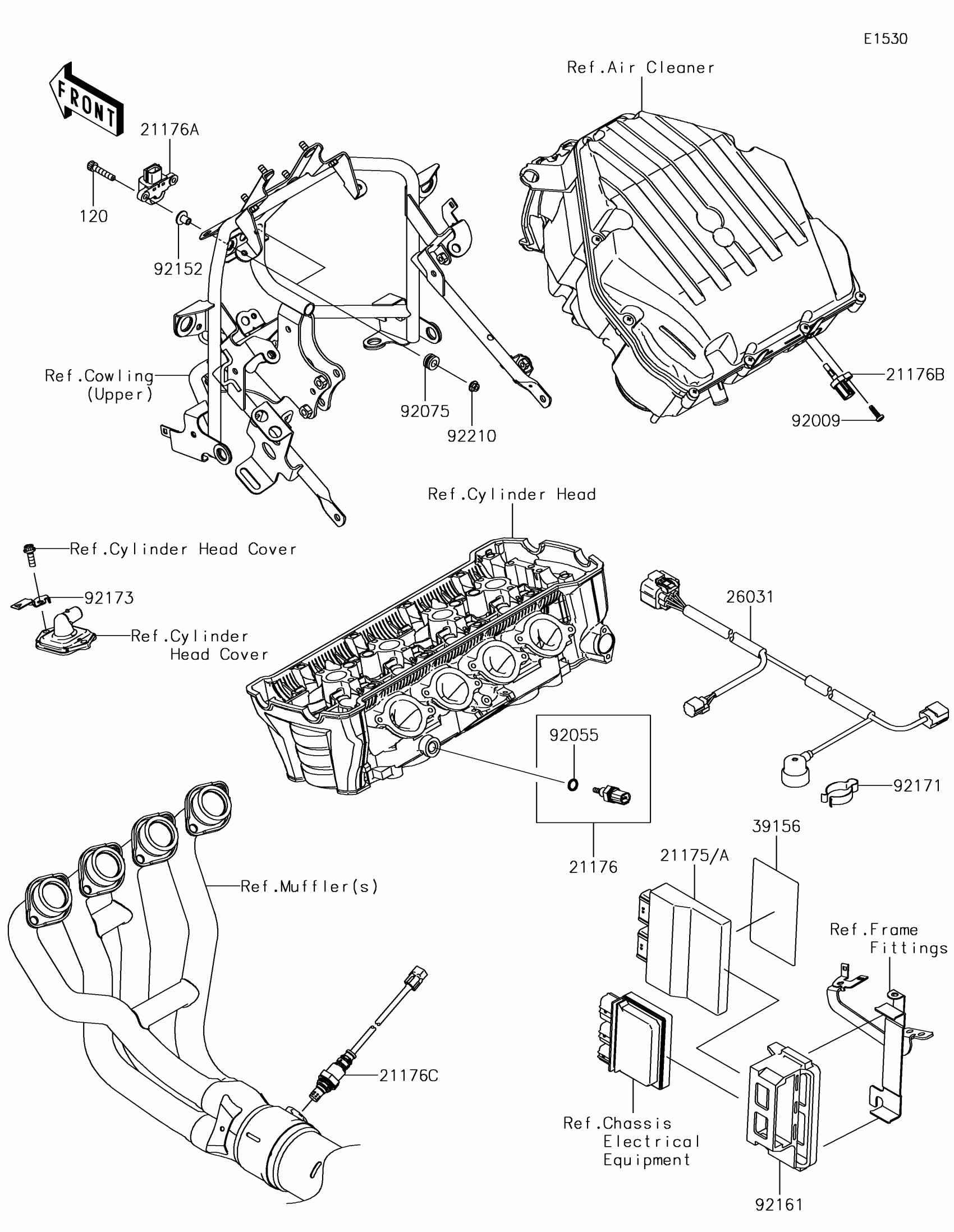

Kawasaki VERSYS® 1000 LT Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X25

120CA0525

$3.86

21175

CONTROL UNIT-ELECTRONIC

21175-1219

$1,369.13

21175A

CONTROL UNIT-ELECTRONIC

21175-1220

$1,369.13

21176

SENSOR,WATER TEMP

21176-0009

$63.44

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$79.06

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$24.07

21176C

SENSOR,OXYGEN

21176-0132

$237.85

26031

HARNESS,SUB

26031-2160

$61.70

39156

PAD,ELECTRONIC NOISE GUARD

39156-2171

$3.15

92009

SCREW,TAPPING,5X16

92009-1984

$2.12

92055

RING-O,9.5X1.9

92055-0016

$7.06

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-1625

$7.72

92161

DAMPER

92161-0356

$23.93

92171

CLAMP,CABLE

92171-1283

$10.51

92173

CLAMP

92173-0126

$4.66

92210

NUT,FLANGED,5MM

92210-0007

$2.20
