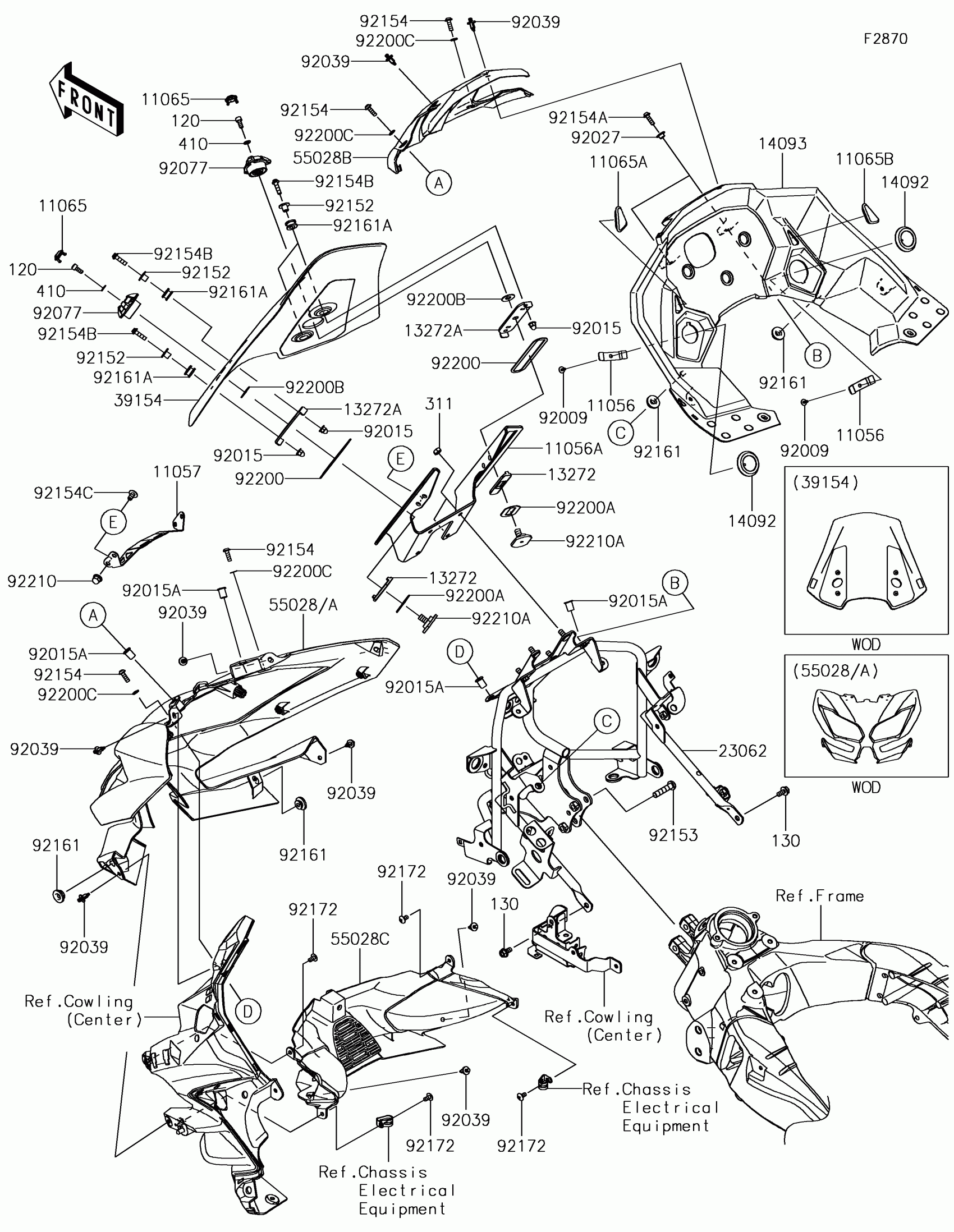

Kawasaki VERSYS® 1000 LT Cowling(Upper) Diagram

#

Description
Price

11056

BRACKET

11056-0373

$3.74

11056A

BRACKET,WINDSHIELD

11056-4218

$85.79

11057

BRACKET,METER VISOR

11057-0716

$25.16

11065

CAP,KNOB

11065-0734

$5.29

11065A

CAP,METER COVER,LH

11065-0881

$7.41

11065B

CAP,METER COVER,RH

11065-0882

$7.41

120

BOLT-SOCKET,5X12

120CA0512

$1.57

13272

PLATE,BACK

13272-1925

$3.76

13272A

PLATE,FRONT

13272-2332

$5.44

14092

COVER,DC SOCKET

14092-0214

$6.57

14093

COVER,METER

14093-0130

$158.85

23062

BRACKET-COMP,COWLING STAY

23062-0931

$438.74

39154

WINDSHIELD

39154-0361

$179.94

55028A

COWLING,UPP,C.F.RED

55028-0524-816

Unavailable

55028B

COWLING,UPP,CNT

55028-0525

$24.53

55028C

COWLING,UPP,INNER,LWR

55028-0526

$117.06

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92015

NUT,LOCK,FLANGE CAP,5MM

92015-1263

$6.57

92015A

NUT,WELL,5MM

92015-1757

$7.29

92027

COLLAR

92027-1880

$4.69

92039

RIVET

92039-0068

$2.97

92077

KNOB,ADJUSTERS

92077-0034

$12.80

92152

COLLAR

92152-0092

$6.61

92153

BOLT,SOCKET,8X35

92153-0419

$3.26

92154

BOLT,SOCKET,5X16

92154-0026

$2.55

92154A

BOLT,SOCKET,5X16

92154-0209

$2.75

92154B

BOLT,SOCKET,5X20

92154-0919

Unavailable

92154C

BOLT,SOCKET,6X12

92154-2546

$1.97

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER

92161-1938

$2.49

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER

92200-0801

$4.41

92200A

WASHER,23.5X32X1

92200-1706

$3.12

92200B

WASHER,8.2X20X1

92200-1751

$5.98

92200C

WASHER,5.2X10X1.0

92200-1820

$0.63

92210

NUT,CAP,6MM

92210-0003

$0.64

92210A

NUT,5MM

92210-1555

$30.56

130

BOLT-FLANGED,6X12

130BA0612

$1.72

311

NUT-HEX,6MM

311BA0600

$2.23

410

WASHER-PLAIN-SMALL

410AA0500

$0.47
