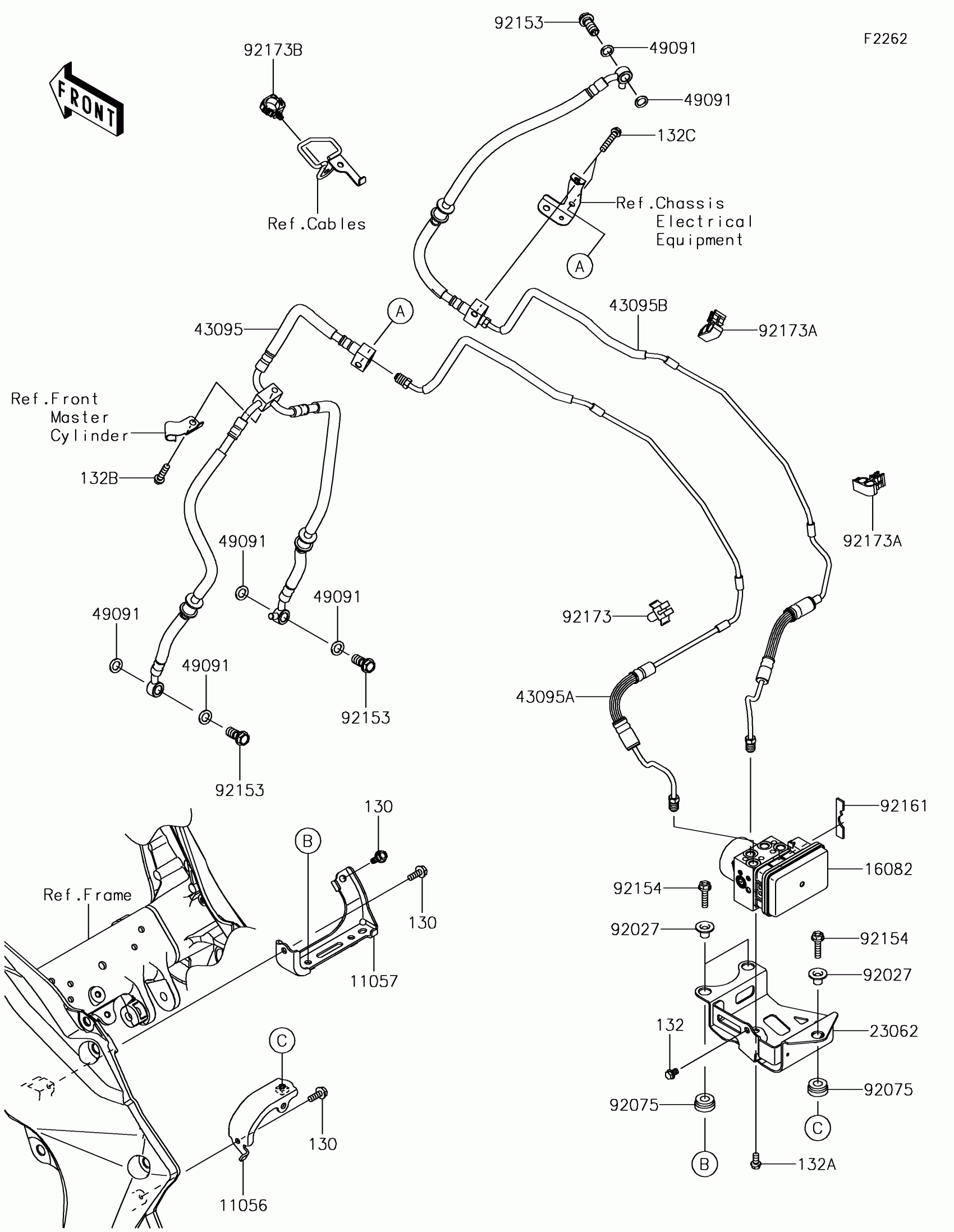

Kawasaki VERSYS® 1000 LT Brake Piping Diagram

Description

Price

11056

BRACKET

11056-2098

$10.68

11057

BRACKET,REGULATOR

11057-0430

$24.24

130

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X8

132BA0608

$2.49

132A

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

132B

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132C

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

16082

PUMP-ASSY-OIL,ABS

16082-0738

$1,628.95

23062

BRACKET-COMP,ABS UNIT

23062-0824

$38.33

43095

HOSE-BRAKE,HEAD PIPE-CALIPER

43095-0837

$176.70

43095A

HOSE-BRAKE,FR CALIPER-HU

43095-1451

$119.38

43095B

HOSE-BRAKE,FR M/CYL.-ABS HU

43095-1464

$173.47

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$5.57

92075

DAMPER

92075-277

$2.84

92153

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,FLANGED,6X25

92154-0498

$1.94

92161

DAMPER

92161-1673

$2.00

92173

CLAMP

92173-0088

$3.65

92173A

CLAMP,CLIP

92173-0799

$14.90

92173B

CLAMP,HOLDER CLIP

92173-0868

$3.02
