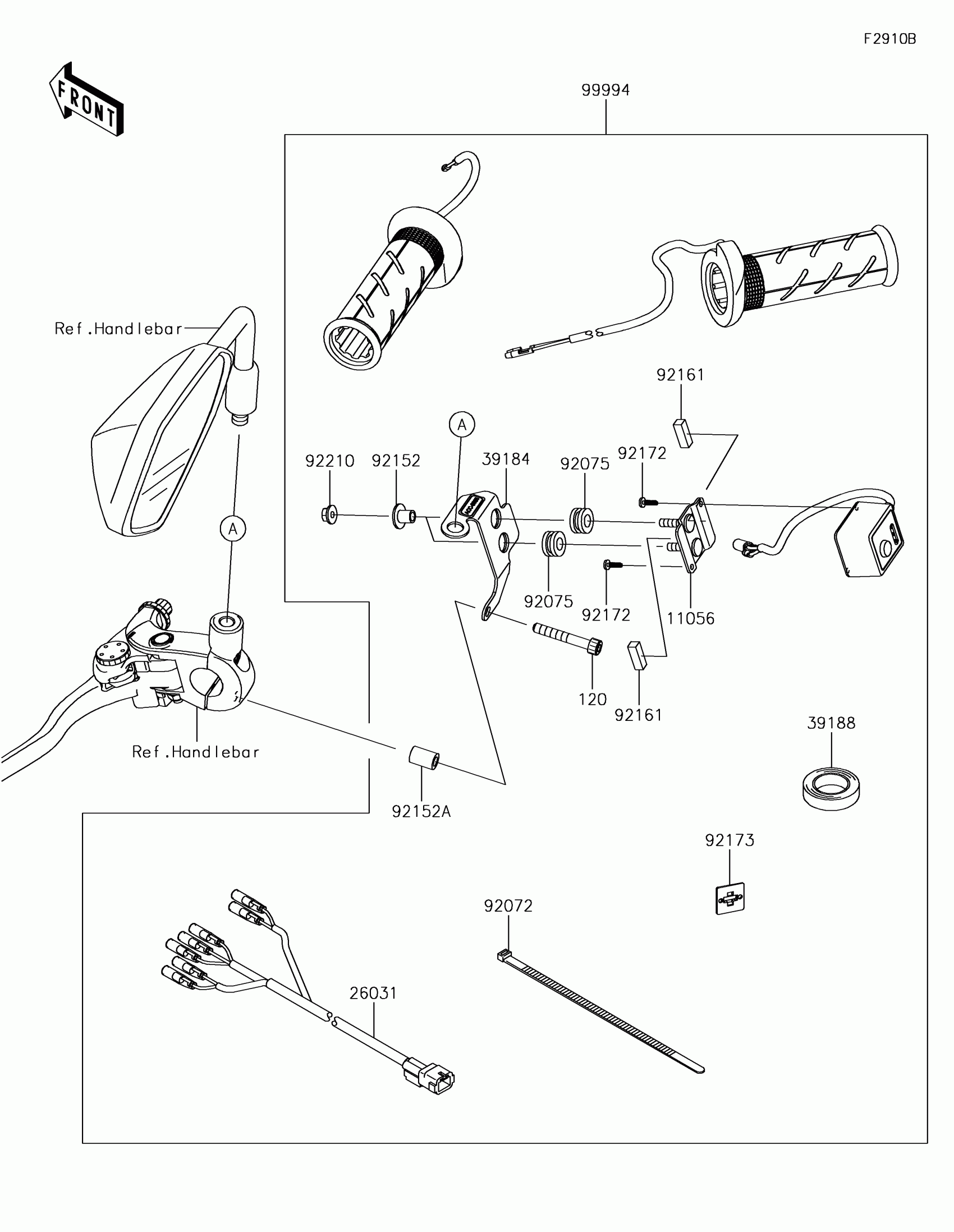

Kawasaki VERSYS® 1000 LT Accessory(Grip Heater) Diagram

Description

Price

11056

BRACKET

11056-7296

$34.87

120

BOLT-SOCKET,6X40

120CB0640

$1.52

26031

HARNESS

26031-1851

$102.29

39184

BRACKET-ASSY

39184-0039

$174.29

39188

TAPE,HARNESS

39188-0006

$10.51

92072

BAND,L=100

92072-3875

$4.15

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92152A

COLLAR

92152-1994

$18.54

92161

DAMPER

92161-1756

$2.26

92172

SCREW,TAPPING,3X10

92172-0351

$1.28

92173

CLAMP

92173-0812

$2.26

92210

NUT,FLANGED,5MM

92210-0007

$2.70

99994

KIT-ACCESSORY,GRIP-HEATER

99994-0572

$318.27
