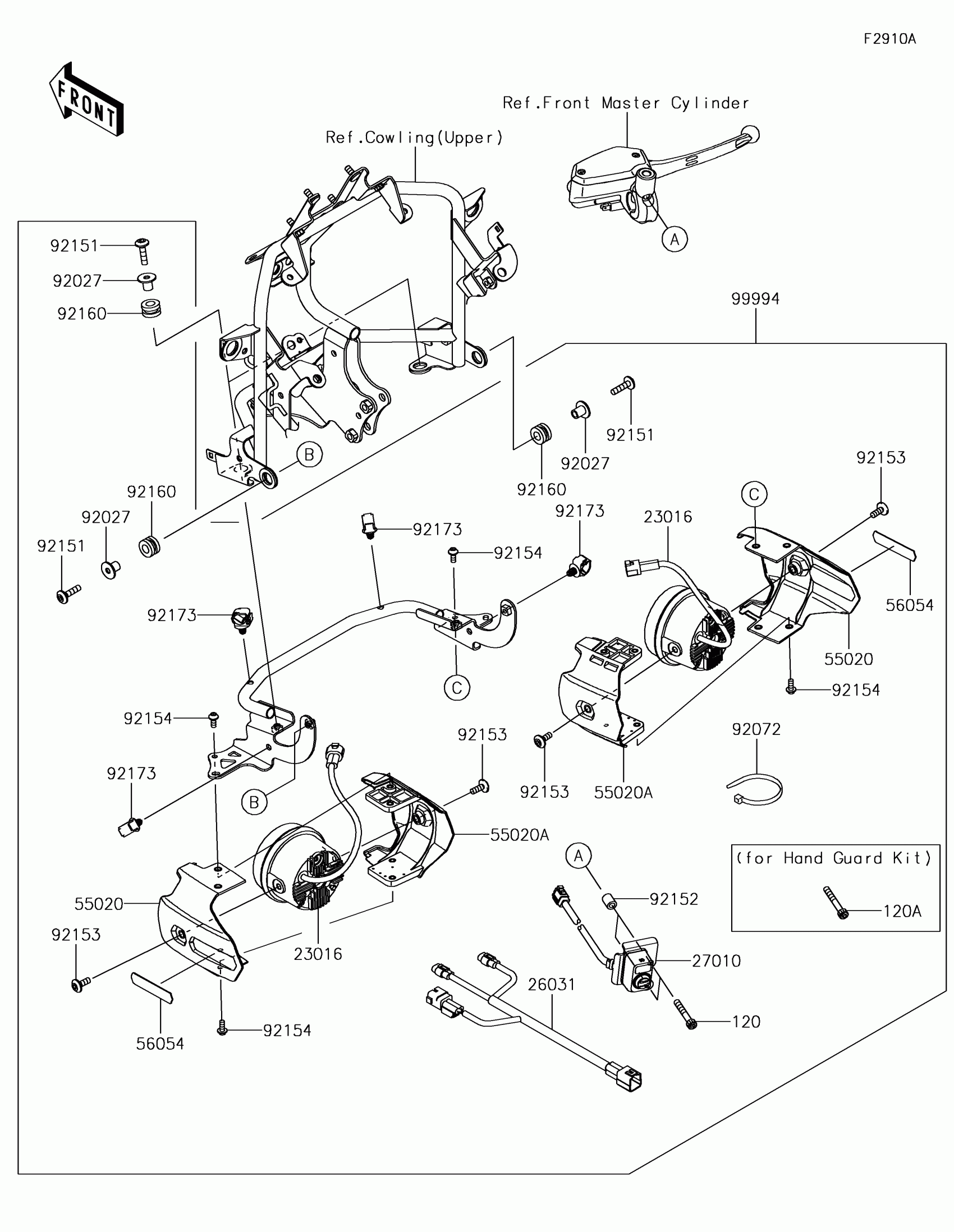

Kawasaki VERSYS® 1000 LT Accessory(Fog Lamp) Diagram

Description

Price

120

BOLT-SOCKET,6X40

120CB0640

$1.52

120A

BOLT-SOCKET,6X45

120CB0645

$4.45

23016

LAMP-ASSY,FOG LAMP,LED

23016-0571

$393.88

26031

HARNESS,FOG LAMP

26031-1756

$50.90

27010

SWITCH,SUB LAMP

27010-0761

$76.43

55020

GUARD,OUTER

55020-1825

$14.76

55020A

GUARD,INNER

55020-1826

$5.85

56054

MARK,FOG LAMP,KAWASAKI

56054-1695

$12.56

92027

COLLAR,6.5X10X14.1

92027-1183

$5.52

92072

BAND,L=152

92072-3874

$4.18

92151

BOLT,SOCKET,6X25

92151-1611

$2.34

92152

COLLAR,6.3X11X14

92152-1965

$5.79

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X12

92154-0917

$4.72

92160

DAMPER,10X20X12

92160-1167

$4.69

92173

CLAMP,12MM DIA.

92173-0736

$5.05

99994

KIT-ACCESSORY,FOG LAMP

99994-0487

$616.89
