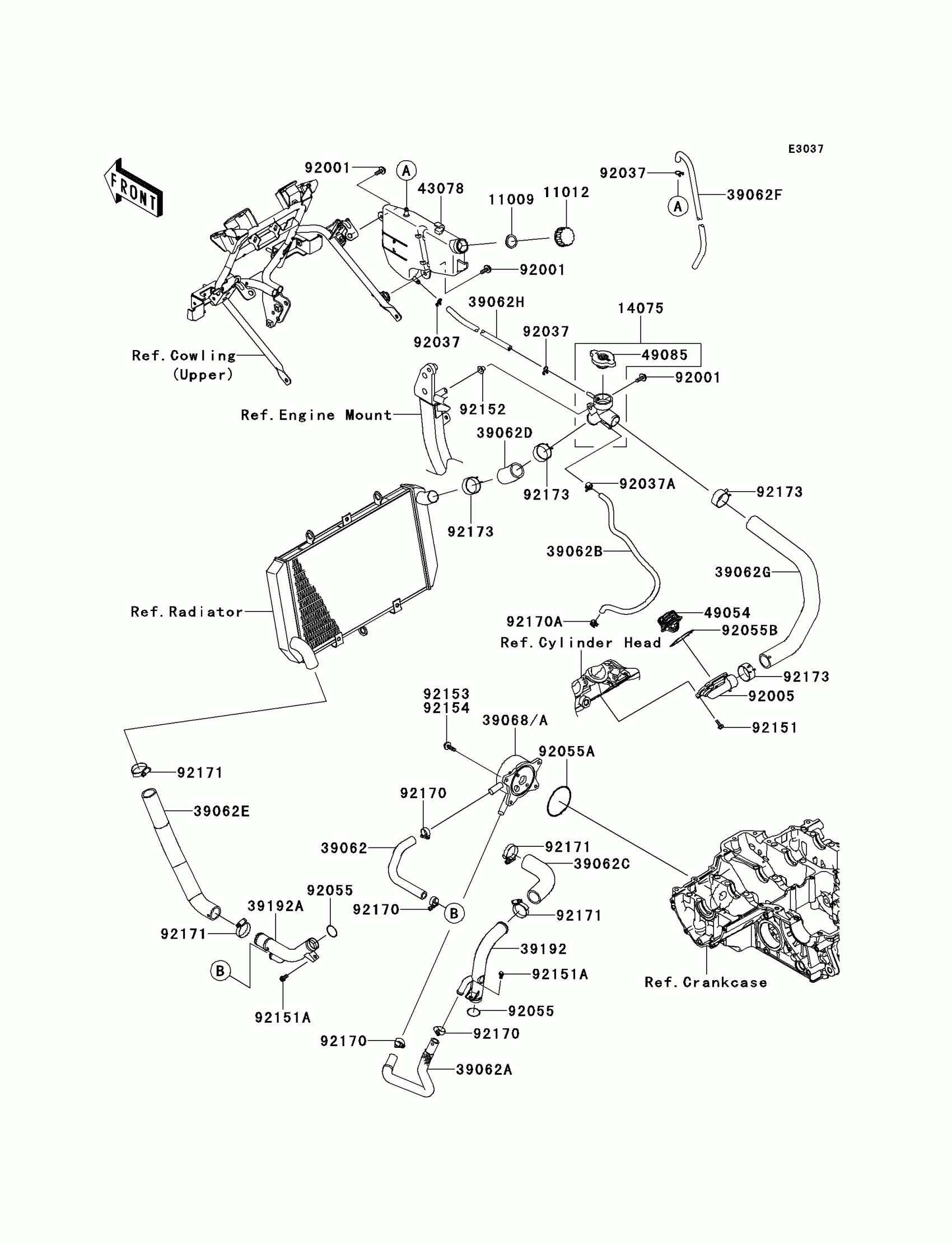

Kawasaki VERSYS® 1000 (European) Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

14075

CAP-ASSY

14075-0011

Unavailable

39062

HOSE-COOLING,PIPE-OIL COOLER

39062-0308

$9.50

39062A

HOSE-COOLING,PIPE-OIL COOLER

39062-0309

$34.79

39062B

HOSE-COOLING,AIR BLEED

39062-0310

$10.09

39062C

HOSE-COOLING,PIPE-CYLINDER

39062-0312

$16.69

39062D

HOSE-COOLING,CAP-RAD.

39062-0314

$7.52

39062E

HOSE-COOLING,RAD.-PIPE

39062-0344

$49.00

39062F

HOSE-COOLING,OVER FLOW

39062-0590

$17.14

39062G

HOSE-COOLING,HEAD-CAP

39062-0591

$44.20

39062H

HOSE-COOLING,OVERFLOW

39062-1814

$23.17

39068A

COOLER-ASSY-OIL

39068-0704

$681.44

39192

PIPE-WATER

39192-0116

$43.93

39192A

PIPE-WATER

39192-0136

$45.18

43078

RESERVOIR

43078-0074

$44.88

49054

THERMOSTAT

49054-0004

$59.01

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

92001

BOLT,6X18

92001-1342

Unavailable

92005

FITTING,THERMO CAP

92005-0076

$79.65

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,20.8X2.4

92055-0114

$3.90

92055A

RING-O,63.3MM

92055-0739

$4.10

92055B

RING-O,THERMOSTAT CAP

92055-1699

$9.07

92151

BOLT,5X14

92151-1764

$2.41

92151A

BOLT,6X12

92151-1997

$1.54

92152

COLLAR,6.3X8.3X9.2

92152-0237

$5.65

92154

BOLT,FLANGED,6X22

92154-0403

$3.35

92170

CLAMP

92170-1283

$13.67

92170A

CLAMP

92170-1493

$5.00

92171

CLAMP

92171-0179

$8.20

92173

CLAMP

92173-0072

$7.24
