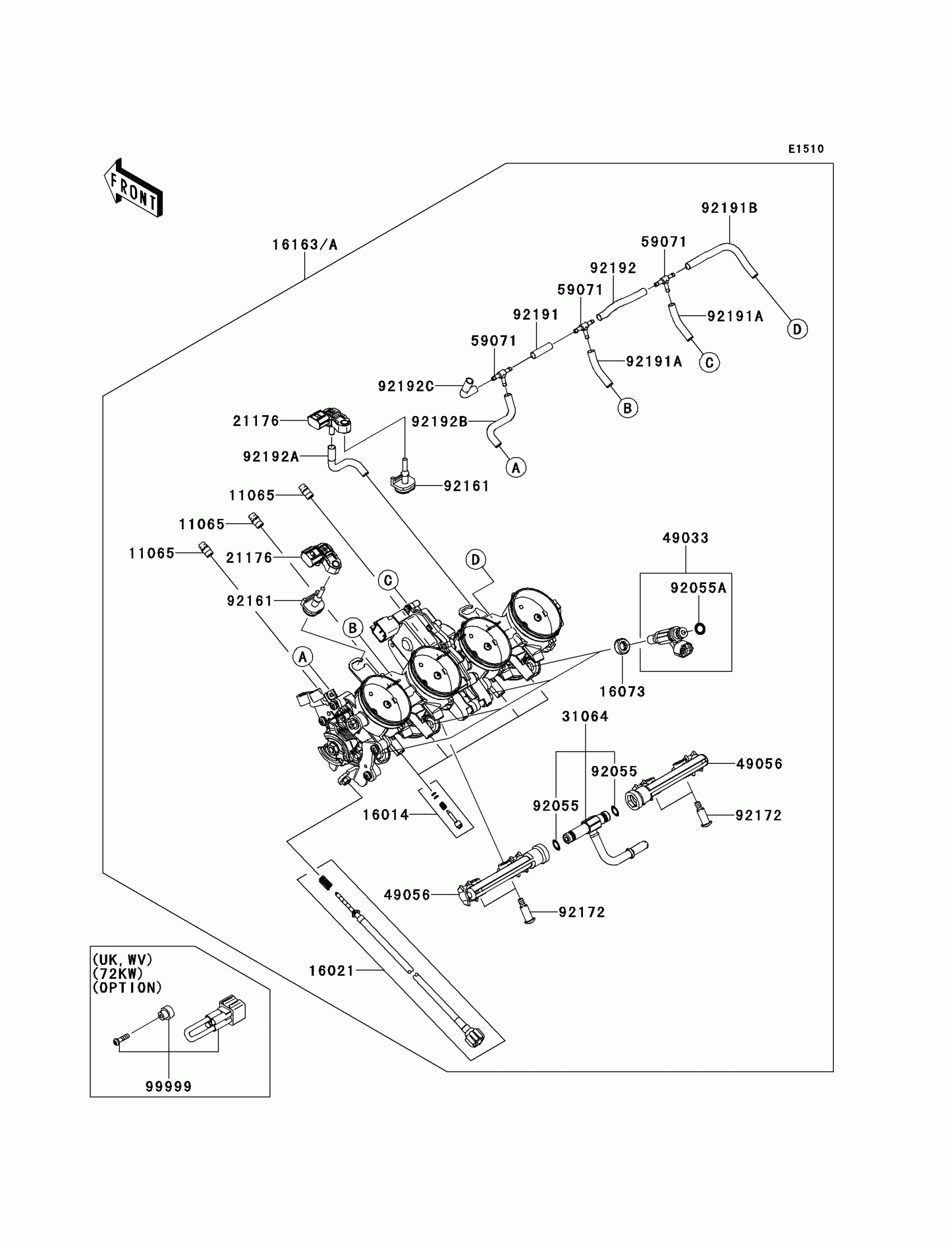

Kawasaki VERSYS® 1000 (European) Throttle Diagram

Description

Price

11065

CAP

11065-0018

$4.61

16014

SCREW-PILOT AIR

16014-0002

$20.40

16021

SCREW-THROTTLE STOP

16021-0026

$65.38

16073

INSULATOR

16073-3707

$4.65

21176

SENSOR,PRESSURE

21176-0111

$226.99

31064

PIPE-COMP,FUEL

31064-0199

$87.59

49033

NOZZLE-INJECTION

49033-0012

$135.42

49056

PIPE-INJECTION

49056-0014

$105.63

59071

JOINT,3WAY,T

59071-3752

$7.76

92055

RING-O

92055-0064

$5.84

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92161

DAMPER

92161-0673

$4.85

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92191

TUBE,3X7X25

92191-0020

$1.98

92191A

TUBE,3X7X40

92191-0022

$2.61

92191B

TUBE,3X7X100

92191-0023

$3.71

92192

TUBE,3X7X72

92192-0739

$8.19

92192A

TUBE,THROBO RH-SENSOR

92192-0840

$9.63

92192B

TUBE,THROBO LH-JOINT

92192-0841

$9.63

92192C

TUBE,SENSOR-JOINT

92192-0842

$9.63

16163

THROTTLE-ASSY

16163-0730

Unavailable

16163A

THROTTLE-ASSY

16163-0765

$1,946.01

99999

KIT.,72KW

99999-0325

$29.48
