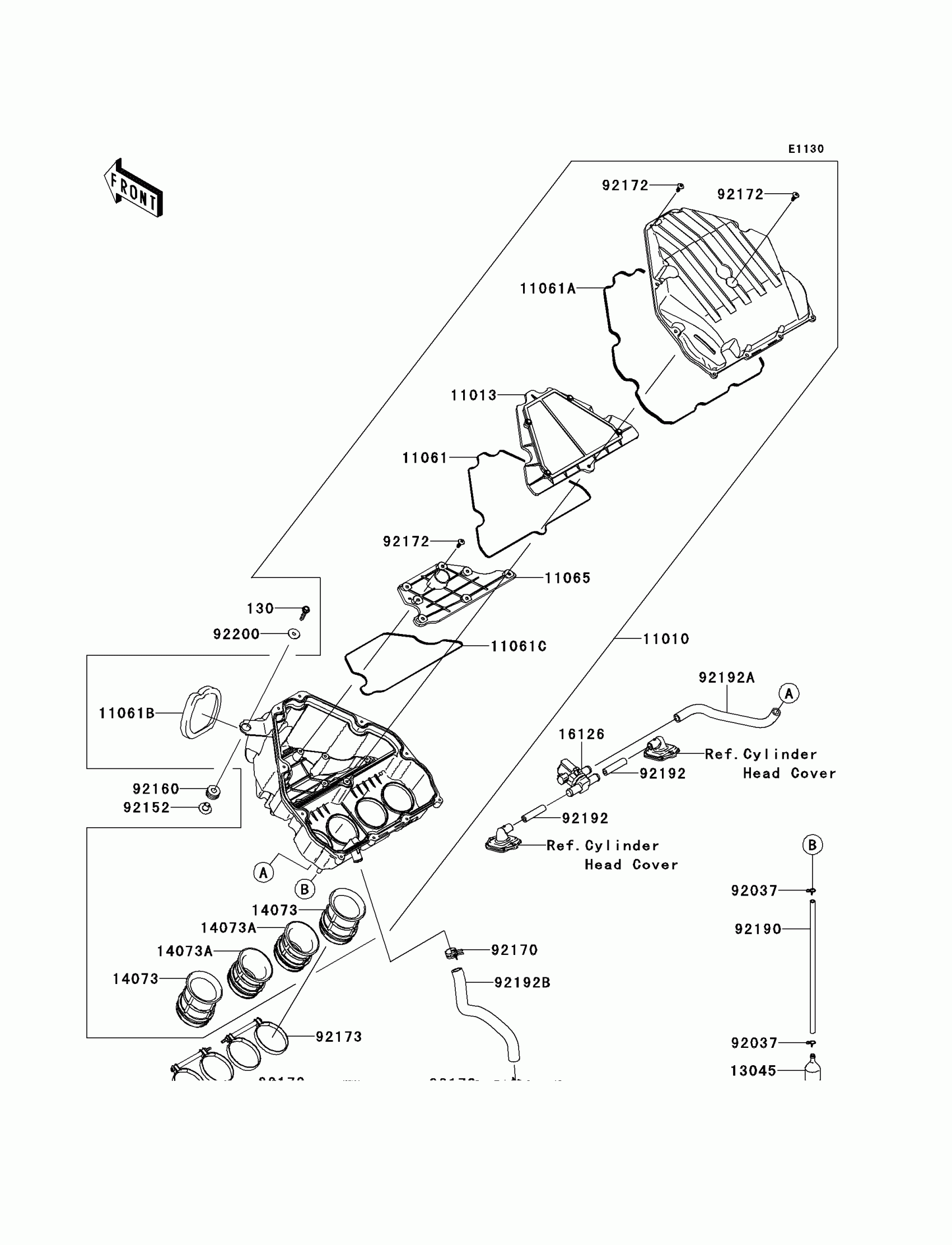

Kawasaki VERSYS® 1000 (European) Air Cleaner Diagram

Description

Price

130

BOLT-FLANGED,6X30

130BB0630

$3.38

11010

FILTER-ASSY-AIR

11010-0214

$322.38

11013

ELEMENT-AIR FILTER

11013-0712

$41.15

11061

GASKET,ELEMENT

11061-0405

$5.97

11061A

GASKET,CASE

11061-0406

$9.22

11061B

GASKET,FRAME

11061-0407

$9.61

11061C

GASKET

11061-0424

$5.97

11065

CAP

11065-0366

$44.77

13045

RECEIVER-OIL

13045-1057

$7.48

14073

DUCT,#1

14073-0278

$14.37

14073A

DUCT,#2

14073-0279

$14.37

16126

VALVE,AIR SWITCHING

16126-1437

$165.68

92037

CLAMP

92037-1712

$3.81

92152

COLLAR,6.5X10.5X13.1

92152-0547

$4.27

92160

DAMPER

92160-1162

$3.81

92170

CLAMP

92170-1060

$7.93

92172

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0115

$21.15

92190

TUBE,6X9X300

92190-1253

$4.85

92192

TUBE,HEAD ASV

92192-0843

$2.25

92192A

TUBE,ASV-A/C

92192-0844

$13.83

92192B

TUBE,BLOWBY

92192-0845

$19.83

92200

WASHER,6.5X22X1.6

92200-1087

$3.01
