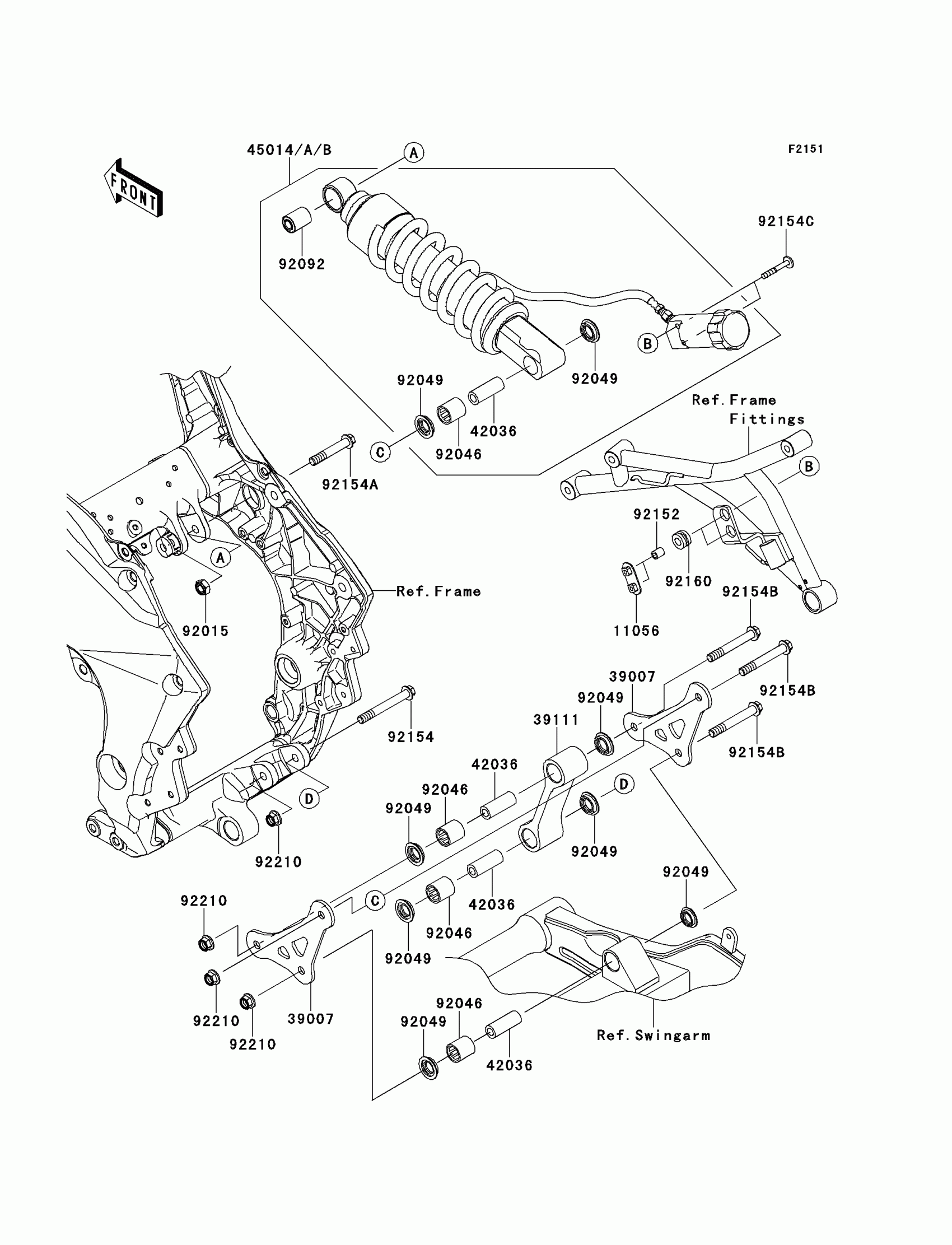

Kawasaki VERSYS® 1000 (European) Suspension/Shock Absorber Diagram

Description

Price

11056

BRACKET

11056-1914

$5.65

39007

ARM-SUSP,P.SILVER

39007-0356-458

$54.74

39111

ROD-TIE

39111-0311

$85.04

42036

SLEEVE,10.1X17X44.5

42036-1342

$11.28

45014

SHOCKABSORBER,SILVER/SILVER

45014-0367-37B

$1,183.65

45014B

SHOCKABSORBER,RED/SILVER

45014-0367-37E

$1,183.66

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92092

BUSHING-RUBBER

92092-1058

$29.88

92152

COLLAR,6.4X10X12

92152-1628

$7.98

92154

BOLT,FLANGED,10X77

92154-0262

$5.59

92154A

BOLT,FLANGED,10X60

92154-0263

$5.29

92154B

BOLT

92154-0890

$10.90

92154C

BOLT,SOCKET,6X42

92154-1006

$0.58

92160

DAMPER,10X20X12

92160-1167

$4.69

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
