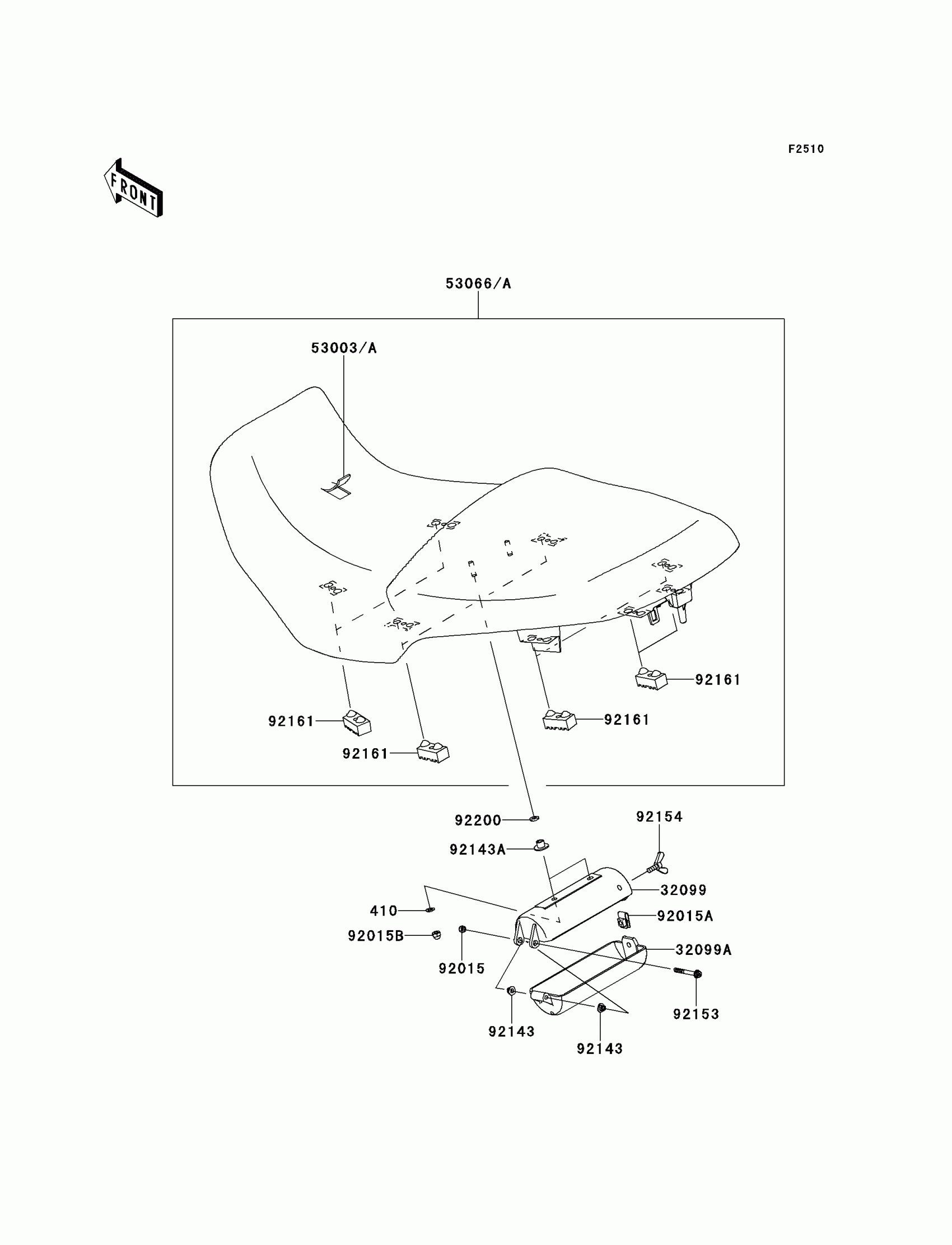

Kawasaki VERSYS® 1000 (European) Seat Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

32099

CASE,TOOL,BODY

32099-1184

$34.82

32099A

CASE,TOOL,CAP

32099-1185

$34.82

53003

LEATHER,SEAT,BLACK

53003-0330-MA

$155.58

53066

SEAT-ASSY,DUAL,BLACK

53066-0367-MA

Unavailable

92015

NUT,LOCK,5MM

92015-1221

$6.22

92015A

NUT,6MM

92015-1602

$7.34

92015B

NUT,6MM

92015-2272

$2.28

92143

COLLAR

92143-1234

$4.31

92143A

COLLAR

92143-1962

$6.22

92153

BOLT,ADJUST,5X45

92153-1216

$7.68

92154

BOLT,WING,6X15

92154-1051

$6.05

92161

DAMPER,SEAT

92161-0050

$7.68

92200

WASHER,6.2X12X1.6

92200-0806

$6.26
