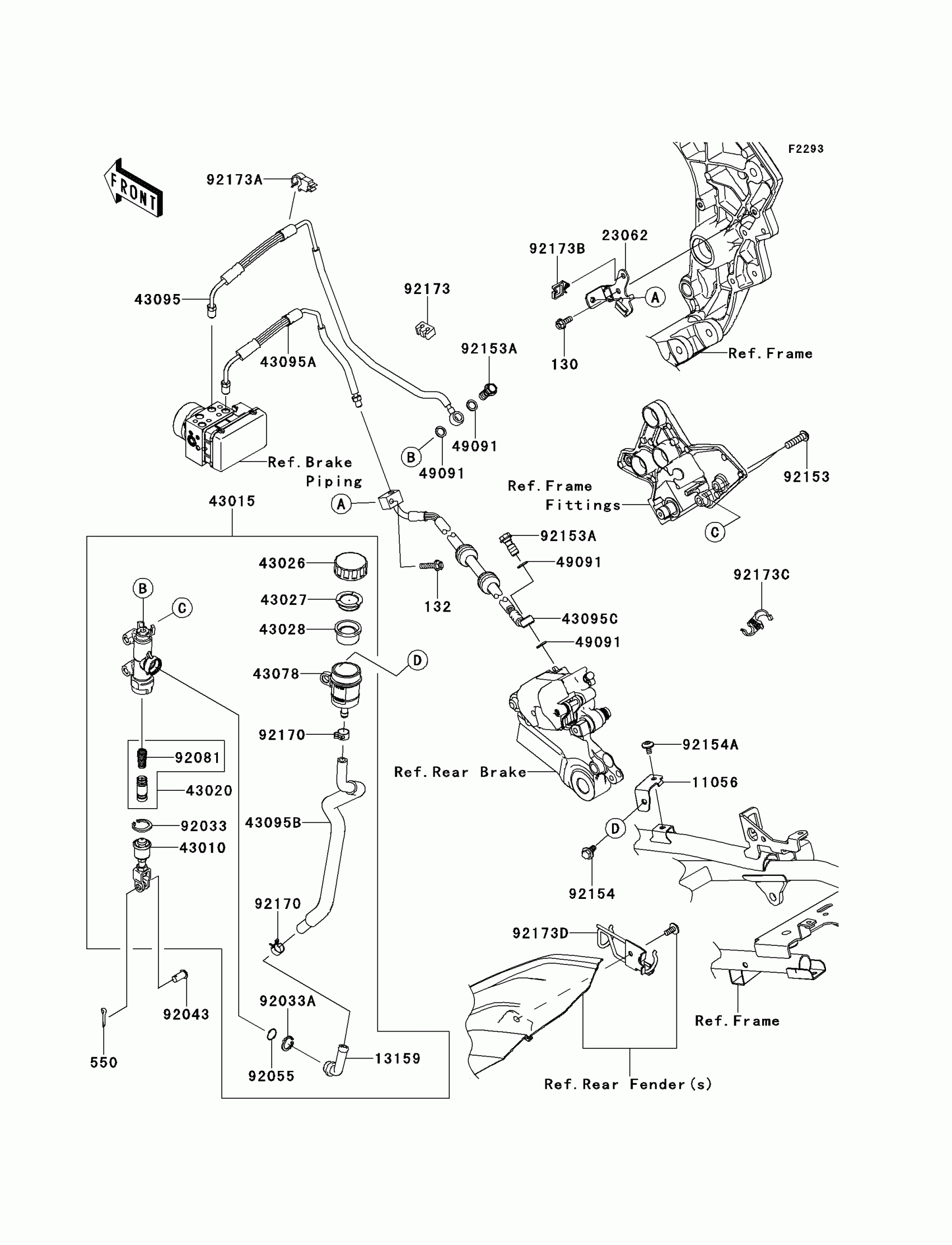

Kawasaki VERSYS® 1000 (European) Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130BA0616

$1.20

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

550

PIN-COTTER,2.0X15

550AA2015

$1.12

11056

BRACKET,RESERVOIR TANK

11056-1736

$7.77

13159

CONNECTOR

13159-1056

$14.10

23062

BRACKET-COMP

23062-0756

$16.64

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0572

$410.95

43020

PISTON-COMP-BRAKE

43020-1057

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR M/C-HU

43095-0697

$117.21

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-0698

$173.52

43095B

HOSE-BRAKE,RR MASTER CYLINDER

43095-0700

$35.06

43095C

HOSE-BRAKE,RR CALIPER-HU

43095-0706

$173.52

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN,8X17

92043-0104

$3.90

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92153

BOLT,SOCKET,8X30

92153-0393

$3.73

92153A

BOLT,OIL,L=23

92153-0627

$5.48

92154

BOLT,FLANGED,6X16

92154-0385

$3.99

92154A

BOLT,SOCKET,6X10

92154-0774

$1.63

92170

CLAMP,HOSE

92170-1091

$5.00

92173

CLAMP

92173-0103

$4.01

92173A

CLAMP

92173-0170

$4.41

92173B

CLAMP,12MM DIA.

92173-0736

$5.05

92173C

CLAMP

92173-0858

$8.69

92173D

CLAMP

92173-0882

$33.85
