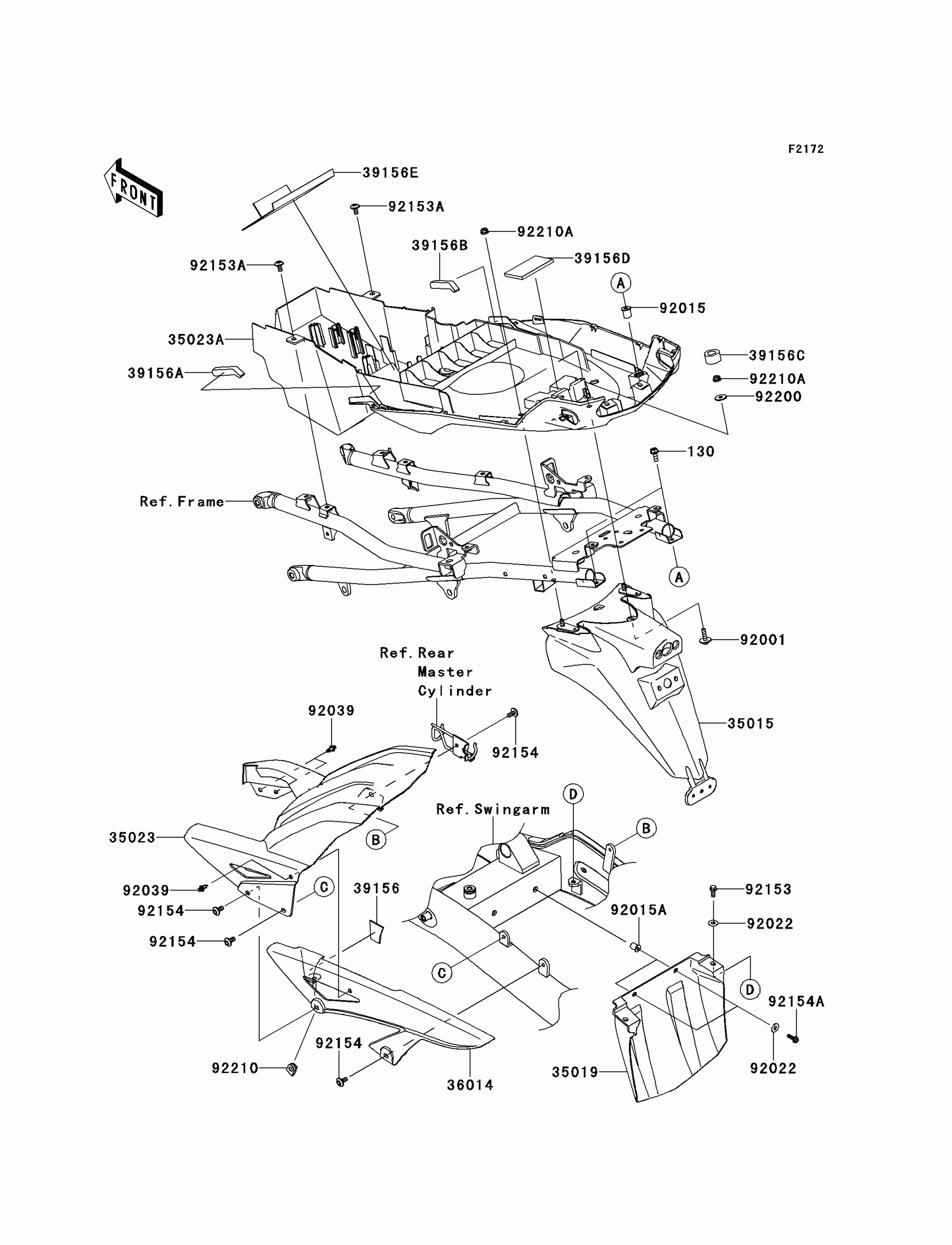

Kawasaki VERSYS® 1000 (European) Rear Fender(s) Diagram

Description

Price

130

BOLT-FLANGED,6X18

130CA0618

$1.78

35015

FLAP-COMP

35015-0015

$100.90

35019

FLAP,RR

35019-0563

$32.36

35023

FENDER-REAR,INNER

35023-0336

$64.61

35023A

FENDER-REAR

35023-0350

$170.63

36014

CASE-CHAIN

36014-0557

$39.77

39156

PAD,CHAIN CASE

39156-0816

$3.32

39156A

PAD,RR FENDER,LH

39156-0856

$3.13

39156B

PAD,RR FENDER,RH

39156-0857

$3.13

39156C

PAD,14X33X15

39156-0865

$4.06

39156D

PAD,45X75X5

39156-0866

$6.57

39156E

PAD,BATTERY

39156-0893

$26.91

92001

BOLT,UPSET-WP,6X22

92001-1774

$3.65

92015

NUT

92015-1700

$8.58

92015A

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92039

RIVET

92039-0060

$3.39

92153

BOLT

92153-1805

$2.61

92153A

BOLT,SOCKET,6X12

92153-1948

$1.78

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92154A

BOLT,FLANGED,5X16

92154-1004

$1.19

92200

WASHER,6.5X20X1.6

92200-0283

$1.40

92210

NUT,6MM

92210-0277

$4.92

92210A

NUT,LOCK,FLANGED,6MM

92210-0303

$1.34
