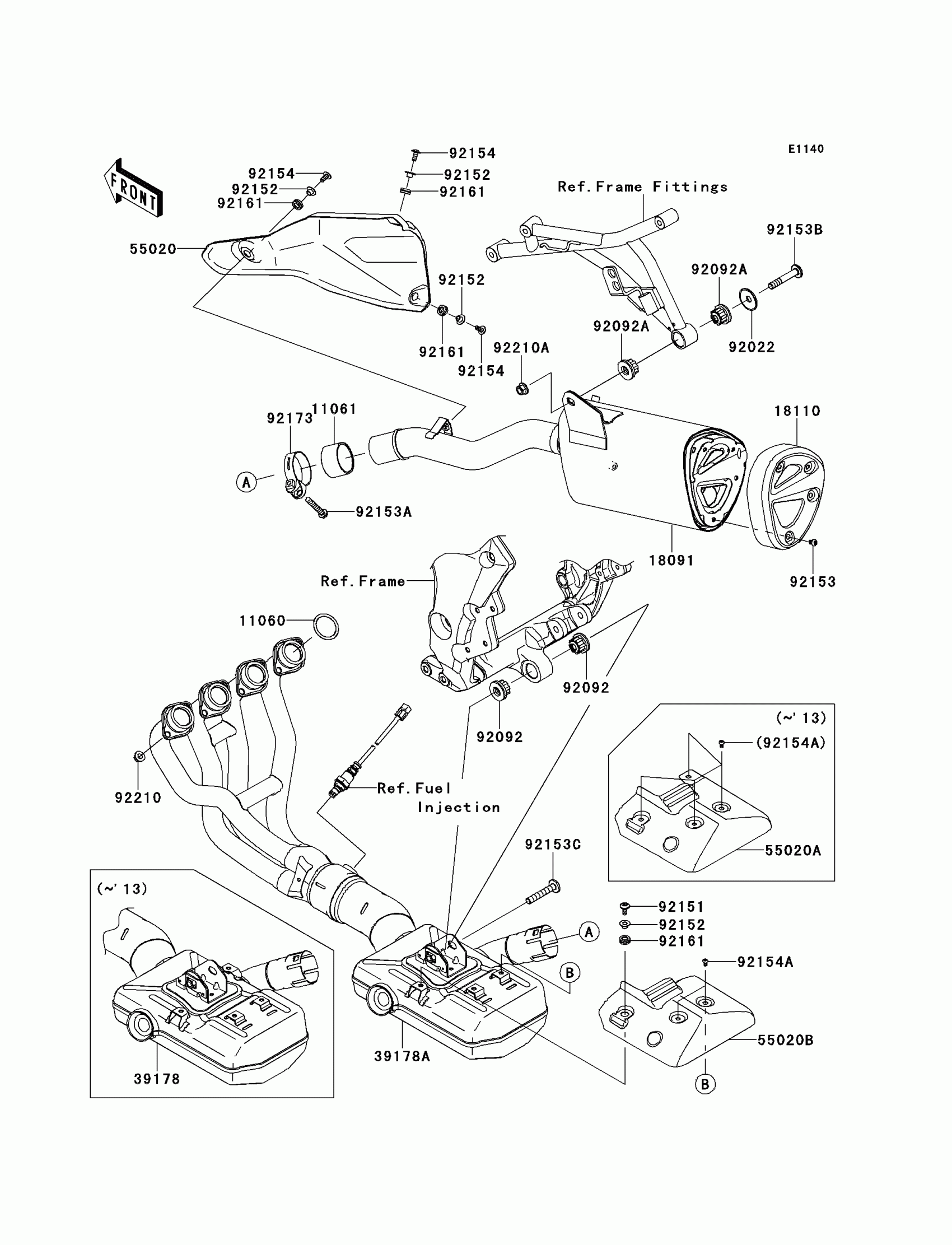

Kawasaki VERSYS® 1000 (European) Muffler(s) Diagram

Description

Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$7.88

11061

GASKET,MUFFLER CONNECTING

11061-0726

$34.79

18091

BODY-COMP-MUFFLER

18091-0778

$974.04

18110

BODY END-MUFFLER

18110-0148

$124.88

39178A

MANIFOLD-COMP-EXHAUST

39178-0214

$1,690.91

55020

GUARD,HEAT

55020-0598

$231.92

55020B

GUARD,CHAMBER

55020-0904

$147.86

92022

WASHER

92022-289

$16.33

92092

BUSHING-RUBBER

92092-1081

$24.82

92092A

BUSHING-RUBBER,MUFFLER

92092-1087

$19.90

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6.3X8.3X16

92152-0286

$5.65

92153

BOLT,6X8

92153-0578

$2.55

92153A

BOLT,8X45

92153-0702

$3.44

92153B

BOLT,SOCKET,10X60

92153-1837

$13.60

92153C

BOLT,SOCKET,10X58

92153-1930

$8.68

92154

BOLT,SOCKET,6X14

92154-0856

$1.94

92154A

BOLT,SOCKET,6X8

92154-0963

$4.45

92161

DAMPER

92161-0306

$5.65

92173

CLAMP

92173-0037

$27.35

92210

NUT,8MM

92210-0076

$5.48

92210A

NUT

92210-0568

$2.06
