2014 Kawasaki Versys® 1000 (European) Ignition Switch Diagram

← All diagrams

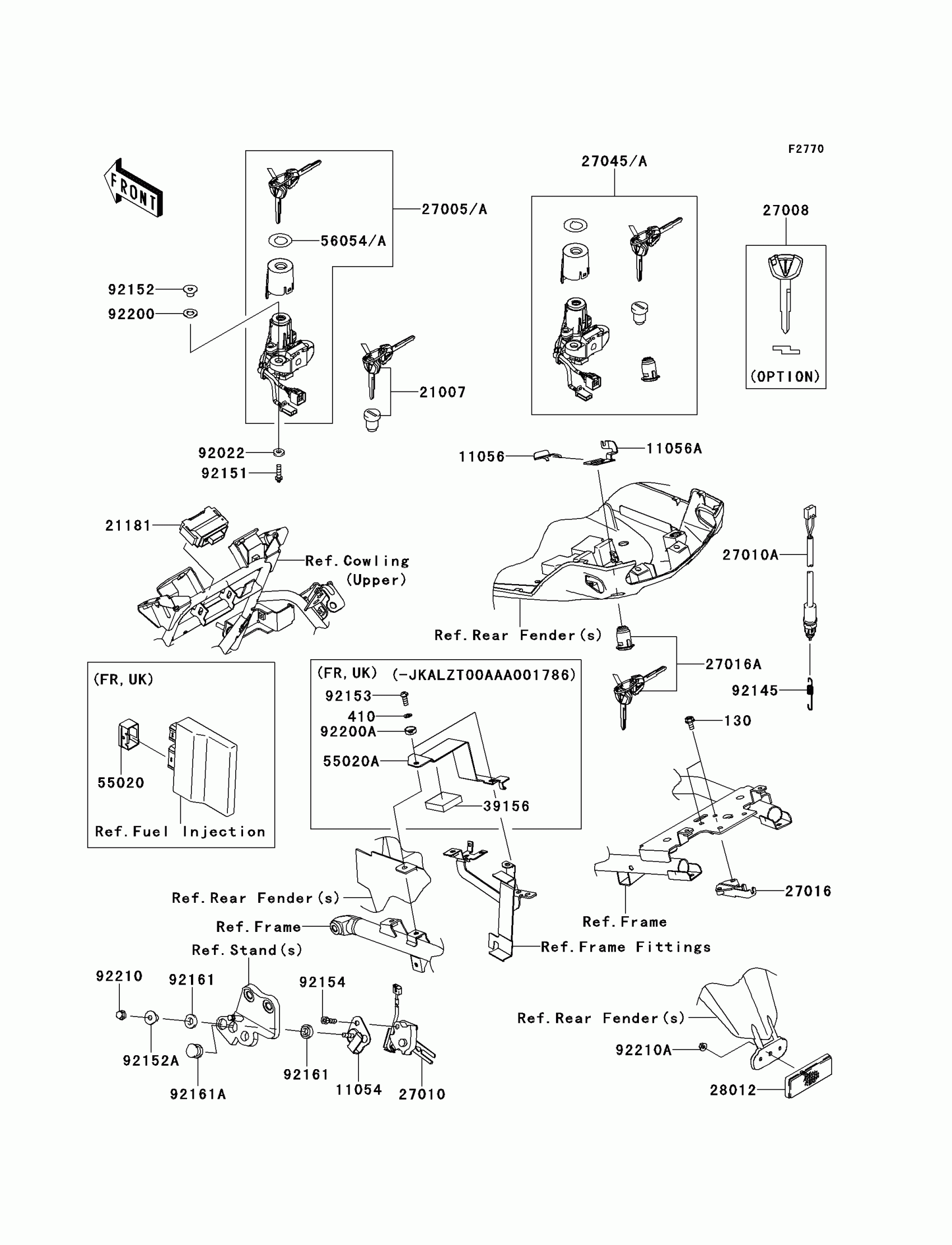

Find the part on the Ignition Switch diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Versys® 1000 (European) Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,SIDE STAND SWITCH

11054-1904

1
Out of stock

11056

BRACKET,CLASP

11056-0238

1
Out of stock

11056A

BRACKET,KEY CYLINDER

11056-1952

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5068

1
Out of stock

21181

AMPLIFIER,IMMOBI

21181-0056

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-0574

1
Out of stock

27008

KEY-LOCK,BLANK,IMMOBI,SUB

27008-0065

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0112

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1486

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5373

1
Out of stock

27045A

SWITCH-ASSY

27045-5499

1
Out of stock

28012

REFLECTOR-REFLEX

28012-1077

1
Out of stock

56054A

MARK,IGNITION SWITCH

56054-1102

1
Out of stock

92022

WASHER,7X15.5X3

92022-312

1
Out of stock

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

1
Out of stock

92151

BOLT,TORX,6X22

92151-1946

1
Out of stock

92152

COLLAR

92152-0423

1
Out of stock

92152A

COLLAR

92152-1074

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-0031

1
Out of stock

92161

DAMPER

92161-0117

1
Out of stock

92161A

DAMPER

92161-0118

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

92200

WASHER,10.2X20X1.6

92200-0328

1
Out of stock

92210

NUT,CAP,6MM

92210-0003

1
Out of stock

92210A

NUT,FLANGED,5MM

92210-0007

1
Out of stock

55020

GUARD,ECU CONNECTOR

55020-0782

1
Out of stock
