2014 Kawasaki Versys® 1000 (European) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2014 Kawasaki Versys® 1000 (European), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

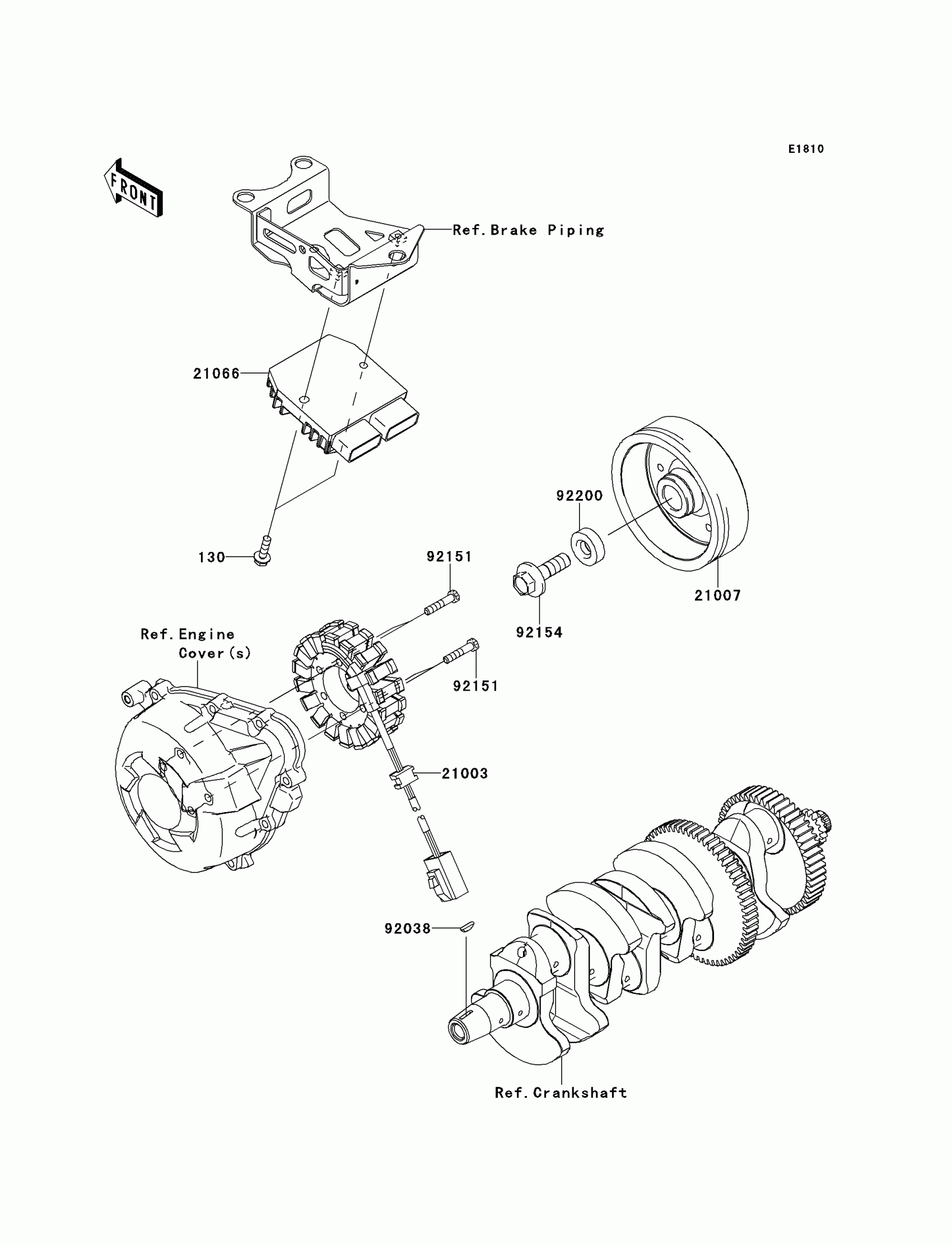

2014 Kawasaki Versys® 1000 (European) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

21003

STATOR

21003-0129

1
Out of stock

21007

ROTOR

21007-0556

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0022

1
Out of stock

92038

KEY

92038-1060

1
Out of stock

92151

BOLT,6X30

92151-1626

1
Out of stock

92154

BOLT,FLANGED,12X40

92154-0347

1
Out of stock

92200

WASHER,12X34X9

92200-0369

1
Out of stock
