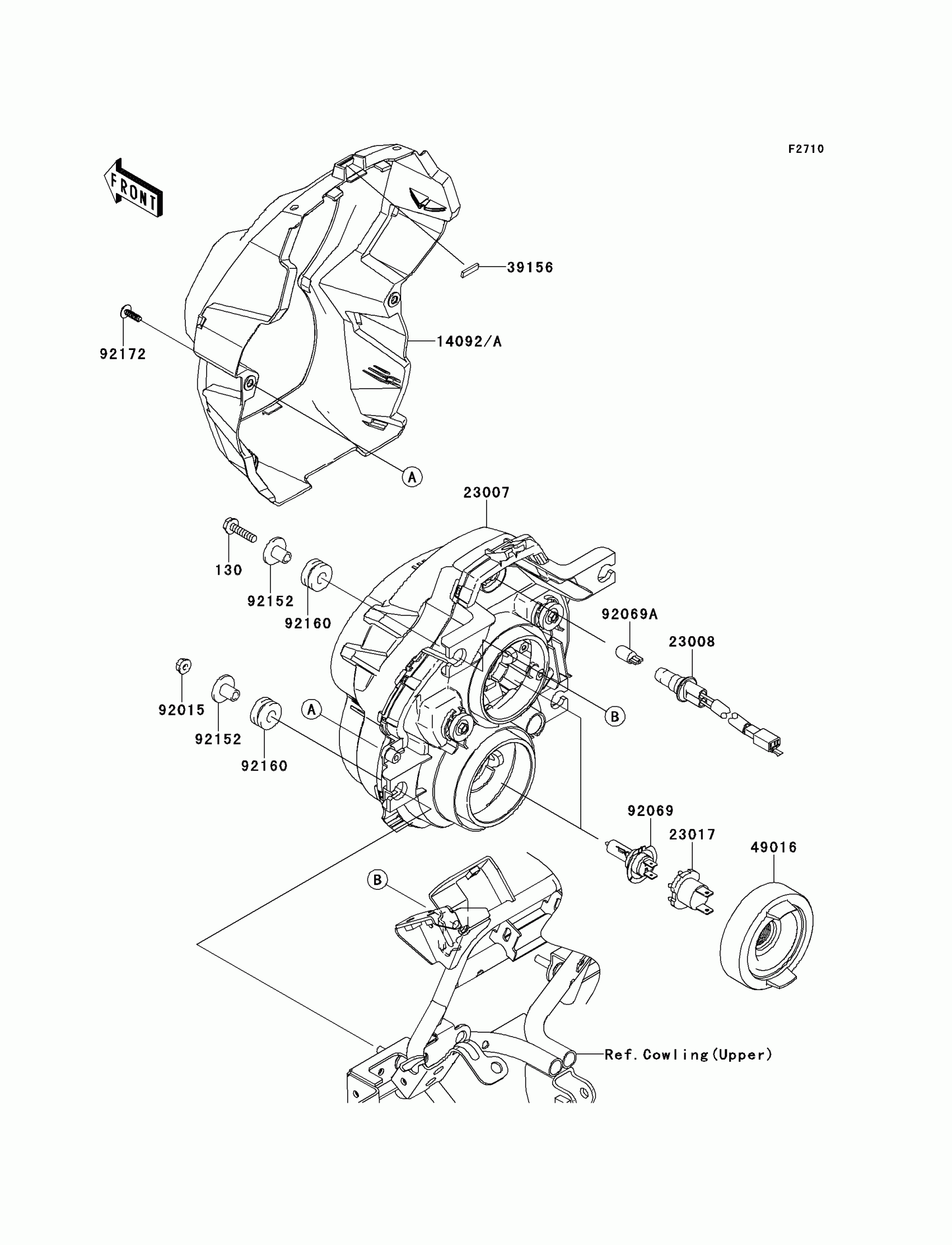

Kawasaki VERSYS® 1000 (European) Headlight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X25

130BA0625

$1.20

14092

COVER,HEAD LAMP,F.S.BLACK

14092-0933-18T

Unavailable

23007

LENS-COMP,HEAD LAMP

23007-0171

$372.64

23008

SOCKET-ASSY,CITY LIGHT

23008-0134

$28.86

23017

SOCKET,HEAD LAMP

23017-0003

$15.78

39156

PAD,5.5X17.5,T2

39156-0811

$1.24

49016

COVER-SEAL,HEAD LAMP

49016-0075

$19.68

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92069

BULB,12V 55W,H7

92069-0053

$42.86

92069A

BULB,12V 5W

92069-1016

$6.52

92152

COLLAR

92152-1603

$6.69

92160

DAMPER

92160-1162

$5.00

92172

SCREW,TAPPING,5X16

92172-0175

$1.78
