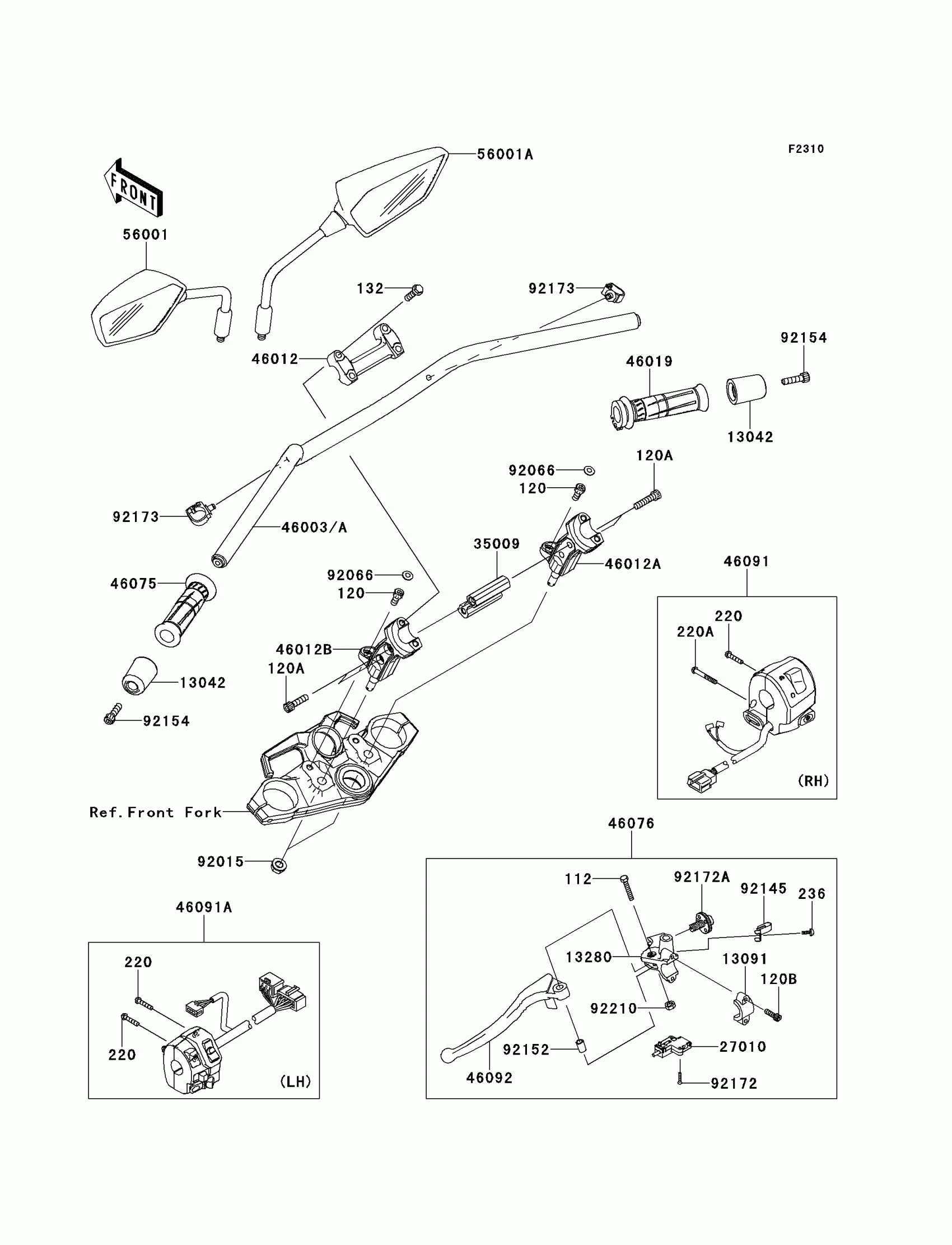

Kawasaki VERSYS® 1000 (European) Handlebar Diagram
#
Description
Price
112
BOLT-UPSET,6X30
112BB0630
$1.86
120
BOLT-SOCKET,8X18
120CA0818
$2.80
120A
BOLT-SOCKET,8X30
120CA0830
$2.80
120B
BOLT-SOCKET,6X20
120CB0620
$1.22
132
BOLT-FLANGED-SMALL,8X30
132BA0830
$4.45
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220A
SCREW-PAN-CROS,5X40
220AB0540
$2.06
236
SCREW-PAN-WSP-CROS,4X10
236AB0410
$1.52
13042
WEIGHT,HANDLE
13042-5007
$51.69
13091
HOLDER,CLUTCH LEVER
13091-1624
$35.87
13280
HOLDER,CLUTCH LEVER
13280-0017
$51.43
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
35009
BRACE,HANDLE,F.S.BLACK
35009-0074-18R
$64.86
46003A
HANDLE,F.S.BLACK
46003-0591-18R
$163.03
46012
HOLDER-HANDLE,TOP,F.S.BLACK
46012-0308-18R
$50.33
46012A
HOLDER-HANDLE,RH,F.BLACK
46012-0310-18R
$112.94
46012B
HOLDER-HANDLE,LH,F.BLACK
46012-0319-18R
$112.94
46019
GRIP-ASSY,THROTTLE
46019-0020
$42.73
46075
GRIP,LH
46075-0068
$18.92
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0005
$108.97
46091
HOUSING-ASSY-CONTROL,RH
46091-0252
$150.02
46091A
HOUSING-ASSY-CONTROL,LH
46091-0253
$304.27
46092
LEVER-GRIP,CLUTCH
46092-0003
$21.68
56001
MIRROR-ASSY,LH
56001-0241
Unavailable
56001A
MIRROR-ASSY,RH
56001-0242
Unavailable
92015
NUT,LOCK,FLANGED,10MM
92015-1717
$9.91
92066
PLUG
92066-1216
$4.65
92145
SPRING
92145-1286
$5.95
92152
COLLAR
92152-0103
$19.00
92154
BOLT,SOCKET,8X30
92154-0502
$3.74
92172
SCREW,3X16
92172-0183
$2.15
92172A
SCREW,ADJUST NUT
92172-1060
$39.14
92173
CLAMP
92173-0861
$3.02
92210
NUT,LOCK,6MM
92210-0006
$2.46
