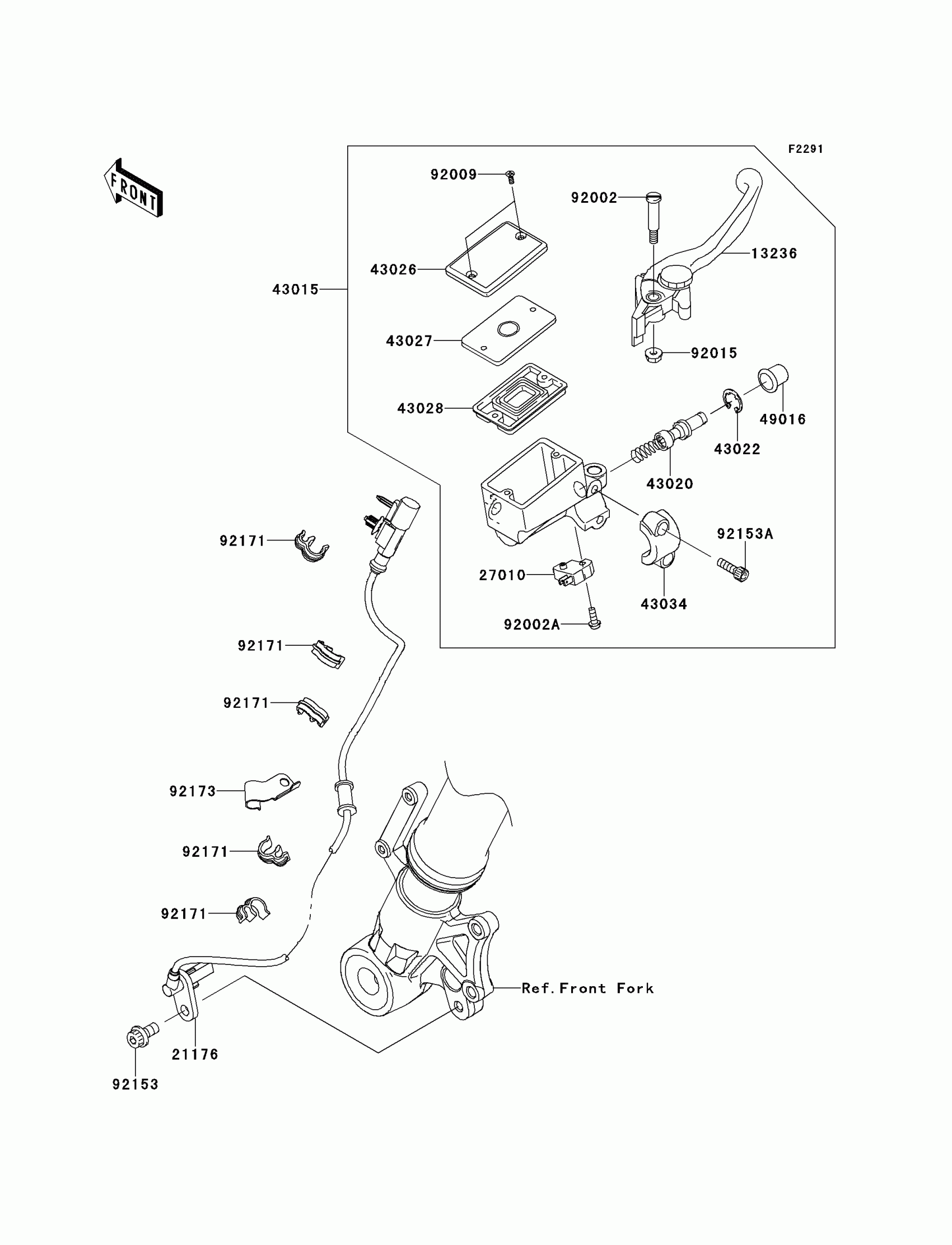

Kawasaki VERSYS® 1000 (European) Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP,FRONT BRAKE

13236-1337

$64.34

21176

SENSOR,SPEED,FR

21176-0721

$138.10

27010

SWITCH,BRAKE

27010-0025

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0020

$409.45

43020

PISTON-COMP-BRAKE,FR

43020-1056

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1076

$42.62

43027

PLATE-DIAPHRAGM

43027-1055

$7.81

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

$22.90

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1053

$35.87

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92153

BOLT,SOCKET,8X16

92153-0327

$6.28

92153A

BOLT,SOCKET,6X20

92153-0417

$7.65

92171

CLAMP,BRAKE HOSE

92171-1819

$5.54

92173

CLAMP

92173-0801

$5.33
