Description

Price

120

BOLT-SOCKET,8X40

120CB0840

$4.76

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

220

SCREW-PAN-CROS,5X16

220AB0516

$1.74

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP,ECU

23062-0768

$29.79

32052

BRACKET-TANK

32052-0719

$39.06

35063

STAY,CARRIER,LH,F.S.BLACK

35063-0831-18R

Unavailable

35063A

STAY,CARRIER,RH,F.S.BLACK

35063-0832-18R

Unavailable

35063B

STAY,STEP,FR,RH

35063-0838

Unavailable

35063C

STAY,STEP,FR,LH

35063-0843

$132.94

35063D

STAY,STEP,RR,LH,F.S.BLACK

35063-0862-18R

$213.69

35063F

STAY,STEP,RR,RH,F.S.BLACK

35063-0881-18R

$213.69

39042

CROSSMEMBER

39042-0554

$8.51

39156

PAD,LH

39156-0660

$9.64

39156A

PAD,RH

39156-0661

$9.64

53029

CARRIER

53029-0076

Unavailable

92009

SCREW,TAPPING

92009-1113

$3.92

92022

WASHER

92022-1737

$5.52

92066

PLUG

92066-1216

$4.65

92072

BAND,L=168

92072-1306

$13.75

92152

COLLAR,11X30X6

92152-1000

$4.95

92152A

COLLAR,6.5X10X6.2

92152-1511

$4.44

92152B

COLLAR,8.8X12X25.6

92152-1594

$6.26

92154

BOLT,SOCKET,6X22

92154-0787

$2.67

92154A

BOLT,SOCKET,8X37

92154-0799

$9.59

92154B

BOLT,SOCKET,8X40

92154-1001

$4.10

92154C

BOLT,FLANGED,10X35

92154-1048

$7.58

92161

DAMPER,11.8X26X15

92161-1000

$3.65

92161A

DAMPER

92161-1084

$2.67

92200

WASHER,8.4X16X1.6

92200-0807

$4.41

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$11.95

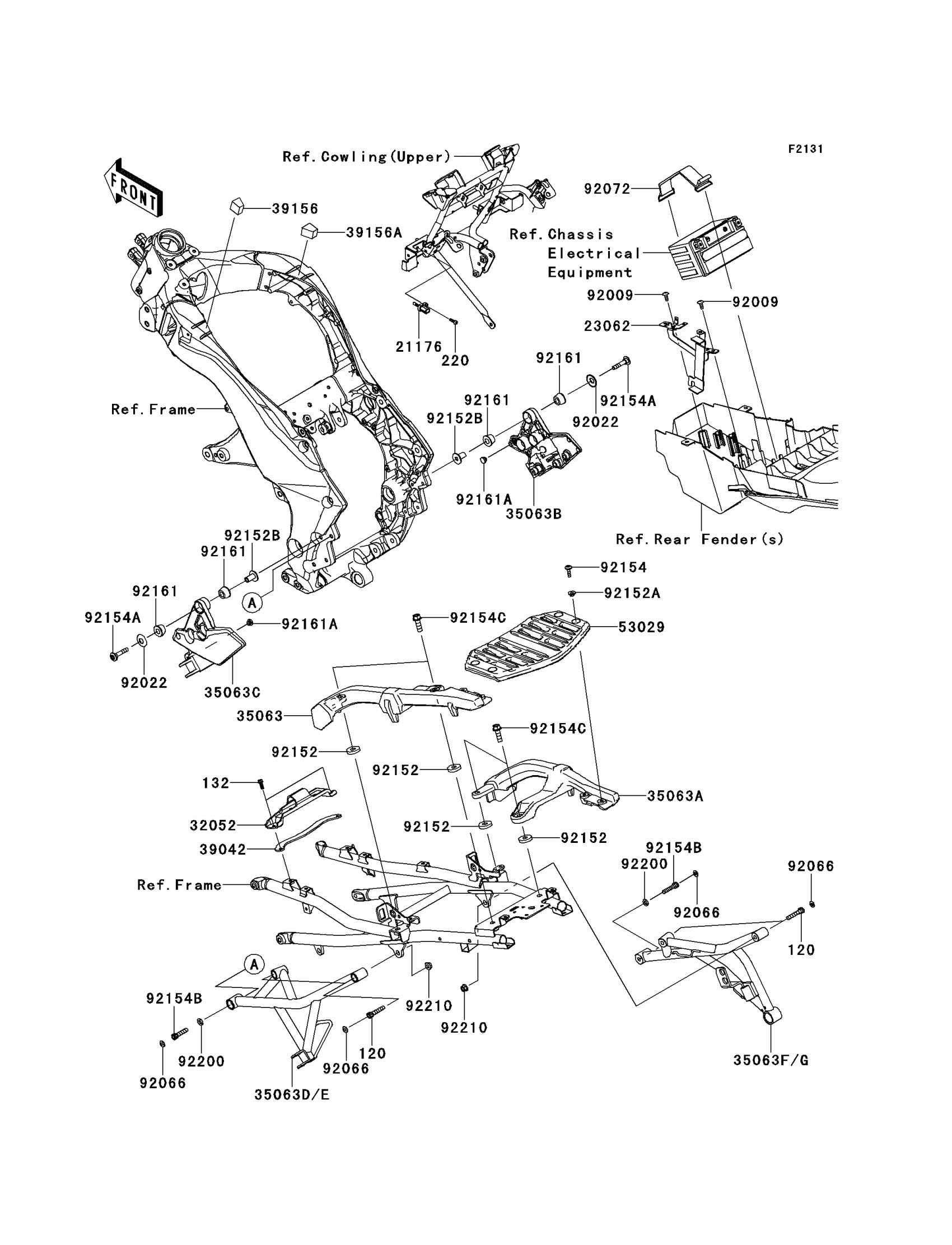

Kawasaki VERSYS® 1000 (European) Frame Fittings Diagram

BOLT-SOCKET,8X40

BOLT-FLANGED-SMALL,6X16

SCREW-PAN-CROS,5X16

SENSOR,AIR TEMPERATURE

BRACKET-COMP,ECU

BRACKET-TANK

STAY,CARRIER,LH,F.S.BLACK

STAY,CARRIER,RH,F.S.BLACK

STAY,STEP,FR,RH

STAY,STEP,FR,LH

STAY,STEP,RR,LH,F.S.BLACK

STAY,STEP,RR,RH,F.S.BLACK

CROSSMEMBER

PAD,LH

PAD,RH

CARRIER

SCREW,TAPPING

WASHER

PLUG

BAND,L=168

COLLAR,11X30X6

COLLAR,6.5X10X6.2

COLLAR,8.8X12X25.6

BOLT,SOCKET,6X22

BOLT,SOCKET,8X37

BOLT,SOCKET,8X40

BOLT,FLANGED,10X35

DAMPER,11.8X26X15

DAMPER

WASHER,8.4X16X1.6

NUT,FLANGED,LOCK,8MM
