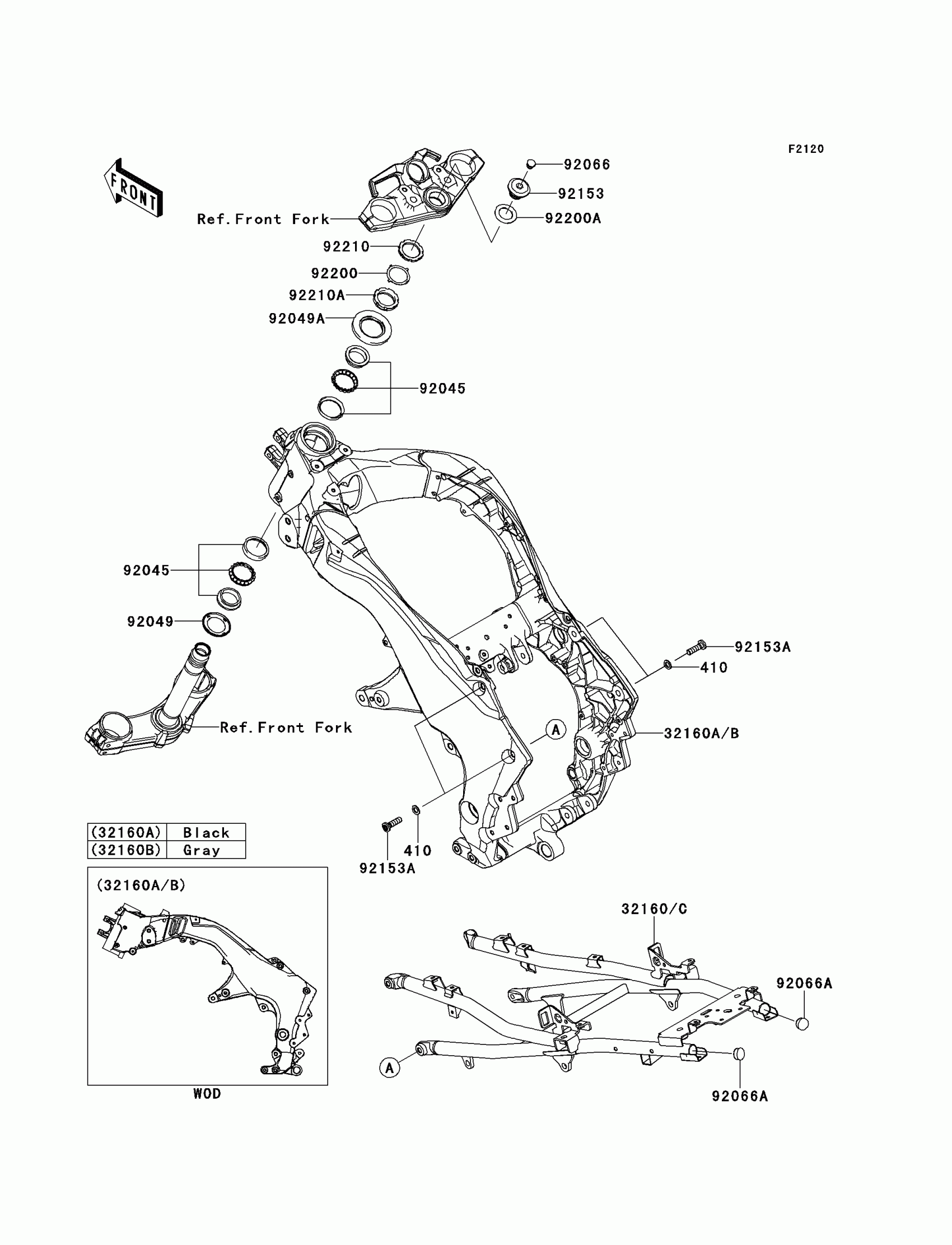

Kawasaki VERSYS® 1000 (European) Frame Diagram

Description

Price

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

32160A

FRAME-COMP,MAIN,F.S.BLACK

32160-0643-18R

$2,274.93

32160C

FRAME-COMP,RR,F.S.BLACK

32160-0652-18R

Unavailable

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$45.69

92049

SEAL-OIL,DS35X55X4

92049-0022

$17.39

92049A

SEAL-OIL,MX043N3

92049-0091

$21.36

92066

PLUG

92066-0071

$3.35

92066A

PLUG

92066-0749

$3.39

92153

BOLT,26MM

92153-0474

$28.76

92153A

BOLT,SOCKET,10X35

92153-1442

$7.24

92200

WASHER

92200-0036

$5.00

92200A

WASHER,27X42X2.3

92200-0081

$3.74

92210

NUT,STEERING STEM 35MM

92210-0062

$13.18

92210A

NUT,STEERING STEM,35MM

92210-0077

$18.37
