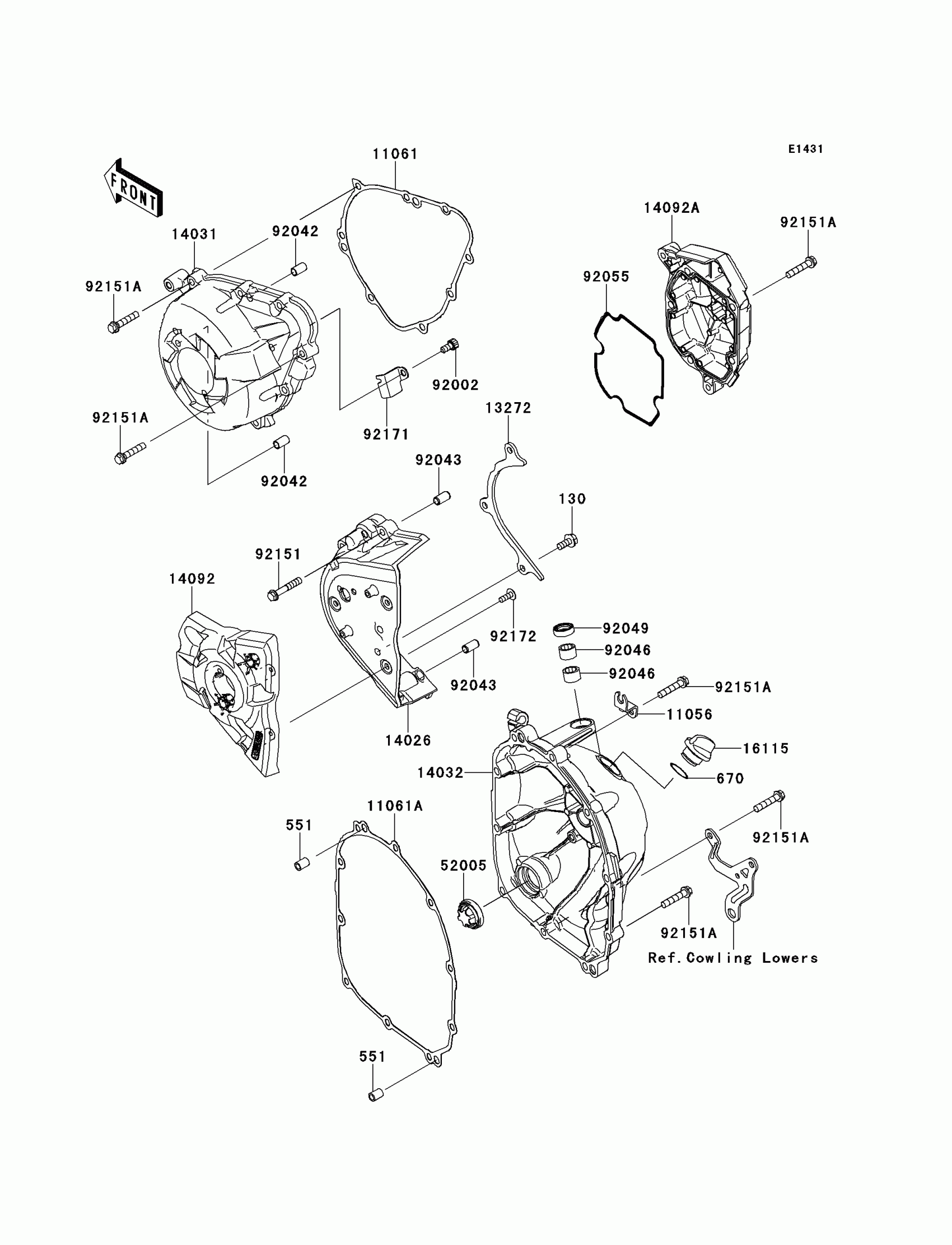

Kawasaki VERSYS® 1000 (European) Engine Cover(s) Diagram

Description

Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,20MM

670B2020

$1.22

11056

BRACKET

11056-0787

$3.87

11061

GASKET,GENERATOR COVER

11061-0403

$17.63

11061A

GASKET,CLUTCH COVER

11061-0404

$23.78

13272

PLATE

13272-0859

$15.62

14026

COVER-CHAIN

14026-0093

$160.67

14031

COVER-GENERATOR

14031-0557

$253.42

14032

COVER-CLUTCH

14032-0562

Unavailable

14092

COVER,OUTER

14092-0032

$15.47

14092A

COVER,PULSER

14092-0819

$56.64

16115

CAP-OIL FILLER

16115-1053

$12.20

52005

GAUGE

52005-1120

$22.80

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92055

RING-O,PULSER COVER

92055-0199

$9.58

92151

BOLT,6X35

92151-1135

$4.18

92151A

BOLT,6X30

92151-1873

$4.67

92171

CLAMP

92171-0708

$4.09

92172

SCREW,TAPPING,5X14

92172-0265

$1.34
