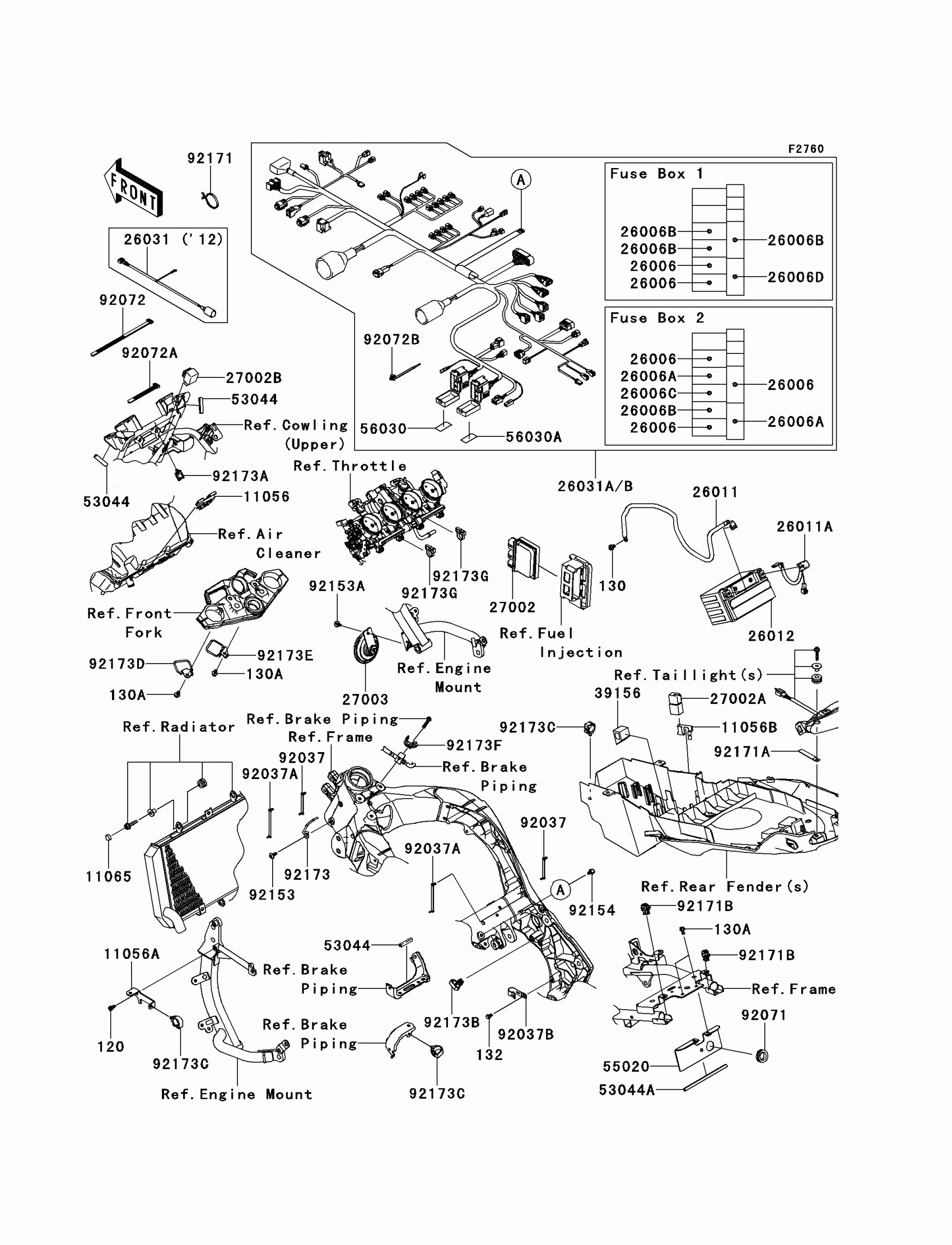

Kawasaki VERSYS® 1000 (European) Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,AIR BOX

11056-1132

$7.77

11056A

BRACKET,ENGINE

11056-1478

$6.26

11056B

BRACKET,RELAY

11056-1735

$29.44

11065

CAP,BOLT

11065-0752

$2.30

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0737

$51.09

26011A

WIRE-LEAD,BATTERY(+)

26011-0758

$54.27

26012

BATTERY,YTX9-BS,12V 8AH

26012-0088

Unavailable

26031B

HARNESS,MAIN

26031-1506

$992.88

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0066

$73.16

39156

PAD

39156-0812

$7.51

53044

TRIM,L=40

53044-0012

$2.97

53044A

TRIM,GUARD

53044-0558

$3.16

55020

GUARD,HARNESS

55020-0857

$16.42

56030

LABEL,FUSE BOX 1

56030-0737

$4.37

56030A

LABEL,FUSE BOX 2

56030-0738

$4.58

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037B

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92071

GROMMET

92071-3704

$6.16

92072

BAND,L=250

92072-1237

$2.14

92072A

BAND,L=140

92072-1293

$7.11

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92153A

BOLT,SOCKET,6X12

92153-1948

$1.78

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92171

CLAMP,CABLE

92171-0226

$8.03

92171A

CLAMP,L=60

92171-0652

$2.61

92171B

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP

92173-0182

$7.58

92173A

CLAMP

92173-0229

$2.15

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

92173B

CLAMP,CLIP

92173-0799

$14.90

92173C

CLAMP

92173-0861

$3.02

92173D

CLAMP,UPP BRACKET,LH

92173-0874

$19.95

92173E

CLAMP,UPP BRACKET,RH

92173-0875

$19.95

92173F

CLAMP

92173-0880

$17.84

92173G

CLAMP,SNAPPER

92173-0970

$4.72
