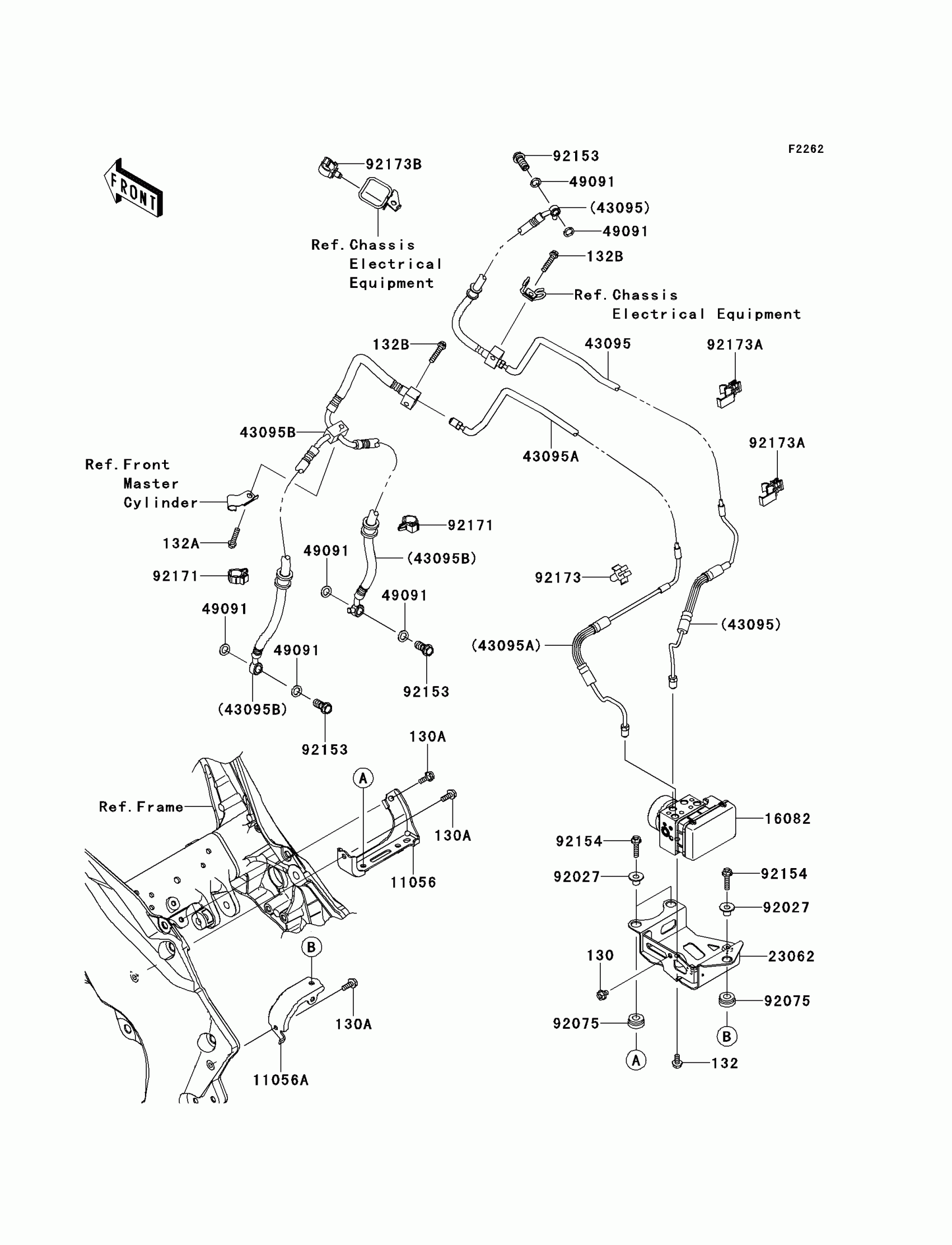

Kawasaki VERSYS® 1000 (European) Brake Piping Diagram

Description

Price

130

BOLT-FLANGED,6X8

130BA0608

$0.69

130A

BOLT-FLANGED,6X16

130BA0616

$0.97

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

132A

BOLT-FLANGED-SMALL,6X25

132BB0625

$1.98

132B

BOLT-FLANGED-SMALL,6X30

132BB0630

$3.14

11056

BRACKET,REGULATOR

11056-0169

$23.63

11056A

BRACKET

11056-1424

Unavailable

16082

PUMP-ASSY-OIL,ABS

16082-0067

$1,689.58

23062

BRACKET-COMP,ABS UNIT

23062-0749

$39.44

43095

HOSE-BRAKE,FR M/C-HU

43095-0652

$185.71

43095A

HOSE-BRAKE,FR CALIPER-HU

43095-0723

$119.66

43095B

HOSE-BRAKE,3WAY

43095-0725

$189.15

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92153

BOLT,OIL,L=23

92153-0627

$4.15

92154

BOLT,FLANGED,6X25

92154-0498

$1.66

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92173

CLAMP

92173-0088

$3.20

92173A

CLAMP,CLIP

92173-0799

$14.14

92173B

CLAMP,HOLDER CLIP

92173-0868

$2.11
