2016 Kawasaki Versys® 1000 ABS Water Pipe Diagram

← All diagrams

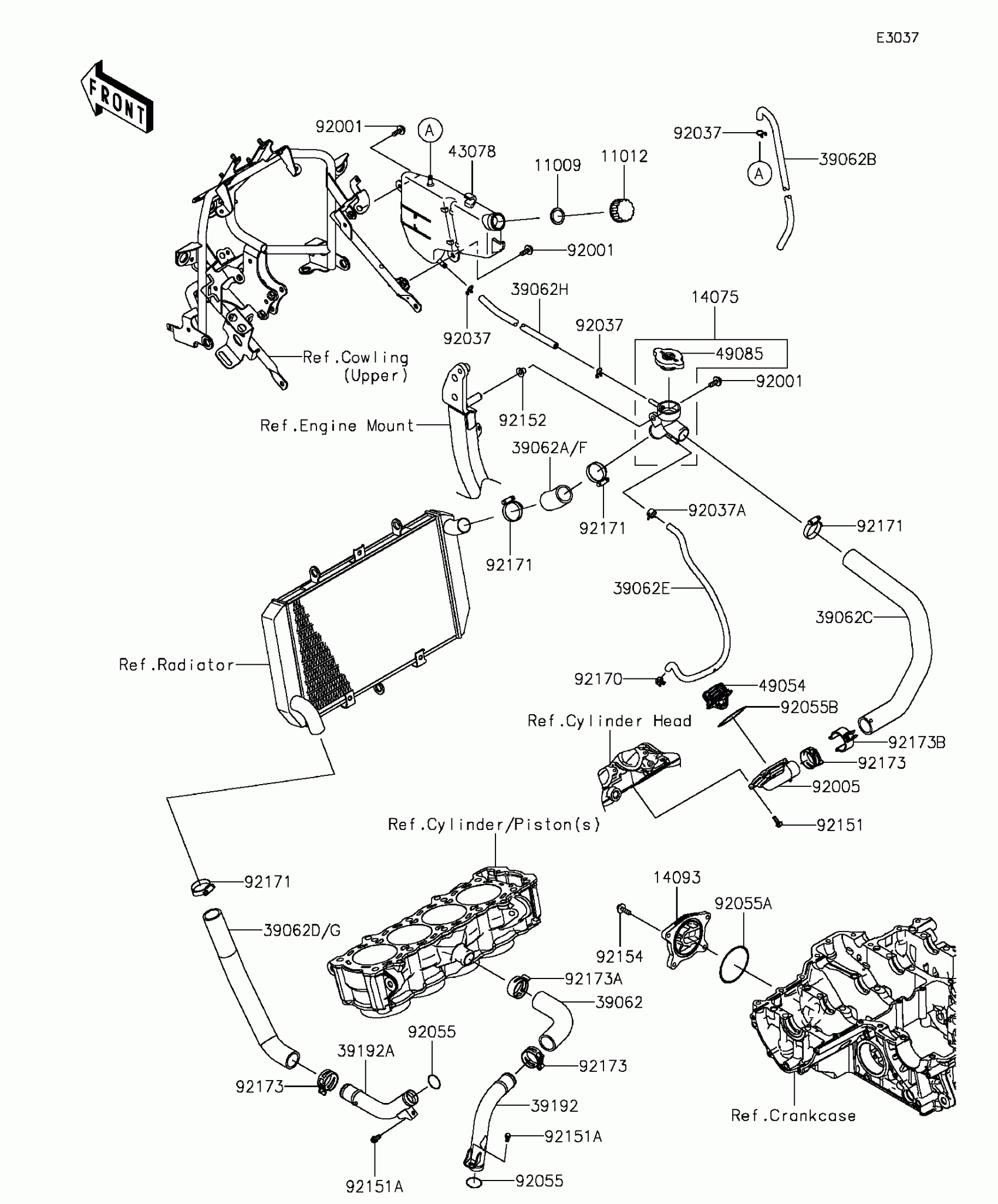

Find the part on the Water Pipe diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14075

CAP-ASSY

14075-0028

1

$157.02

In stock

14093

COVER

14093-0144

1

$40.56

In stock

39062

1

$15.76

In stock

39062B

1

$16.07

In stock

39062C

1

$45.05

In stock

39062E

1

$10.88

In stock

39062F

1

$7.41

In stock

39062G

1

$49.95

In stock

39062H

1

$21.68

In stock

39192

1

$44.68

In stock

39192A

1

$44.78

In stock

43078

RESERVOIR

43078-0074

1

$45.75

In stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

92001

BOLT,6X18

92001-1342

1
Out of stock

92005

FITTING,THERMO CAP

92005-0076

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92055

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055A

RING-O,63.3MM

92055-0739

1

$3.26

In stock

92055B

1

$7.20

In stock

92151

BOLT,5X14

92151-1764

1

$2.00

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92152

COLLAR,6.3X8.3X9.2

92152-0237

1

$4.47

In stock

92154

BOLT,FLANGED,6X22

92154-0403

1

$2.68

In stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92171

CLAMP

92171-0179

1

$6.51

In stock

92173

CLAMP,34MM

92173-1360

1

$3.16

In stock

92173A

CLAMP,35.5MM

92173-1432

1

$2.92

In stock

92173B

CLAMP

92173-1438

1

$3.17

In stock
