2016 Kawasaki Versys® 1000 ABS Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

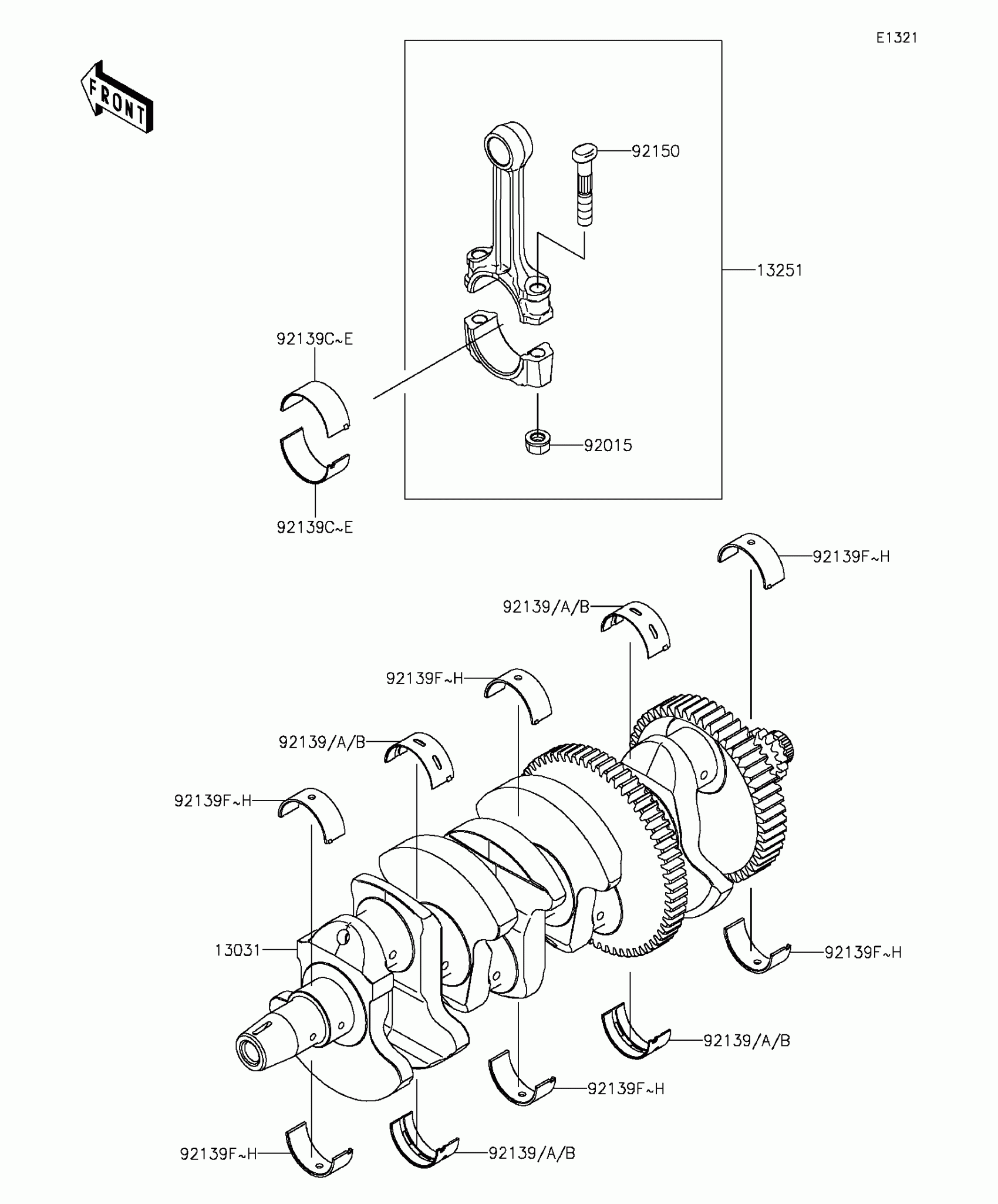

2016 Kawasaki Versys® 1000 ABS Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0710

1

$1,292.25

In stock

13251

ROD-ASSY-CONNECTING,HH

13251-0027-HH

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92139

—

$15.43

In stock

92139A

1

$15.43

In stock

92139B

—

$18.34

In stock

92139C

—

$20.47

In stock

92139D

1

$20.47

In stock

92139E

—

$20.47

In stock

92139F

—

$19.95

In stock

92139G

1

$19.95

In stock

92139H

—

$19.95

In stock

92150

1

$13.83

In stock
