Handlebar

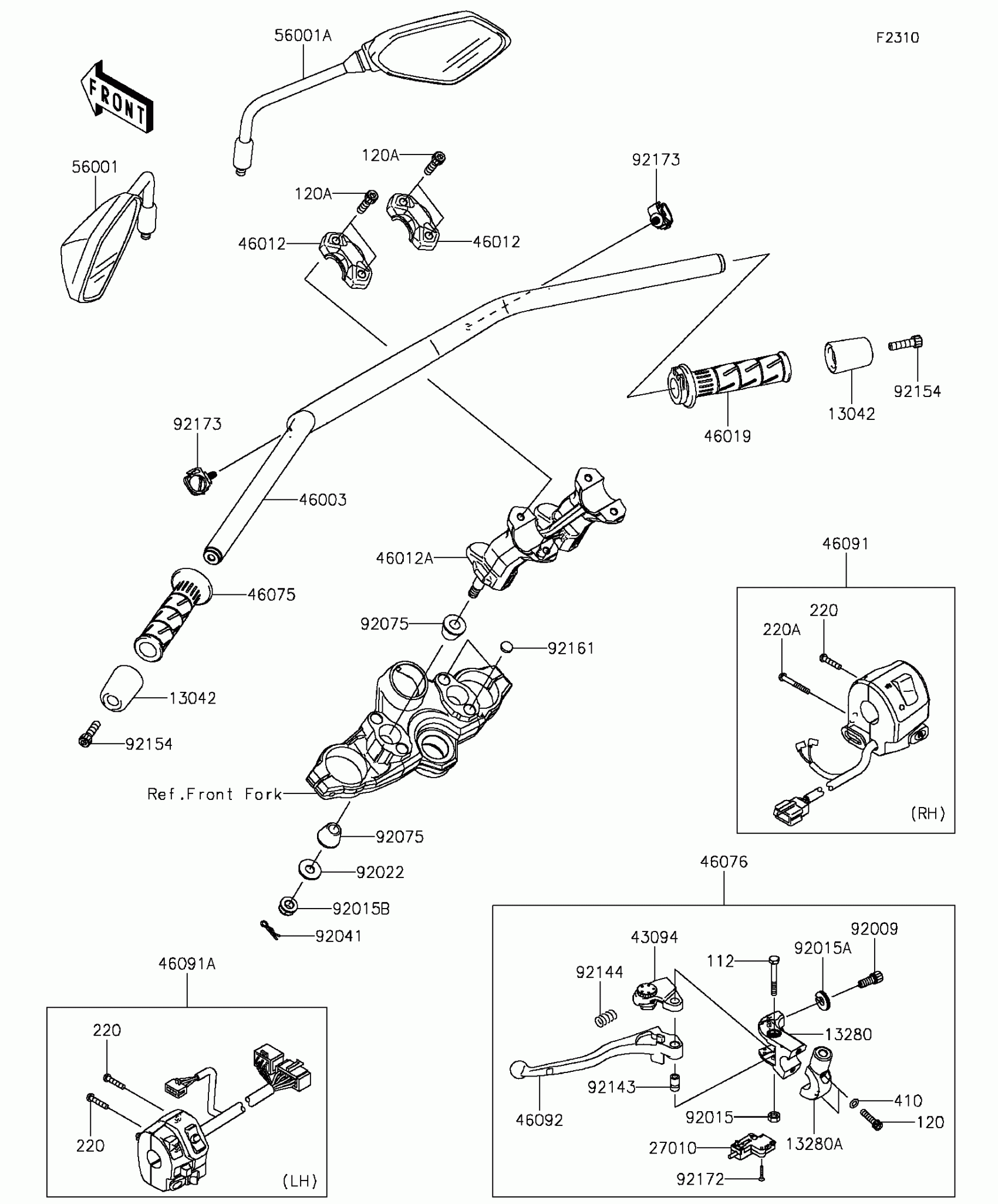

Kawasaki Versys® 1000 ABS Handlebar Diagram
#
Description
Price
112
BOLT-UPSET,6X45
112AB0645
$3.74
120
BOLT-SOCKET,6X25
120CB0625
$2.62
120A
BOLT-SOCKET,8X30
120CC0830
$3.71
13042
WEIGHT,HANDLE
13042-5007
$51.69
13280
HOLDER,CLUTCH LEVER
13280-0306
$53.68
13280A
HOLDER,CLUTCH LEVER
13280-0307
$36.45
220
SCREW-PAN-CROS,5X25
220AB0525
$3.52
220A
SCREW-PAN-CROS,5X40
220AB0540
$2.06
27010
SWITCH,CLUTCH,BLACK
27010-1094
$28.59
410
WASHER-PLAIN-SMALL,6MM
410AB0600
$0.77
43094
ADJUSTER,CLUTCH LEVER
43094-1053
$36.12
46003
HANDLE,F.S.BLACK
46003-0627-18R
$267.63
46012
HOLDER-HANDLE,UPP,F.S.BLACK
46012-0353-18R
$104.63
46012A
HOLDER-HANDLE,LWR,F.S.BLACK
46012-0354-18R
$137.41
46019
GRIP-ASSY,THROTTLE
46019-0060
$32.34
46075
GRIP,HANDLE,LH
46075-0564
$20.01
46076
LEVER-ASSY-GRIP,CLUTCH
46076-0052
$108.87
46091
HOUSING-ASSY-CONTROL,RH
46091-0252
$150.02
46091A
HOUSING-ASSY-CONTROL,LH
46091-0253
$304.27
46092
LEVER-GRIP,CLUTCH
46092-0031
$25.63
56001
MIRROR-ASSY,LH
56001-0297
$78.40
56001A
MIRROR-ASSY,RH
56001-0298
$78.40
92009
SCREW,CABLE ADJUST,8MM,BLACK
92009-1134
$15.16
92015
NUT,LOCK,6MM,BLACK
92015-1191
Unavailable
92015A
NUT,CABLE ADJUST LOCK,8MM,BLK
92015-1197
$9.91
92015B
NUT,LOCK,FLANGED,10MM
92015-1717
$9.91
92022
WASHER,10.5X26X2.3,BLACK
92022-1396
$3.21
92041
COTTER,8MM
92041-1060
$3.57
92075
DAMPER,HANDLE HOLDER
92075-039
$4.69
92143
COLLAR
92143-1379
$9.51
92144
SPRING
92144-1467
$6.51
92154
BOLT,SOCKET,8X30
92154-0502
$3.74
92161
DAMPER,13X3
92161-1723
$1.97
92172
SCREW,3X16
92172-0183
$2.15
92173
CLAMP
92173-0861
$3.02
