2016 Kawasaki Versys® 1000 ABS Fuel Tank Diagram

← All diagrams

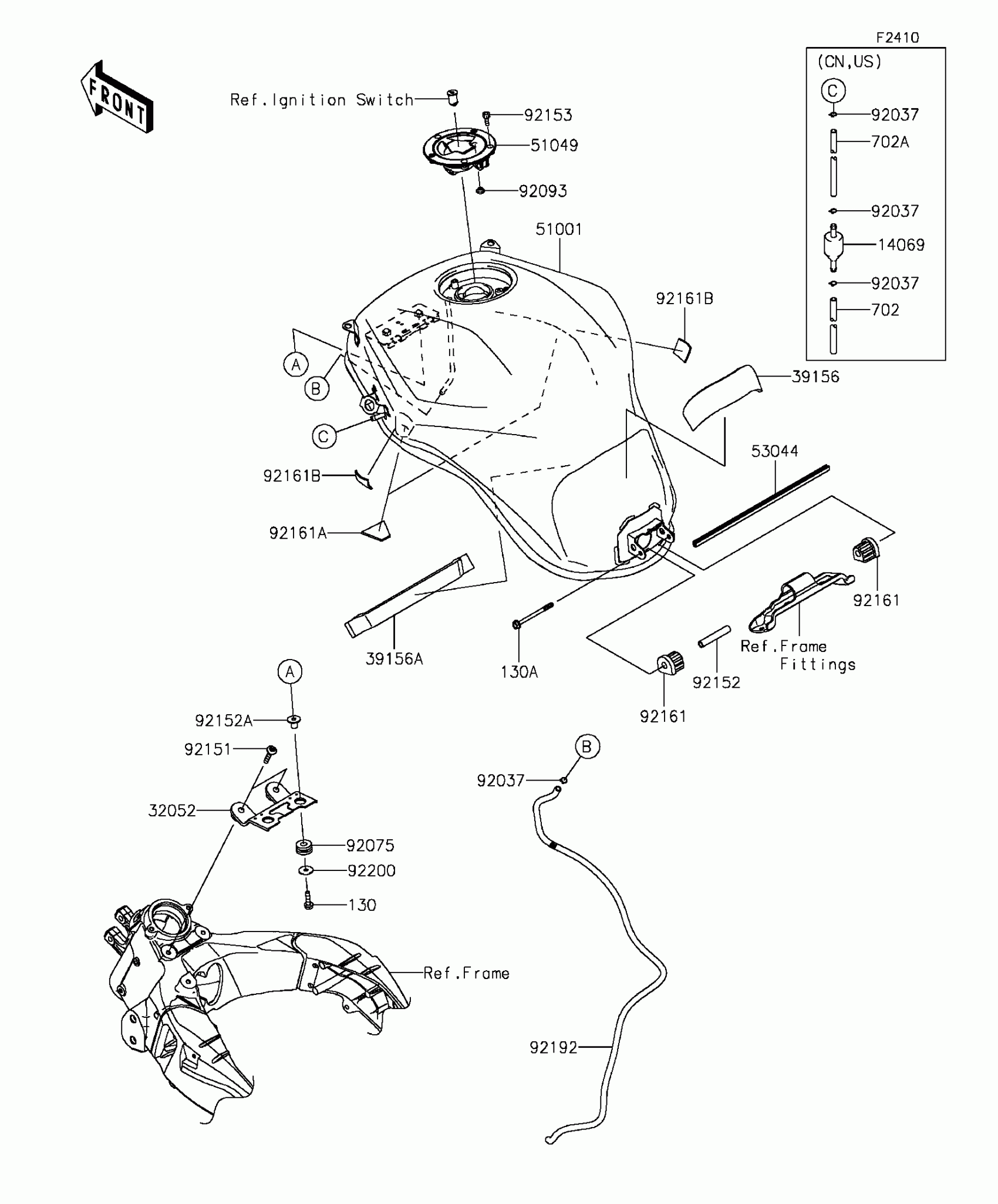

Find the part on the Fuel Tank diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130A

BOLT-FLANGED,6X70

130BB0670

1

$4.69

In stock

14069

BREATHER,TANK

14069-0008

1

$5.97

In stock

32052

BRACKET-TANK,F.S.BLACK

32052-0749-18R

1
Out of stock

39156

PAD,FUEL TANK,RR

39156-0982

1

$7.25

In stock

39156A

PAD,25X260X10

39156-1866

1

$3.27

In stock

51001

TANK-COMP-FUEL,M.S.BLACK

51001-0816-660

1
Out of stock

51049

CAP-TANK,FUEL

51049-0039

1
Out of stock

53044

TRIM

53044-1296

1

$11.49

In stock

702

TUBE-RUBBER,6X200

702A06200

1
Out of stock

702A

TUBE-RUBBER,6X9X450

702A06450

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,SOCKET,6X30

92151-1605

1
Out of stock

92152

COLLAR,6.8X10X60

92152-1182

1
Out of stock

92152A

COLLAR,6.3X9.5X14.1

92152-1847

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1616

1
Out of stock

92161

DAMPER,FUEL TANK,RR

92161-1330

1
Out of stock

92161A

DAMPER,30X48X3

92161-1768

1

$4.63

In stock

92161B

DAMPER,25X25X2

92161-1770

1

$1.10

In stock

92192

TUBE,6X9X926(30)

92192-1024

1
Out of stock

92200

WASHER,6.5X22X1.6

92200-1087

1
Out of stock

92037

CLAMP,TUBE

92037-010

1
Out of stock
