2016 Kawasaki Versys® 1000 ABS Fuel Pump Diagram

← All diagrams

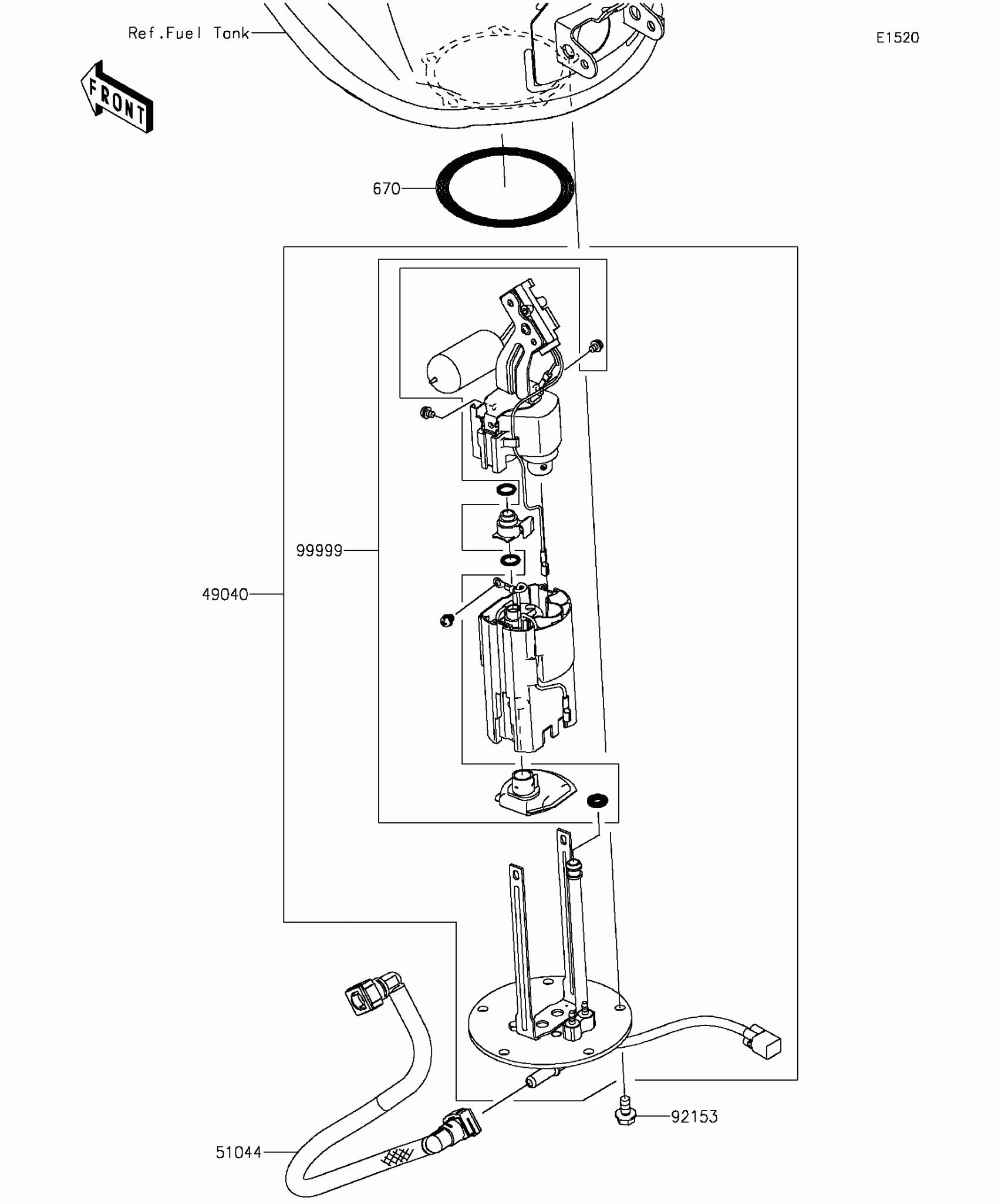

Find the part on the Fuel Pump diagram for your 2016 Kawasaki Versys® 1000 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Kawasaki Versys® 1000 ABS Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49040

PUMP-FUEL

49040-0709

1

$543.67

In stock

51044

TUBE-ASSY,FUEL

51044-0088

1

$132.83

In stock

670

O RING

670E5075

1

$21.46

In stock

92153

BOLT,FLANGED,6X12

92153-1295

1
Out of stock

99999

KIT,FUEL FILTER

99999-0522

1

$70.28

In stock
