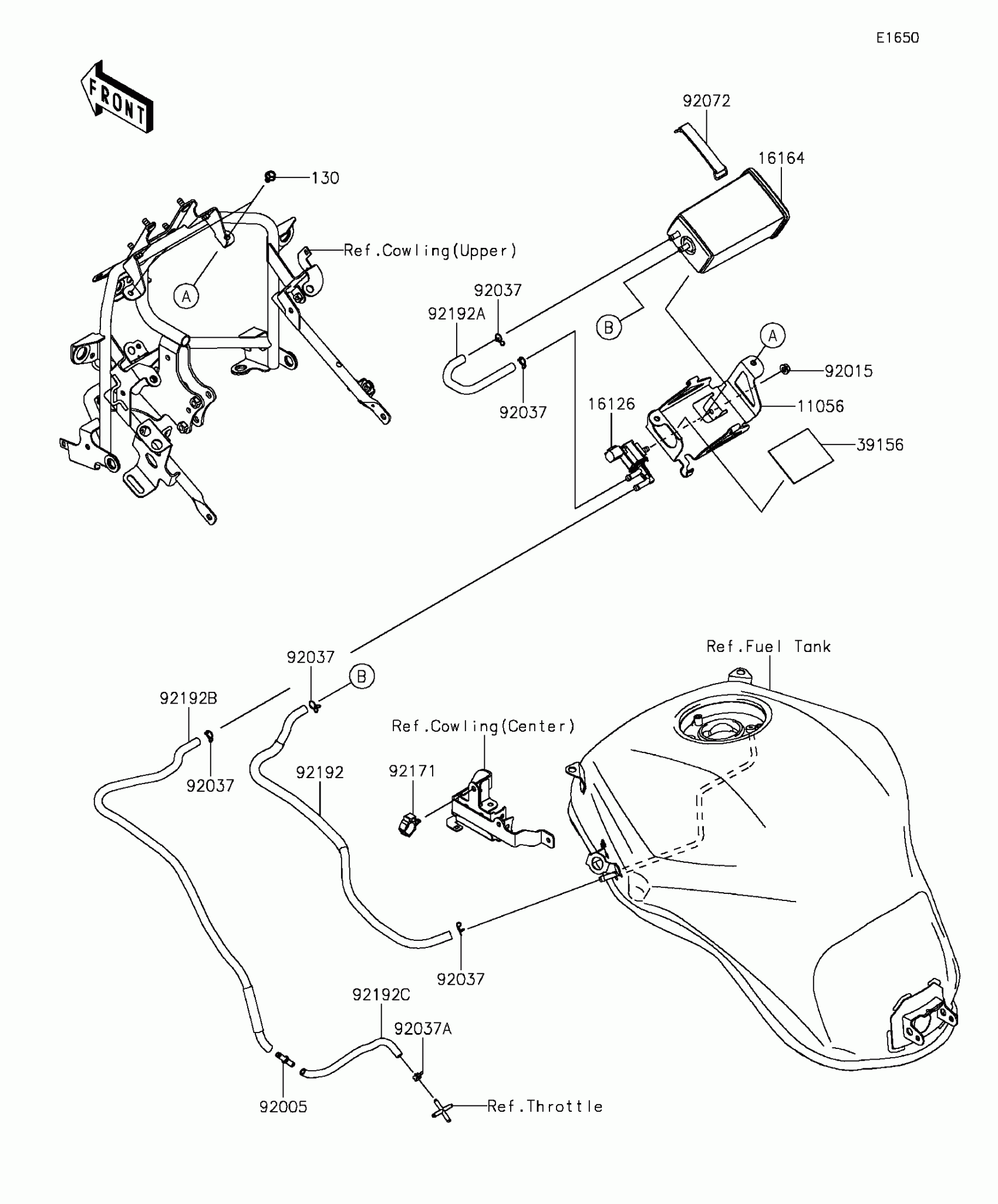

Kawasaki Versys® 1000 ABS Fuel Evaporative System(CA) Diagram

Description

Price

11056

BRACKET,CANISTER

11056-4205

$34.45

130

BOLT-FLANGED,6X10

130BA0610

$1.20

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0012

$149.73

39156

PAD,CANISTER BRACKET

39156-1871

$3.72

92005

FITTING

92005-0721

$9.09

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-1712

$5.00

92037A

CLAMP,7.8MM

92037-2116

$1.39

92072

BAND,TOOL,L=82

92072-1294

$14.90

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92192

TUBE,TANK-CANISTER

92192-1396

$47.12

92192A

TUBE,CANISTER-VALVE

92192-1397

$25.54

92192B

TUBE,VALVE-THB(VALVE SIDE)

92192-1398

$49.00

92192C

TUBE,VALVE-THB(THB SIDE)

92192-1399

$27.24
