Front Fork

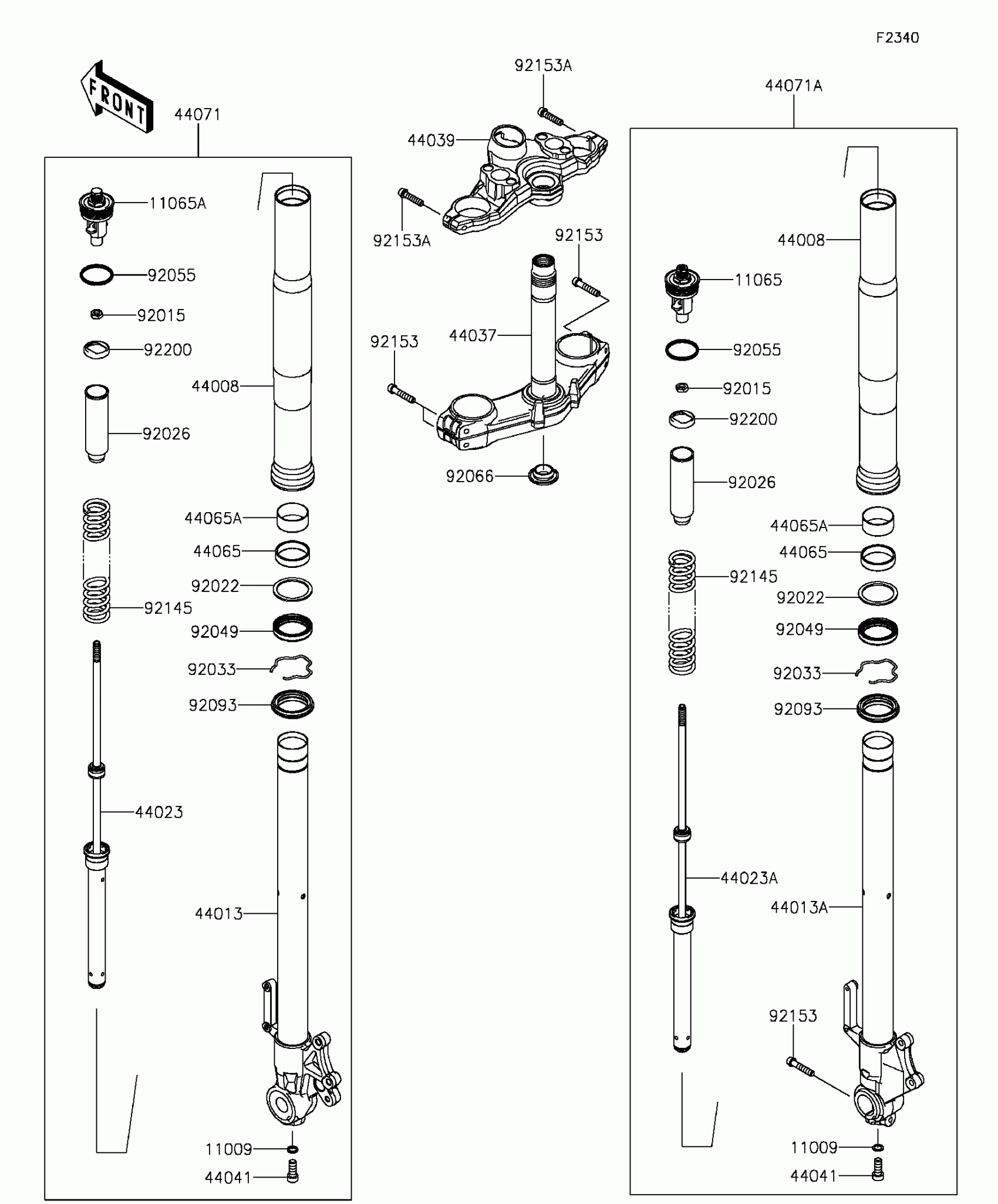

Kawasaki Versys® 1000 ABS Front Fork Diagram
#
Description
Price
11009
GASKET,10.5X15X1.5
11009-1325
Unavailable
11065
CAP,BLACK
11065-0745-50B
$184.12
11065A
CAP,BLACK
11065-0759-50B
$184.12
44008
PIPE-FORK OUTER,A.BLACK
44008-0075-499
$542.48
44013
PIPE-FORK INNER,LH,F.S.BLACK
44013-0242-18R
$511.34
44013A
PIPE-FORK INNER,RH,F.S.BLACK
44013-0243-18R
$511.34
44023
CYLINDER-SET-FORK,LH
44023-0129
$343.60
44023A
CYLINDER-SET-FORK,RH
44023-0130
$552.52
44037
HOLDER-FORK UNDER,F.S.BLACK
44037-0132-18R
$571.25
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0147-18R
$303.25
44041
BOLT,SOCKET,FORK CYLINDER
44041-040
$6.57
44065
BUSHING-FRONT FORK,SLIDE
44065-0056
$20.99
44065A
BUSHING-FRONT FORK,INNER PIPE
44065-1142
$18.82
44071
DAMPER-ASSY,FORK,LH,BLACK
44071-0995-50B
$959.08
44071A
DAMPER-ASSY,FORK,RH,BLACK
44071-0996-50B
$1,019.71
92015
NUT
92015-1795
$5.52
92022
WASHER
92022-1299
$8.58
92026
SPACER,FORK
92026-0045
$14.02
92033
RING-SNAP
92033-1077
$4.96
92049
SEAL-OIL,FORK OUTER TUBE
92049-1522
$23.16
92055
RING-O
92055-0145
$2.55
92066
PLUG
92066-0032
$11.66
92093
SEAL,FORK OUTER TUBE
92093-1480
$18.58
92145
SPRING
92145-1674
$127.11
92153
BOLT,SOCKET,8X40
92153-0506
$7.57
92153A
BOLT,SOCKET,8X35
92153-0907
$4.92
92200
WASHER
92200-0085
$7.63
