Description

Price

120

BOLT-SOCKET,8X40

120CB0840

$4.76

130

BOLT-FLANGED,10X35

130CA1035

$6.75

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

23062

BRACKET-COMP,ECU

23062-0768

$29.79

32052

BRACKET-TANK

32052-0719

$39.06

35063

STAY,CARRIER,LH,F.S.BLACK

35063-0971-18R

$87.31

35063A

STAY,CARRIER,RH,F.S.BLACK

35063-0972-18R

$87.31

35063B

STAY,STEP,LH,RR,F.S.BLACK

35063-0982-18R

$217.47

35063C

STAY,STEP,RH,RR,F.S.BLACK

35063-0983-18R

$217.47

35063D

STAY,STEP,RH,FR,F.S.BLACK

35063-0987-18R

$136.69

35063E

STAY,STEP,LH,FR,F.S.BLACK

35063-1273-18R

$143.08

39042

CROSSMEMBER

39042-0554

$8.51

39156

PAD,LH

39156-0660

$9.64

39156A

PAD,RH

39156-0661

$9.64

39156B

PAD,47X130X1

39156-1862

$9.68

39156C

PAD,30X250X0.5

39156-1873

$10.80

39156D

PAD,30X30X5

39156-1874

$1.84

39156E

PAD,30X90X5

39156-1875

$3.52

39156F

PAD,10X130X10

39156-1912

$2.68

39156G

PAD,10X30X10

39156-1939

$2.44

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59

46075

GRIP,TANDEM,LH,F.S.BLACK

46075-0596-18R

$191.56

46075A

GRIP,TANDEM,RH,F.S.BLACK

46075-0597-18R

$191.56

53029

CARRIER

53029-0329

$75.51

92009

SCREW,TAPPING

92009-1113

$3.92

92066

PLUG

92066-1216

$4.65

92072

BAND,L=168

92072-1306

$13.75

92152

COLLAR,6.5X10X6.2

92152-1511

$4.44

92152A

COLLAR,8.8X12X25.6

92152-1594

$6.26

92154

BOLT,SOCKET,8X23

92154-0077

$3.63

92154A

BOLT,SOCKET,8X40

92154-1001

$4.10

92154B

BOLT,SOCKET,6X20

92154-1674

$3.56

92154C

BOLT,SOCKET,8X43.2

92154-1703

$9.19

92161

DAMPER,11.8X26X15

92161-1000

$3.65

92161A

DAMPER

92161-1084

$2.67

92200

WASHER,8.4X16X1.6

92200-0807

$4.41

92200A

WASHER,12.5X30X3

92200-1729

$1.45

92210

NUT,FLANGED,LOCK,8MM

92210-0159

$11.95

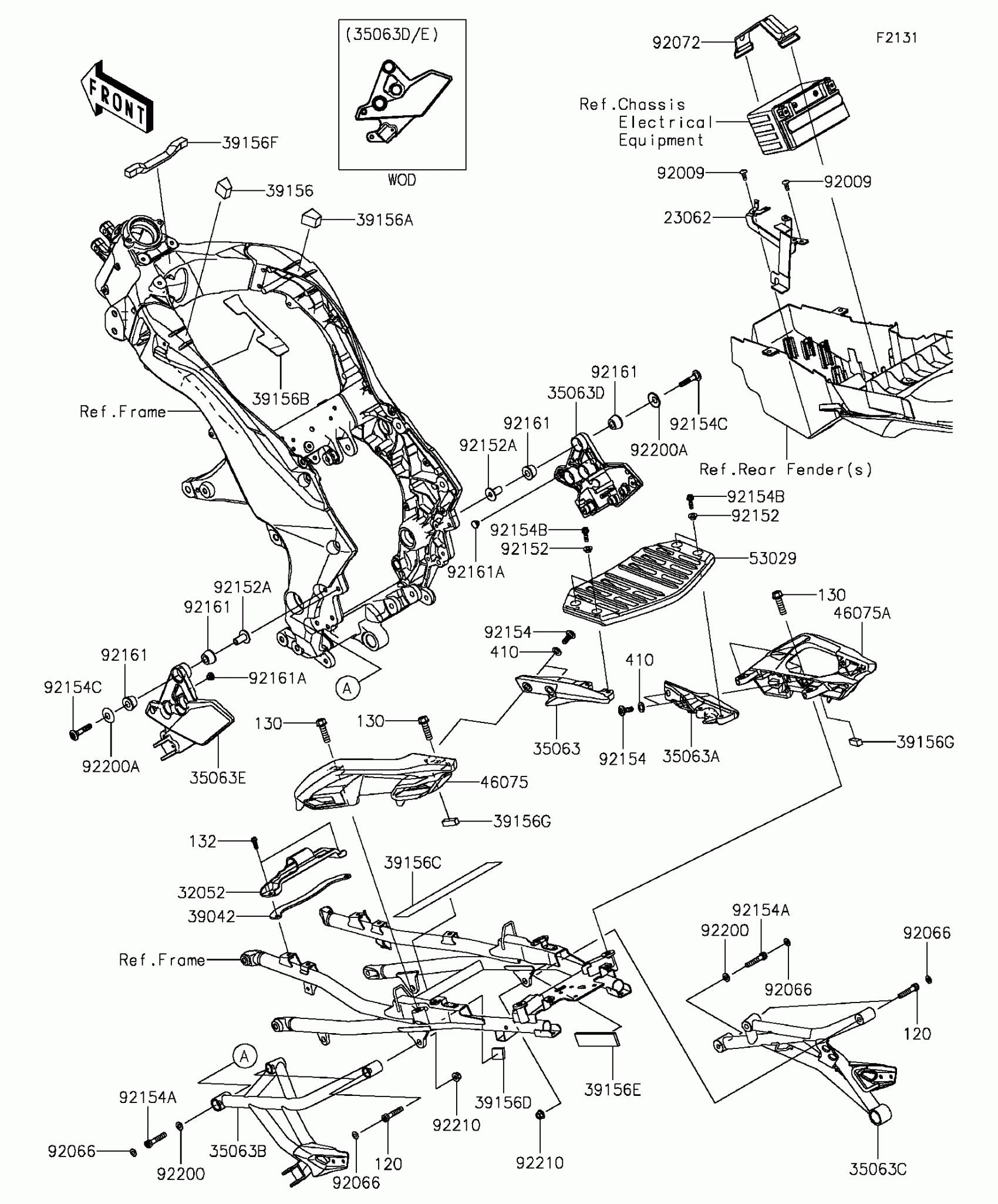

Kawasaki Versys® 1000 ABS Frame Fittings Diagram
