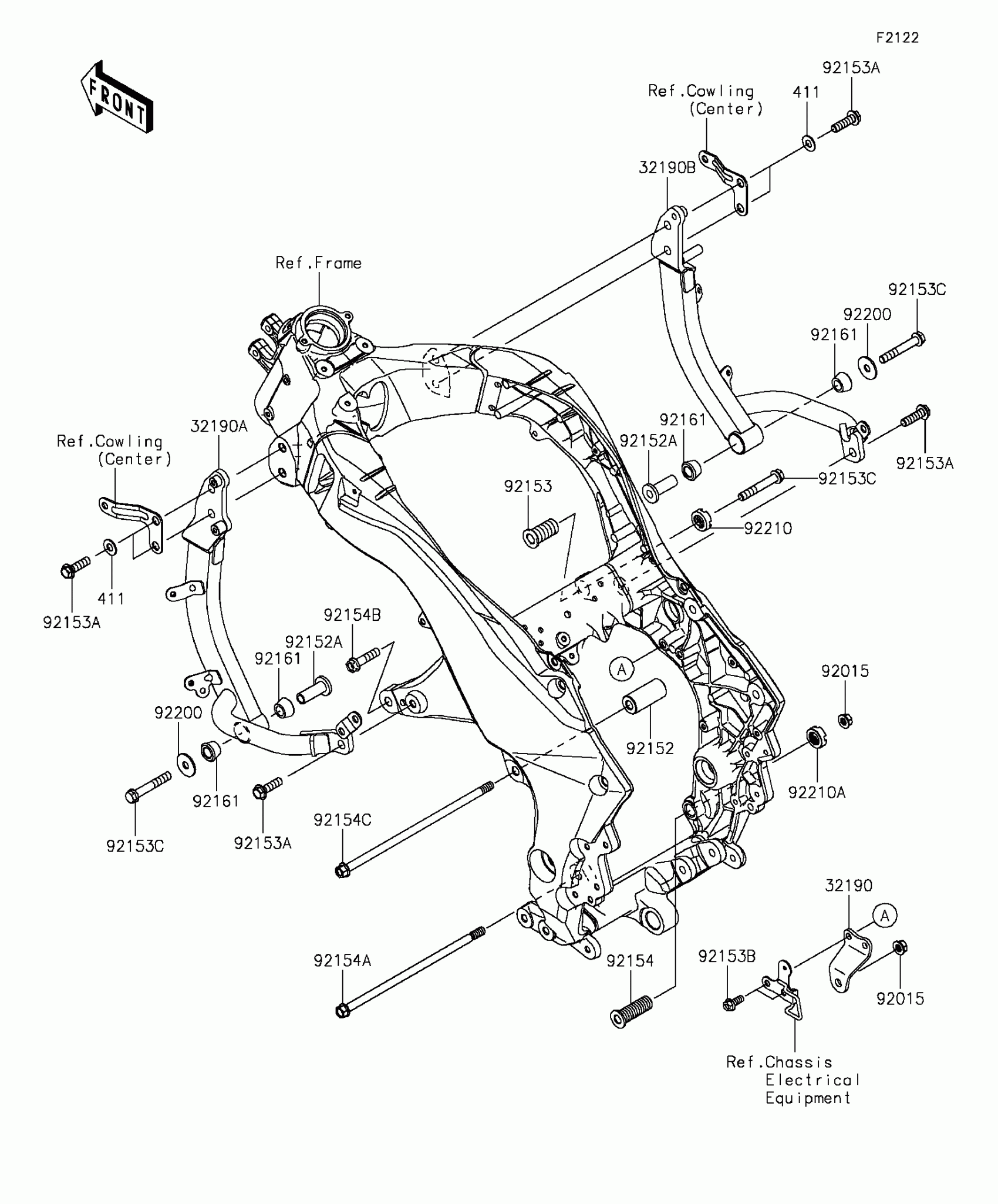

Kawasaki Versys® 1000 ABS Engine Mount Diagram

Description

Price

32190

BRACKET-ENGINE,CR CASE UPP,BLK

32190-0458-18R

$11.12

32190A

BRACKET-ENGINE,LH,F.S.BLACK

32190-0675-18R

$255.04

32190B

BRACKET-ENGINE,RH,F.S.BLACK

32190-0676-18R

$259.61

411

WASHER-PLAIN,10MM

411AA1000

$0.96

92015

NUT,FLANGED,10MM

92015-1180

$4.31

92152

COLLAR,11X26X56.5

92152-0853

$15.62

92152A

COLLAR,10.5X14.5X44

92152-1908

$13.60

92153

BOLT,SOCKET,20X43

92153-0488

$18.25

92153A

BOLT,FLANGED,10X35

92153-0802

$5.57

92153B

BOLT,FLANGED,8X20

92153-1554

$2.73

92153C

BOLT,FLANGED,10X65

92153-1931

$7.75

92154

BOLT,ENGINE MOUNT,18X53.5

92154-0267

$28.54

92154A

BOLT,FLANGED,10X255

92154-0827

$25.44

92154B

BOLT,FLANGED,10X54

92154-0903

$7.43

92154C

BOLT,FLANGED,10X270

92154-0906

$21.38

92161

DAMPER,13.7X26X15

92161-1687

$3.71

92200

WASHER,10.2X32X2.3

92200-0978

$3.26

92210

NUT,20MM

92210-0591

$15.62

92210A

NUT,18MM

92210-1203

$17.76
