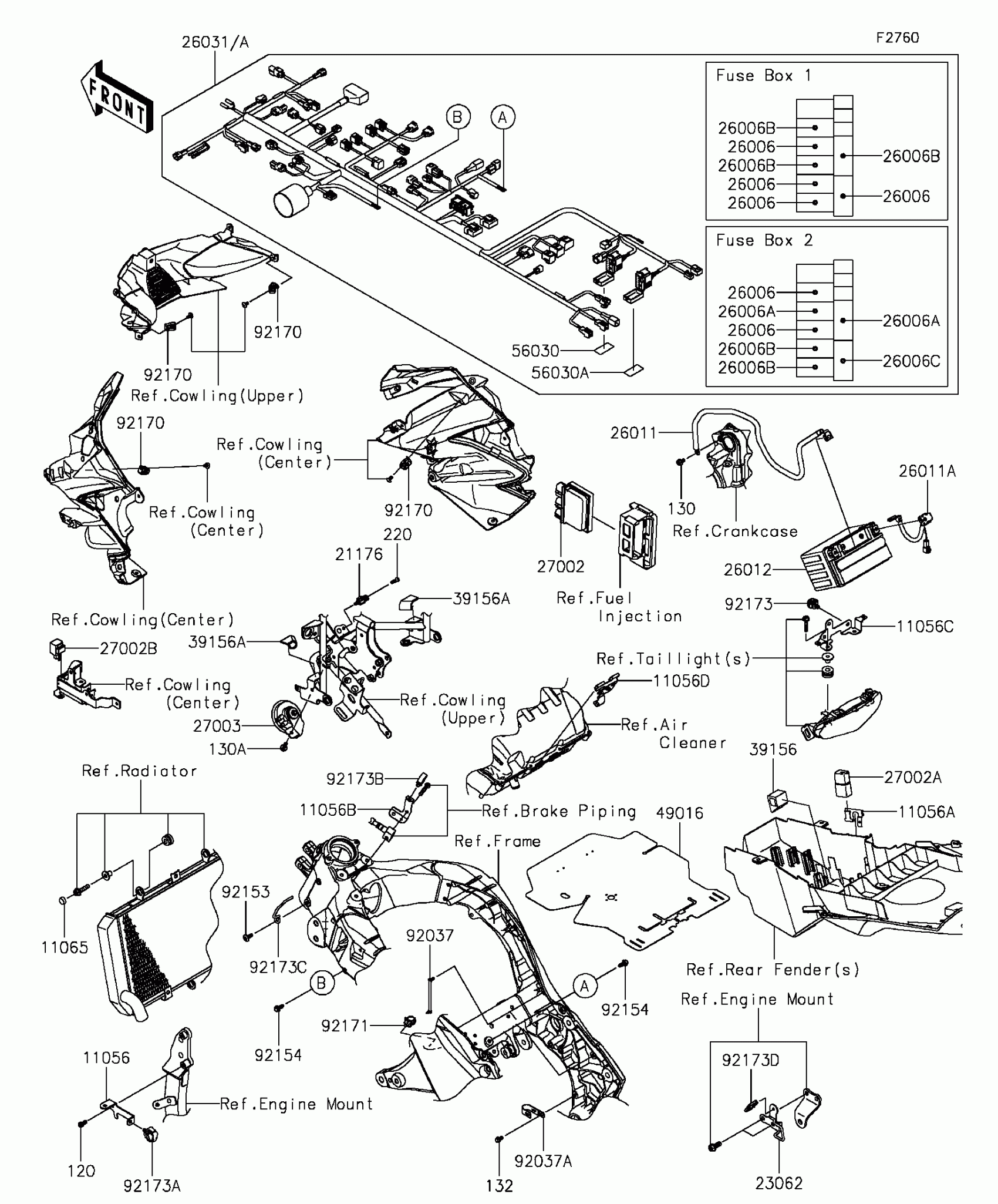

Kawasaki Versys® 1000 ABS Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,ENGINE

11056-1478

$6.26

11056A

BRACKET,RELAY

11056-1735

$29.44

11056B

BRACKET,WHEEL SPEED SENSOR

11056-4165

$3.96

11056C

BRACKET,TAIL LAMP

11056-4166

$7.61

11056D

BRACKET,AIR BOX

11056-4375

$7.86

11065

CAP,BOLT

11065-0752

$2.30

120

BOLT-SOCKET,6X12

120CA0612

$1.71

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

23062

BRACKET-COMP,CABLE GUIDE

23062-0811

$18.95

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,7.5A,BROWN

26006-0055

$6.57

26006C

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0737

$51.09

26011A

WIRE-LEAD,BATTERY(+)

26011-0758

$54.27

26012

BATTERY,YTX9-BS,12V 8AH

26012-0088

Unavailable

26031

HARNESS,MAIN

26031-1749

$1,218.45

26031A

HARNESS,MAIN

26031-1750

$1,218.45

27002

RELAY-ASSY

27002-0007

Unavailable

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

27003

HORN

27003-0109

$72.40

39156

PAD

39156-0812

$7.51

39156A

PAD,21X33X3

39156-1851

$1.02

49016

COVER-SEAL

49016-0625

$35.13

56030

LABEL,FUSE BOX1

56030-0830

$3.29

56030A

LABEL,FUSE BOX2

56030-0878

$3.29

92037

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92037A

CLAMP,CABLE,STEEL SHEET

92037-2014

$1.97

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92170

CLAMP

92170-1514

$4.31

92171

CLAMP,EDGE CLIP

92171-1722

$8.05

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP,HOLDER CLIP

92173-0868

$3.02

92173C

CLAMP,IRON WIRE

92173-1199

$5.98

92173D

CLAMP,CABLE CLIP

92173-1242

$1.71

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

220

SCREW-PAN-CROS,5X16

220AB0516

$1.74
