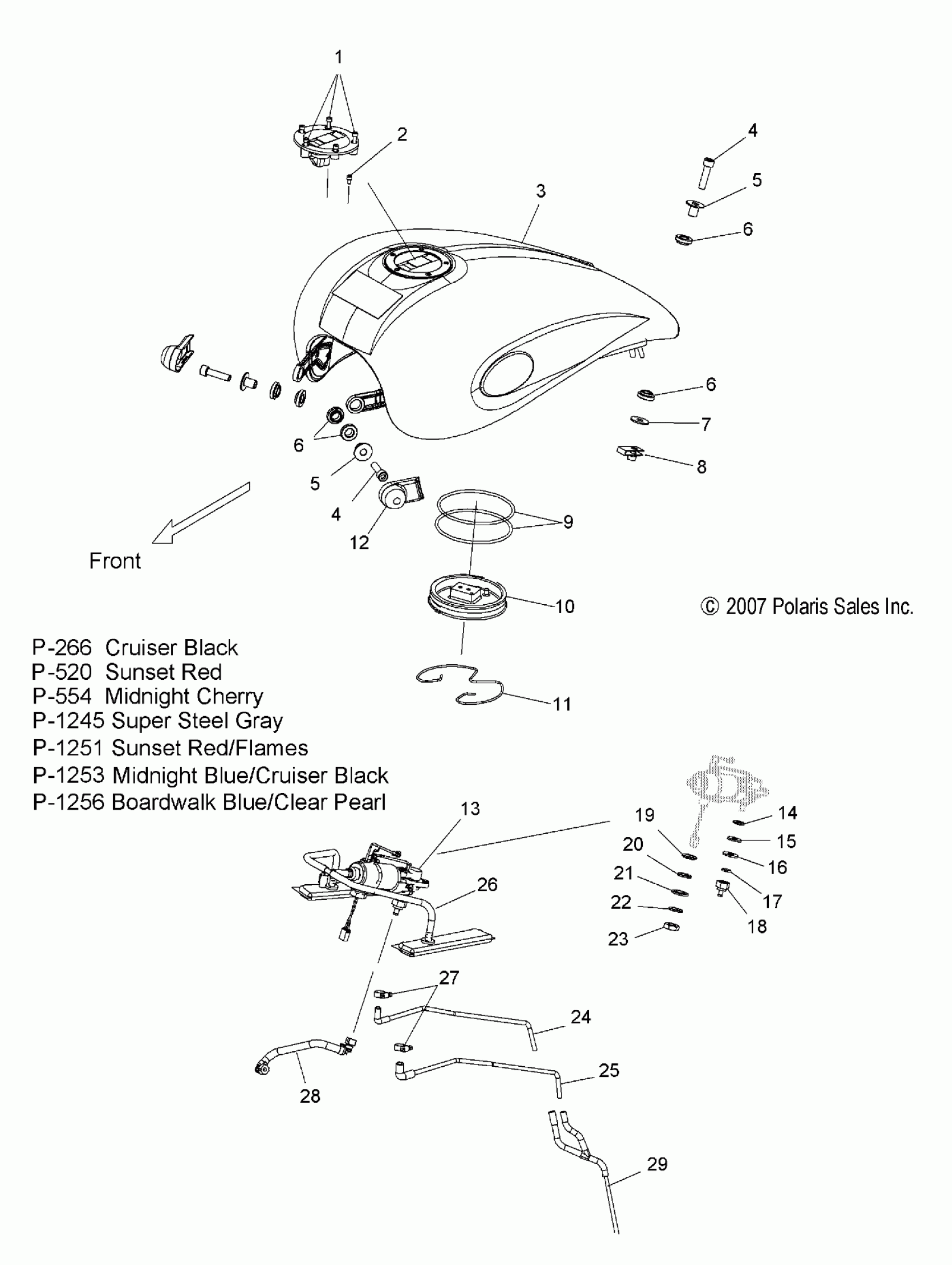

Polaris VEGAS/VEGAS 8 BALL/VEGAS LOW ALL OPTIONS - V08AB26/GB26/LB26 BODY, FUEL TANK - V08AB26/GB26/LB26 ALL OPTIONS (49VICFUEL08VEGAS) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

1

Asm., Ignition/Fuel Cap, Silver

4011080-385

Unavailable

1

Asm., Ignition/Fuel Cap, Black

4011080-266

$285.62

2

SCREW

7517845

$5.56

3

Tank, Fuel, Spine

1014738-266

Unavailable

3

Tank, Fuel, Spine

1014738-520

$1,524.99

3

Tank, Fuel, Spine

1014738-1251

Unavailable

3

Tank, Fuel, Spine

1014738-1253

Unavailable

3

Tank, Fuel, Spine

1014738-1256

$597.22

3

Tank, Fuel, Spine

1014738-554

Unavailable

3

Tank, Fuel, Spine

1014738-1245

$557.54

4

SCREW

7517525

$4.35

4

SCREW

7517525

$4.35

5

Bushing

5134160

$10.99

5

Bushing

5134160

$10.99

6

Bushing, Flange

5412480

$3.17

6

Bushing, Flange

5412480

$3.17

6

Bushing, Flange

5412480

$3.17

7

Washer, Flat

7556260

$10.32

8

U-NUT

7547233

$10.32

9

O-Ring

5412071

Unavailable

10

Plug

5133613

Unavailable

11

Ring, Retaining

7710515

Unavailable

12

COVER, MOUNT, LH

5412414

$32.37

12

COVER, MOUNT, RH

5412415

$32.37

13

Thermistor, Fuel Pump

2520678

Unavailable

13

Asm., Fuel Pump

2520700

Unavailable

14

Grommet

5412094

$12.70

15

Grommet

5412093

Unavailable

16

Washer

7556131

$3.17

17

O-Ring

5411869

Unavailable

18

Fitting

2520701

$29.98

19

Grommet

5412096

$12.70

20

Grommet

5412095

Unavailable

21

Washer

7556193

Unavailable

22

Washer

7556192

$4.76

23

Nut

7547186

$4.76

24

LINE, WATER DRAIN

5435764

Unavailable

25

Line Fuel Vent

5437376

Unavailable

26

Asm., Fuel Line, Filter

2520322

Unavailable

27

CLAMP, HOSE

7081151

$7.14

28

Line, Fuel, Tank to Fuel Rail

5413235

Unavailable

29

LINE, WATER/FUEL TO GROUND

5435771

$71.41
