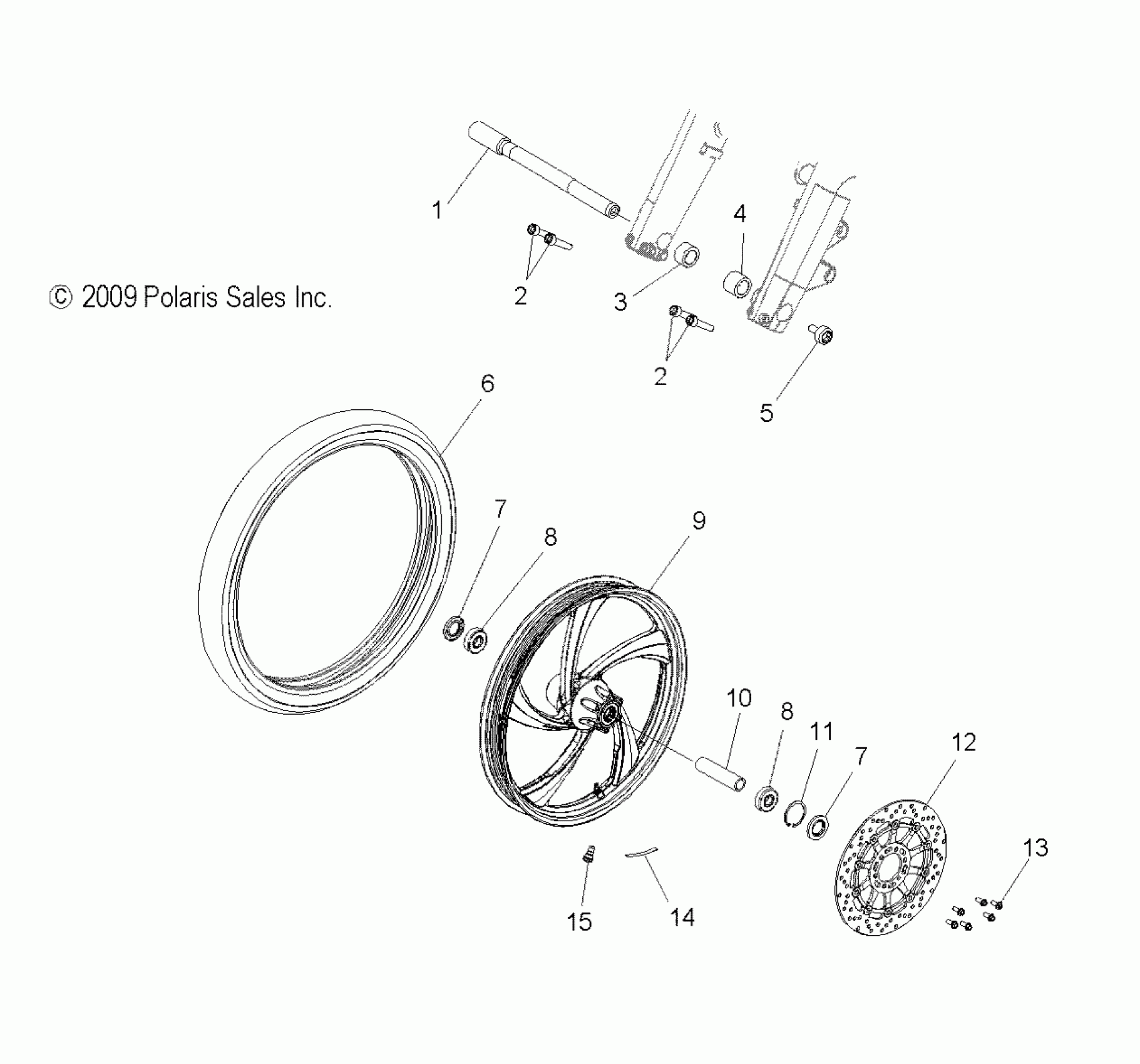

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V10AB26/LB26 WHEELS, FRONT - V10AB26/LB26 ALL OPTIONS (49VICWHEELFRT10VGS) Diagram

#

Description
Price

1

Axle, Front

5137091

$222.60

2

SCREW

7517517

Unavailable

2

SCREW

7517517

Unavailable

3

SPACER, BEARING, LH

5631479

$3.97

4

SPACER, BEARING, LH

5631481

$4.76

5

SCREW

7517936

$39.99

6

Tire, Dunlop

5413143

Unavailable

7

SEAL

3610094

$31.75

7

SEAL

3610094

$31.75

8

BEARING, BALL

3514405

$19.84

8

BEARING, BALL

3514405

$19.84

9

ASM., WHEEL, FRONT, CAST, BLACK [INCL. 7,8,10,11,15]

1521151-266

$509.49

9

Asm., Wheel, Front, Cast, Clear/Silver [Incl. 7,8,10,11,15]

1521151-385

Unavailable

10

SPACER, BEARING, FRONT WHEEL, MID

5335681

$34.99

11

Ring, Retaining

7710526

$10.32

12

Rotor, Brake, Black

1911463-266

$379.99

12

Rotor, Brake, Silver

1911463-385

$264.99

13

SCREW

7518661

$1.59

14

Weight, Balance

1520618

Unavailable

15

VALVE, RIM

1521312

$11.32
