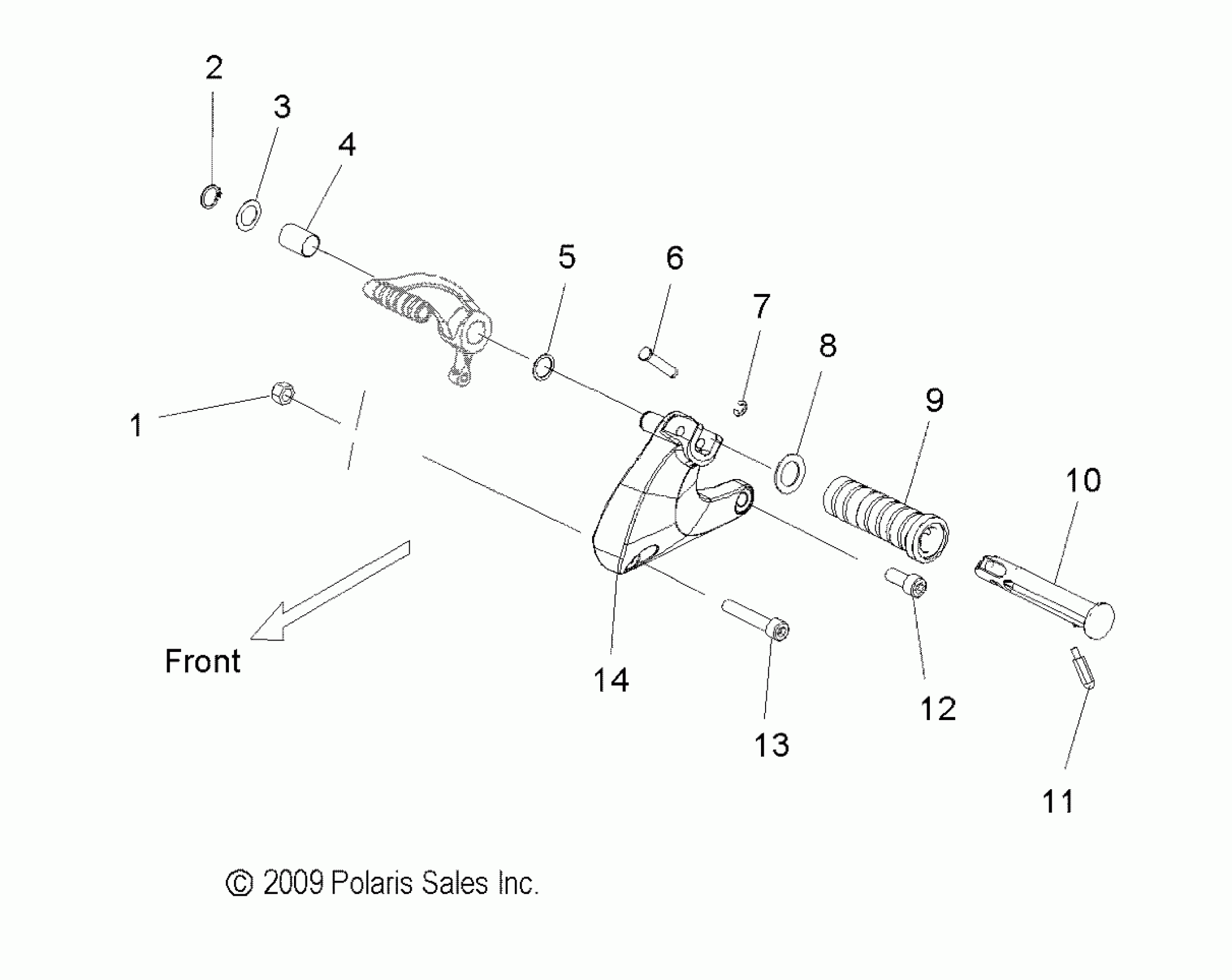

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V10AB26/LB26 CHASSIS, FOOTPEG and FLOORBOARD, LH - V10AB26/LB26 ALL OPTIONS (49VICFOOTPEGLH10VGS) Diagram

#

Description
Price

1

NUT

7547039

$4.76

2

Ring, Retaining, External [Foot Peg]

7710499

$7.14

3

WASHER, FLAT

7556075

$11.33

4

BEARING-SHIFT PEDAL

3514335

Unavailable

5

WASHER, WAVE

7556273

$2.38

6

PIN-PIVOT,FOOTPEG

7661980

$11.32

7

RING-RTNG,SPIRAL,EXT,SS

7710644

$1.98

8

WASHER-FOOTPEG,PIVOT

7556274

$3.17

9

PAD, FOOTPEG

5412256

$20.22

10

FOOTPEG, LH, BRU

5136035-411

Unavailable

11

FEELER, FOOTPEG

5133539

Unavailable

12

SCREW

7518101

$7.94

13

SCREW

7518146

$10.32

14

SUPPORT, FOOTPEG, BLACK, LH

5136080-266

$224.99
