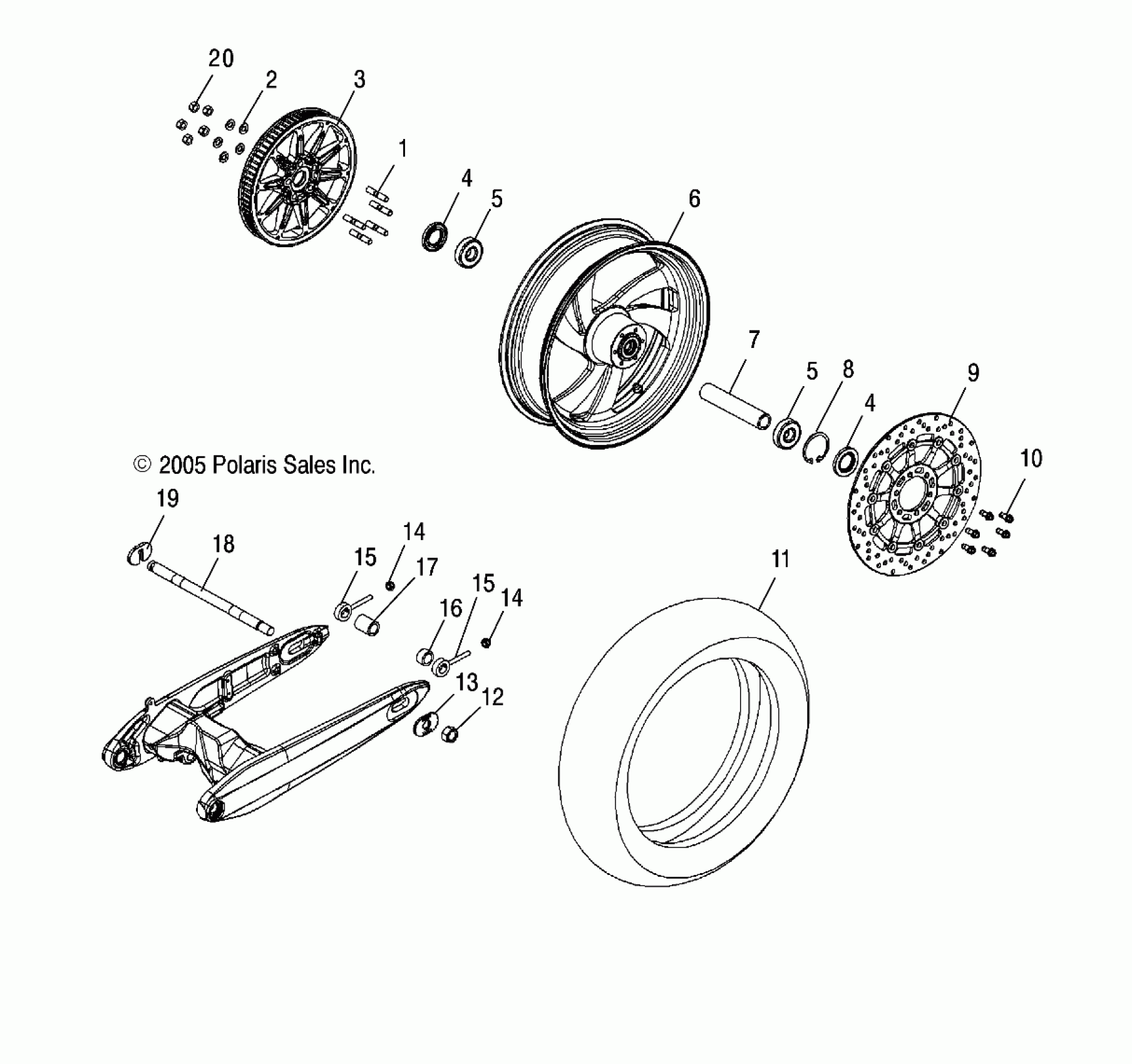

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 WHEELS, REAR (CAST) - V07AB26/GB26 ALL OPTIONS (4999203359920335B04) Diagram

#

Description
Price

1

Stud

7518311

Unavailable

2

WASHER, FLAT

7556287

$7.14

3

Asm., Sprocket, 70T, Black

1332399-266

$564.99

3

Asm., Sprocket, 70T, Silver

1332399-385

Unavailable

4

SEAL

3610094

$31.75

4

SEAL

3610094

$31.75

5

BEARING, BALL

3514405

$19.84

5

BEARING, BALL

3514405

$19.84

6

Weight, Balance

1520618

Unavailable

6

Valve, Rim

1520232

$3.17

6

Asm., Wheel, Cast, Rear, Cloud Silver [Incl. 5-9]

1520820-409

$989.99

6

Asm., Wheel, Cast, Rear, Black [Incl. 5-9]

1520820-266

Unavailable

7

Spacer

5334138

$61.89

8

Ring, Retaining

7710526

$10.32

9

Rotor, Brake, Floating

1910623

$349.99

10

Screw

7518297

$5.56

11

Tire, Rear

5412373

$319.99

12

NUT, HEX

7547226

$23.81

13

WASHER, INDICATOR, AXLE

5248452-236

$27.78

14

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

14

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

15

Adjuster Axle

1014895

$36.41

15

Adjuster Axle

1014895

$36.41

16

SPACER, BEARING, LH

5631479

$3.97

17

SPACER, WHEEL, REAR, RH

5631581

$11.99

18

AXLE, REAR

5135743

$67.46

19

RETAINER-AXLE, REAR

5248599

$27.78

20

Nut, Hex

7547232

$23.81
