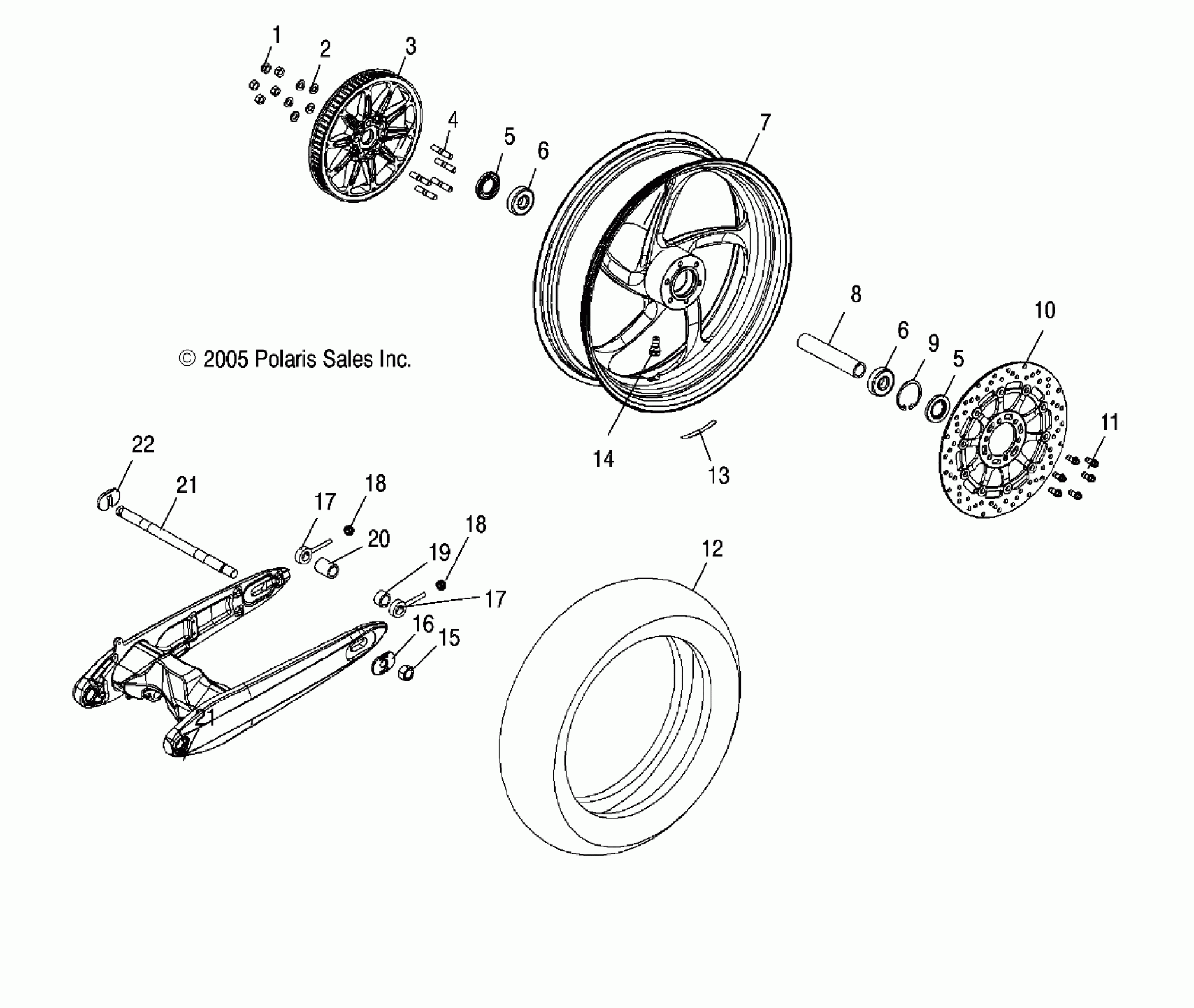

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 WHEELS, REAR (BILLET) - V07AB26/GB26 ALL OPTIONS (4999203359920335B03) Diagram

#

Description
Price

1

NUT

7547232

$23.81

2

WASHER

7556287

$7.14

3

Asm., Sprocket, 70T, Silver

1332399-385

Unavailable

4

Stud

7518311

Unavailable

5

SEAL

3610094

$31.75

5

SEAL

3610094

$31.75

6

BEARING, BALL

3514405

$19.84

6

BEARING, BALL

3514405

$19.84

7

Asm., Wheel, Billet, Rear [Vegas] [Incl. 5-9,13,14]

1521053-405

$1,199.99

8

Spacer, Bearing, Mid

5334138

$61.89

9

Ring, Retaining

7710526

$10.32

10

Rotor, Brake, Floating

1910623

$349.99

11

Screw

7518297

$5.56

12

Tire, Rear

5412373

$319.99

13

Weight, Balance

1520618

Unavailable

14

Valve, Rim

1520995

Unavailable

15

NUT, HEX

7547226

$23.81

16

WASHER, INDICATOR, AXLE

5248452-236

$27.78

17

Adjuster Axle

1014895

$36.41

17

Adjuster Axle

1014895

$36.41

18

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

18

NUT-NYLOCK M8X1.25-Y

7547144

$3.17

19

SPACER, BEARING, LH

5631479

$3.97

20

SPACER, WHEEL, REAR, RH

5631581

$11.99

21

AXLE, REAR

5135743

$67.46

22

RETAINER-AXLE, REAR

5248599

$27.78
