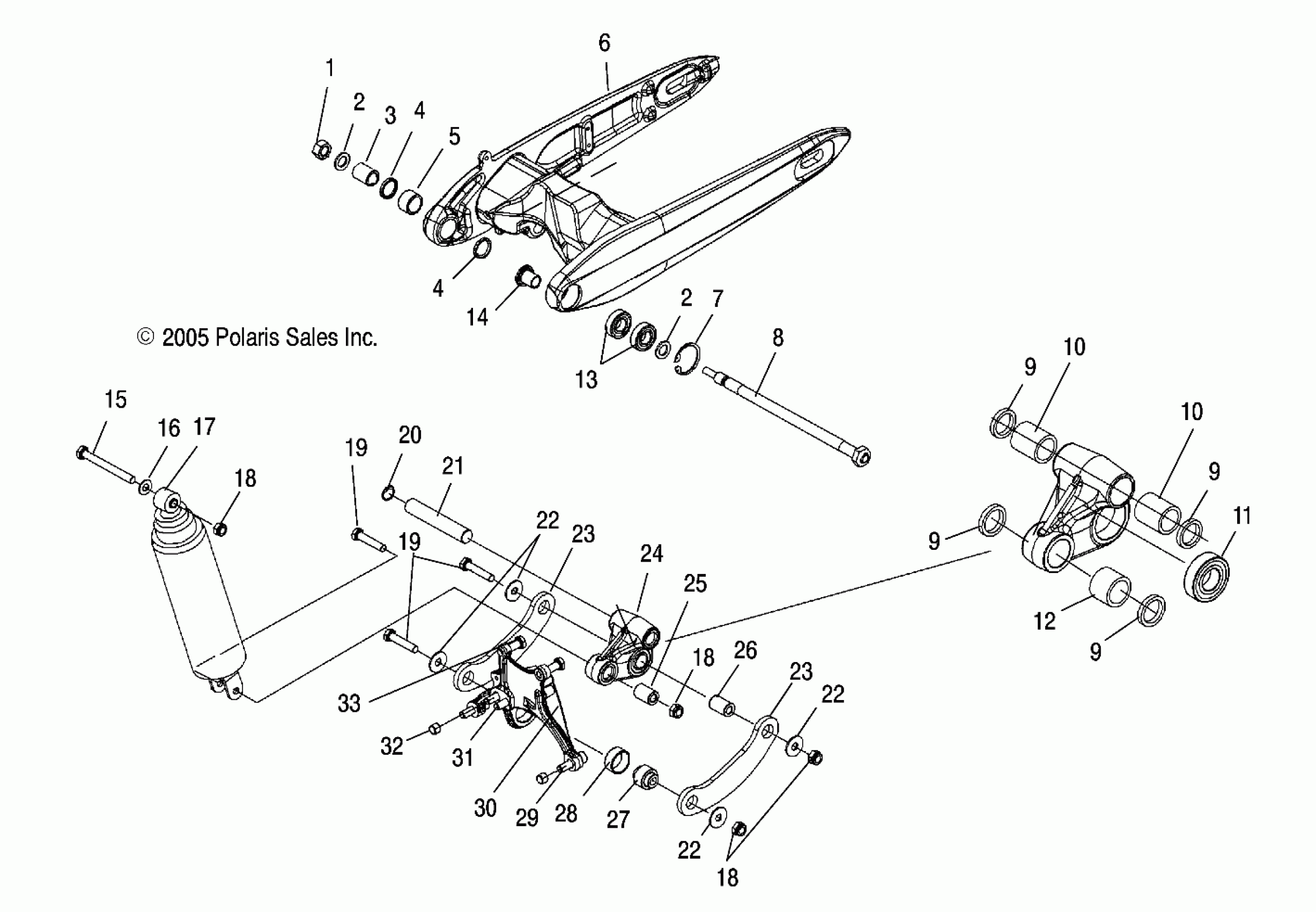

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 SUSPENSION, REAR and SWING ARM - V07AB26/GB26 ALL OPTIONS (4999203359920335A04) Diagram

#

Description
Price

1

NUT

7540001

$4.76

2

WASHER, FLAT

7556236

$7.14

2

WASHER, FLAT

7556236

$7.14

3

Bushing

5133475

$43.65

4

SEAL

3610096

$11.90

4

SEAL

3610096

$11.90

5

BEARING

3514413

$19.84

6

Asm., Swing Arm w/Bearings, Chrome [Incl. 4,5,7,13]

1015299-156

$929.99

6

Asm., Swing Arm w/Bearings, Silver [Incl. 4,5,7,13]

1015379-385

Unavailable

6

Asm., Swing Arm w/Bearings, Black [8 Ball][Incl. 4,5,7,13]

1015379-521

$739.99

7

RING, RETAINING

7670149

$7.14

8

Shaft, Swing Arm Pivot

1014610

$96.81

9

SEAL

3610095

$11.90

9

SEAL

3610095

$11.90

9

SEAL

3610095

$11.90

9

SEAL

3610095

$11.90

10

BEARING, NEEDLE

3514411

$23.81

10

BEARING, NEEDLE

3514411

$23.81

11

BEARING, SPHERICAL

3514439

$63.49

12

BEARING, NEEDLE

3514412

$19.84

13

BEARING, BALL

3514414

$15.14

14

BUSHING

5631478

$5.56

15

SCREW

7518206

$10.32

16

Washer, Flat

7556155

$5.22

17

ASM., SHOCK [See Shock, Rear Page for Details]

----

Unavailable

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

18

NUT, NYLOK

7547268

$1.19

19

SCREW

7517946

$7.14

19

SCREW

7517946

$7.14

20

RING, RETAINING

7710544

$3.97

21

BUSHING

5134101

$74.99

22

Washer, Flat

7556260

$10.32

22

Washer, Flat

7556260

$10.32

22

Washer, Flat

7556260

$10.32

23

Link, Suspension Strap

5247519

$55.56

23

Link, Suspension Strap

5247519

$55.56

24

Asm., Rocker w/Bearings [Incl. 9,10,11,12]

1014865

Unavailable

25

Bushing, Suspension, Short

5133473

$39.99

26

Shaft, Rocker Arm

5133807

$36.41

27

BUSHING, PLAIN BEARING

5135465

$19.84

28

BEARING

3514459

$11.90

29

SCR-SH-M10X1.5X35 8.8 ZPD D204

7518032

Unavailable

30

Mount, Minor Pivot

5135458-067

Unavailable

31

SCREW

7518202

Unavailable

32

DOWEL

7663008

$5.99

33

SCREW

7517827

$6.35
