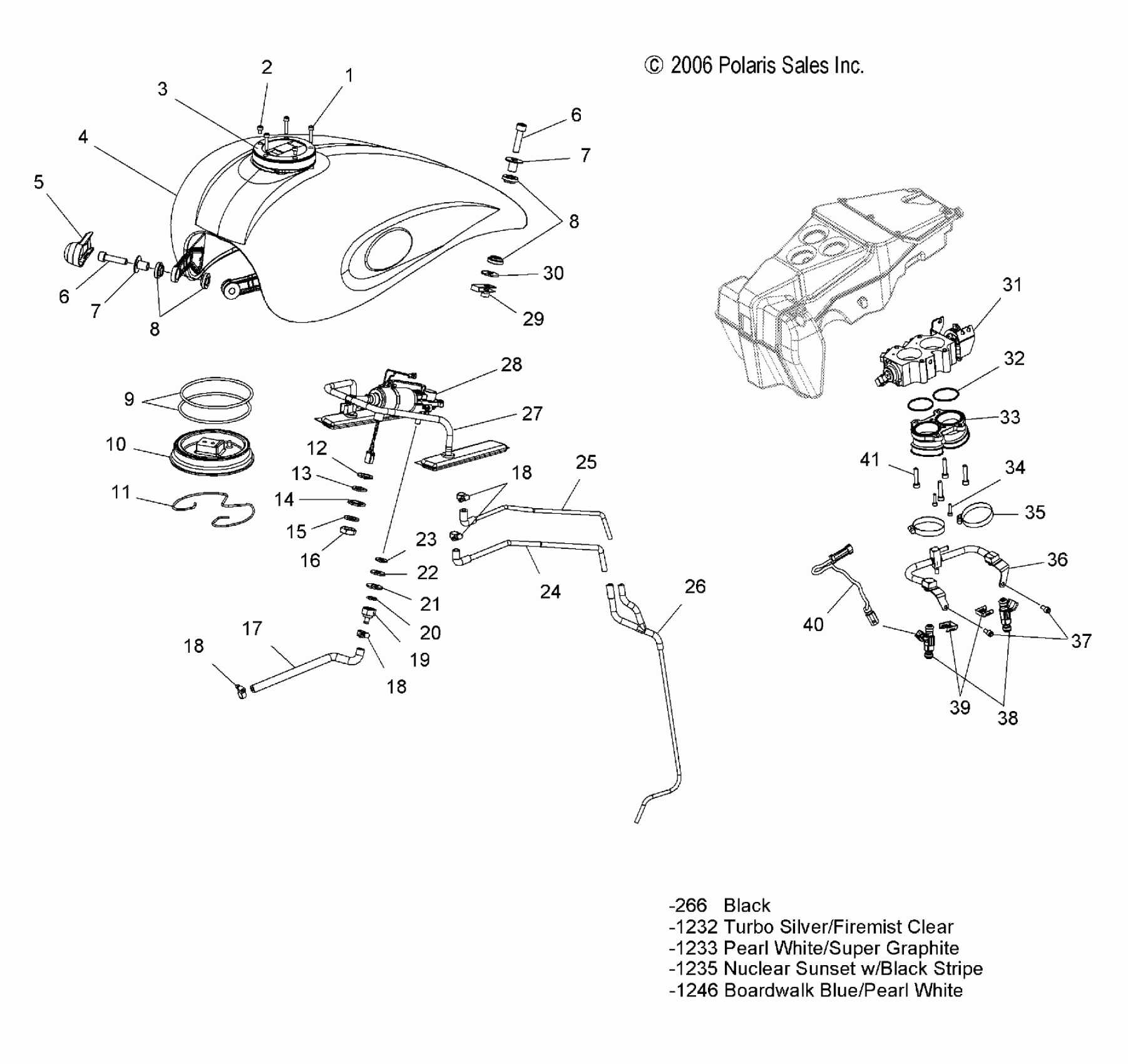

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 FUEL SYSTEM, FUEL TANK and LINES - V07AB26/GB26 ALL OPTIONS (49VICFUEL07VEGAS) Diagram

#

Description
Price

1

SCREW

7518086

$5.56

2

SCREW

7517845

$5.56

3

ASM., IGNITION SWITCH/FUEL CAP [See Ignition Asm. Page for Details]

----

Unavailable

4

Tank, Fuel, Spine

1014738-266

Unavailable

4

Tank, Fuel, Spine

1014738-1232

$1,404.99

4

Tank, Fuel, Spine

1014738-1235

$2,289.99

4

Tank, Fuel, Spine

1014738-1233

$2,184.99

4

Tank, Fuel, Spine

1014738-1246

Unavailable

5

COVER, MOUNT, LH

5412414

$32.37

5

COVER, MOUNT, RH

5412415

$32.37

6

SCREW

7517525

$4.35

6

SCREW

7517525

$4.35

7

Bushing

5134160

$10.99

7

Bushing

5134160

$10.99

8

Bushing, Flange

5412480

$3.17

8

Bushing, Flange

5412480

$3.17

9

O-Ring

5412071

Unavailable

10

Plug

5133613

Unavailable

11

Ring, Retaining

7710515

Unavailable

12

Grommet

5412096

$12.70

13

Grommet

5412095

Unavailable

14

Washer

7556193

Unavailable

15

Washer

7556192

$4.76

16

Nut

7547186

$4.76

17

Hose

5412332

Unavailable

18

CLAMP, HOSE

7081151

$7.14

18

CLAMP, HOSE

7081151

$7.14

18

CLAMP, HOSE

7081151

$7.14

19

Fitting

2520251

Unavailable

20

O-Ring

5411869

Unavailable

21

Washer

7556131

$3.17

22

Grommet

5412093

Unavailable

23

Grommet

5412094

$12.70

24

Line Fuel Vent

5435763

Unavailable

25

LINE, WATER DRAIN

5435764

Unavailable

26

LINE, WATER/FUEL TO GROUND

5435771

$71.41

27

Asm., Fuel Line, Filter

2520322

Unavailable

28

Pump, Fuel

2520394

Unavailable

28

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

29

U-NUT

7547233

$10.32

30

Washer, Flat

7556260

$10.32

31

Asm., Throttle Body

1253363

Unavailable

31

Cap, Fitting

5411886

Unavailable

32

O-Ring

5412259

$1.59

33

Adapter, Throttle Body

1203277

$159.99

34

SCREW

7516610

$3.97

35

Clamp, Narrow Band

7080511

$4.76

36

Asm., Fuel Rail

2520207

Unavailable

37

SCREW

7517405

$10.32

38

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.90

38

Injector, Fuel

1253405

Unavailable

39

Clip, Injector Clocking

7670129

Unavailable

40

HARNESS, JUMPER, FUEL INJECTOR [See Electrical Page for Details]

----

Unavailable

41

SCREW

7517259

$5.56
