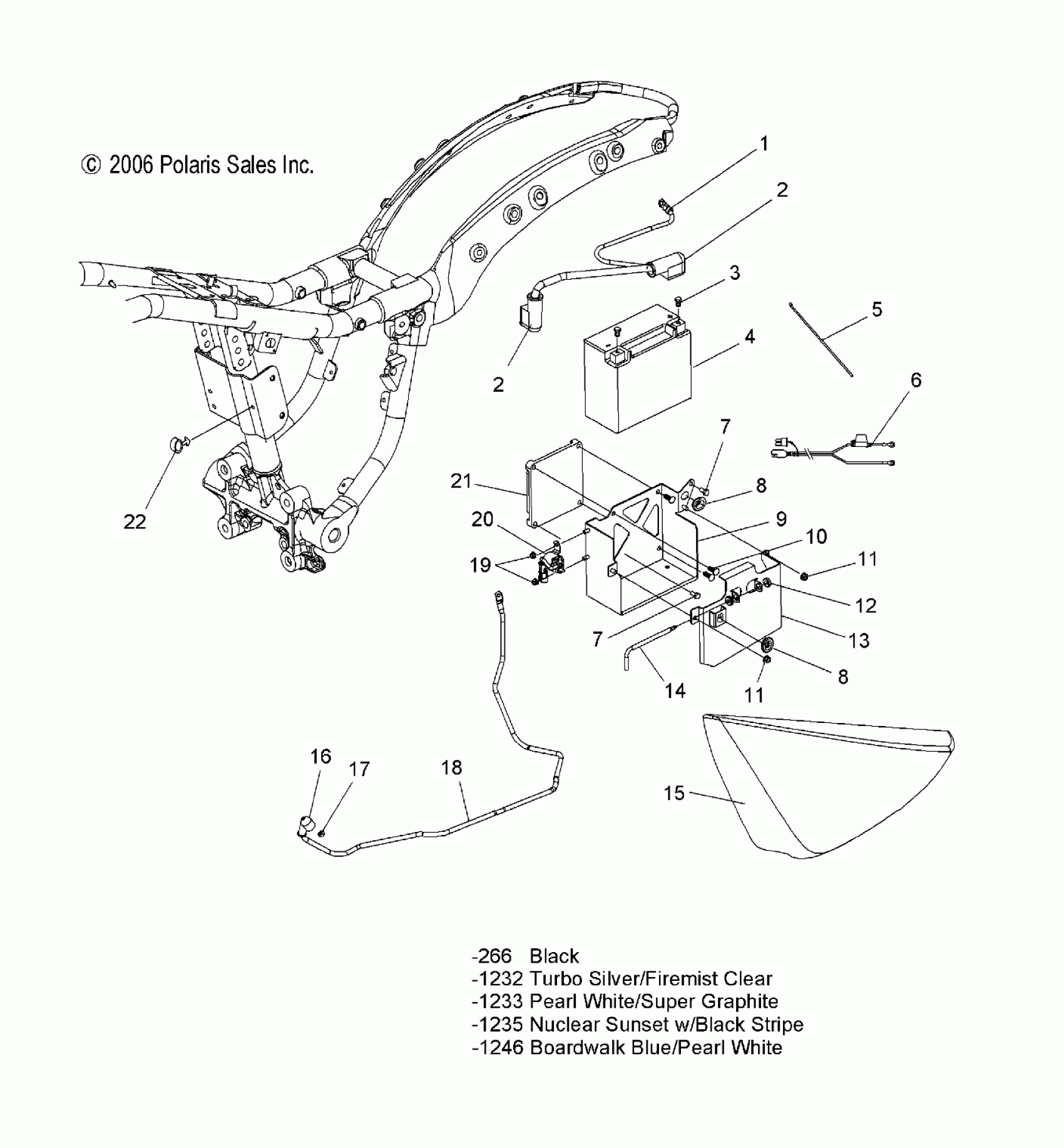

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 ELECTRICAL, ECM/BATTERY BOX/SIDE COVER, L.H. - V07AB26/GB26 ALL OPTIONS (49VICBATTERYBOX07VEGAS) Diagram

#

Description
Price

1

Cable, Battery, Positive [Incl. 2]

2410895

Unavailable

2

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

2

BOOT,BTTRY CABLE,RED,POS

5411570

$7.27

3

BATTERY BOLT KIT

2201357

Unavailable

4

Battery

4011374

$151.99

5

CABLE-TIE,DIA12-50MM,WTHR-RES. [8 Inch]

7080138

$2.41

6

Harness, Charging

2461006

$49.99

7

SCREW

7517438

$4.35

7

SCREW

7517438

$4.35

8

GROMMET-SIDE COVER

5433833

$4.21

8

GROMMET-SIDE COVER

5433833

$4.21

9

PAD-BATTERY

5810290

$7.27

9

Box, Battery

1014477-067

Unavailable

10

Clip, Plastic

7670141

$4.76

11

Nut

7710495

$5.22

11

Nut

7710495

$5.22

12

Grommet

5412322

$1.98

13

Cover, Battery

1014512

Unavailable

14

Wrench, Cruiser, Phillips

5334438

$3.97

15

Cover, Side, LH

5434595-266

Unavailable

15

Cover, Side, LH

5434595-1232

Unavailable

15

Cover, Side, LH

5434595-1235

$144.84

15

Cover, Side, LH

5434595-1246

$130.16

15

Cover, Side, LH

5434595-1233

Unavailable

16

Boot, Terminal Insulator, Black

5412343

$5.56

17

NUT, FLEXLOC

7547091

Unavailable

18

Cable, Starter

2410894

$18.41

19

NUT

7547270

$3.97

20

SOLENOID,STARTER [See Electrical Page, Ref. 3]

----

Unavailable

21

ECM, Programmed NOTE: Refer to Victory Diagnostic Software Users Guide for appropriate calibration instructions.

4011450

$669.99

22

CLIP, SNAP-IN

7080756

$4.76
