- VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26
CHASSIS, FOOTPEG, L.H./FLOORBOARD/SHIFT - V07AB26/GB26 ALL OPTIONS (4999203359920335A06)

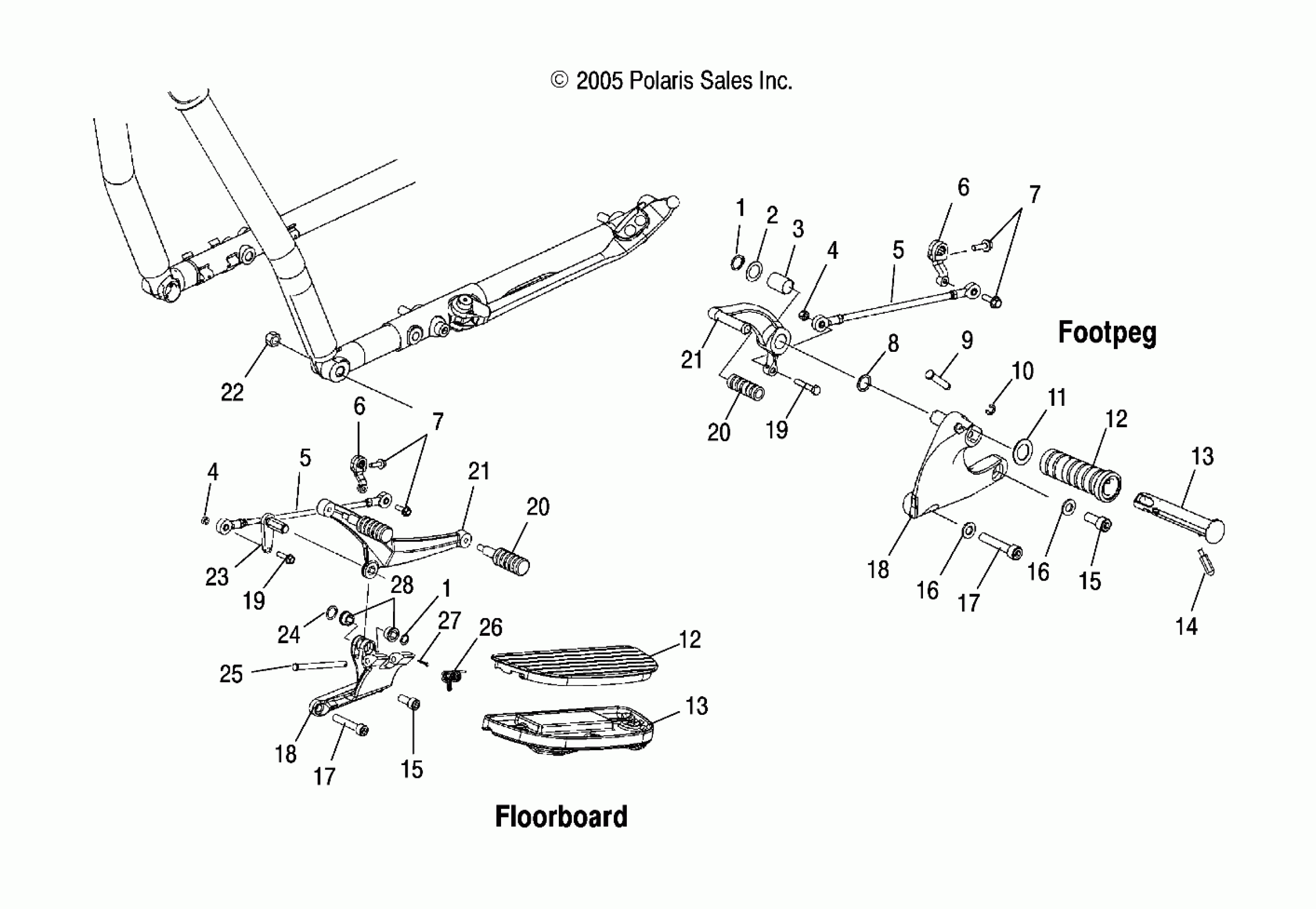

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 CHASSIS, FOOTPEG, L.H./FLOORBOARD/SHIFT - V07AB26/GB26 ALL OPTIONS (4999203359920335A06) Diagram
#
1
Ring, Retaining, External [Floorboard]
7710508
$4.35
1
Ring, Retaining, External [Foot Peg]
7710499
$7.19
1
Ring, Retaining, External [Floorboard]
7710508
$4.35
1
Ring, Retaining, External [Foot Peg]
7710499
$7.19
2
WASHER, FLAT
7556075
Unavailable
3
Bearing, Shift Pedal
3514490
Unavailable
4
NUT
7547230
Unavailable
4
NUT
7547230
Unavailable
5
Asm., Shifter Linkage [Footpeg]
1013957
Unavailable
5
Asm., Shifter Linkage [Floorboard]
1014246
Unavailable
5
Asm., Shifter Linkage [Footpeg]
1013957
Unavailable
5
Asm., Shifter Linkage [Floorboard]
1014246
Unavailable
6
LEVER, SHIFTER
5133530
Unavailable
6
LEVER, SHIFTER
5133530
Unavailable
7
SCREW
7518141
$4.79
7
SCREW
7518141
$4.79
8
WASHER, WAVE
7556273
Unavailable
9
Pin, Pivot
7661167
$7.94
10
Ring, Retaining
7710545
$1.98
11
Washer, Flat
7556241
Unavailable
12
PAD, FOOTPEG
5412256
Unavailable
12
PAD, FLOORBOARD, DRIVER
5412456
Unavailable
12
PAD, FOOTPEG
5412256
Unavailable
12
PAD, FLOORBOARD, DRIVER
5412456
Unavailable
13
Floorboard, Driver, Ball Burnish
5135631-425
Unavailable
13
Footpeg, LH, Bru
5135627-411
Unavailable
13
Floorboard, Driver, Ball Burnish
5135631-425
Unavailable
13
Footpeg, LH, Bru
5135627-411
Unavailable
14
FEELER, FOOTPEG
5133539
Unavailable
15
SCREW
7518101
Unavailable
15
SCREW
7518101
Unavailable
16
WASHER, FLAT
7556234
$3.19
16
WASHER, FLAT
7556234
$3.19
17
SCREW
7518146
Unavailable
17
SCREW
7518146
Unavailable
18
Support, Footpeg, Black, LH [8 Ball]
5134680-266
Unavailable
18
Support, Footpeg, Silver, LH
5134680-385
$324.43
18
Support, Floorboard, LH
5134622-385
$454.99
18
Support, Footpeg, Black, LH [8 Ball]
5134680-266
Unavailable
18
Support, Footpeg, Silver, LH
5134680-385
$324.43
18
Support, Floorboard, LH
5134622-385
$454.99
19
Screw [Floorboard]
7518329
Unavailable
19
Screw [Footpeg]
7518147
Unavailable
19
Screw [Floorboard]
7518329
Unavailable
19
Screw [Footpeg]
7518147
Unavailable
20
PEG-SHIFTER, BRAKE [Floorboard]
5412493
Unavailable
20
Pad, Shift Pedal [Footpeg]
5411364
$23.99
20
PEG-SHIFTER, BRAKE [Floorboard]
5412493
Unavailable
20
Pad, Shift Pedal [Footpeg]
5411364
$23.99
21
Pedal, Shifter Lever [Floorboard]
5134179-410
$319.99
21
Pedal, Shift Lever, Black [Footpeg][8 Ball]
5134682-266
$569.99
21
Pedal, Shift Lever, Silver [Footpeg]
5134682-385
Unavailable
21
Pedal, Shifter Lever [Floorboard]
5134179-410
$319.99
21
Pedal, Shift Lever, Black [Footpeg][8 Ball]
5134682-266
$569.99
21
Pedal, Shift Lever, Silver [Footpeg]
5134682-385
Unavailable
22
NUT
7547039
Unavailable
23
Shaft, Shift Lever
1014589
$35.71
24
Washer, Wave
7556322
$15.99
25
PIN, FLOORBOARD SUPPORT
7661095
$2.99
26
SPRING, SUPPORT, FLOORBOARD
7041623
$27.99
27
PIN, COTTER
7661094
Unavailable
28
Bushing, Shift Pedal
3514470
Unavailable
