- VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26
BODY, FENDER, REAR and TAILLIGHT - V07AB26/GB26 ALL OPTIONS (49VICFENDERRR07VEGAS)

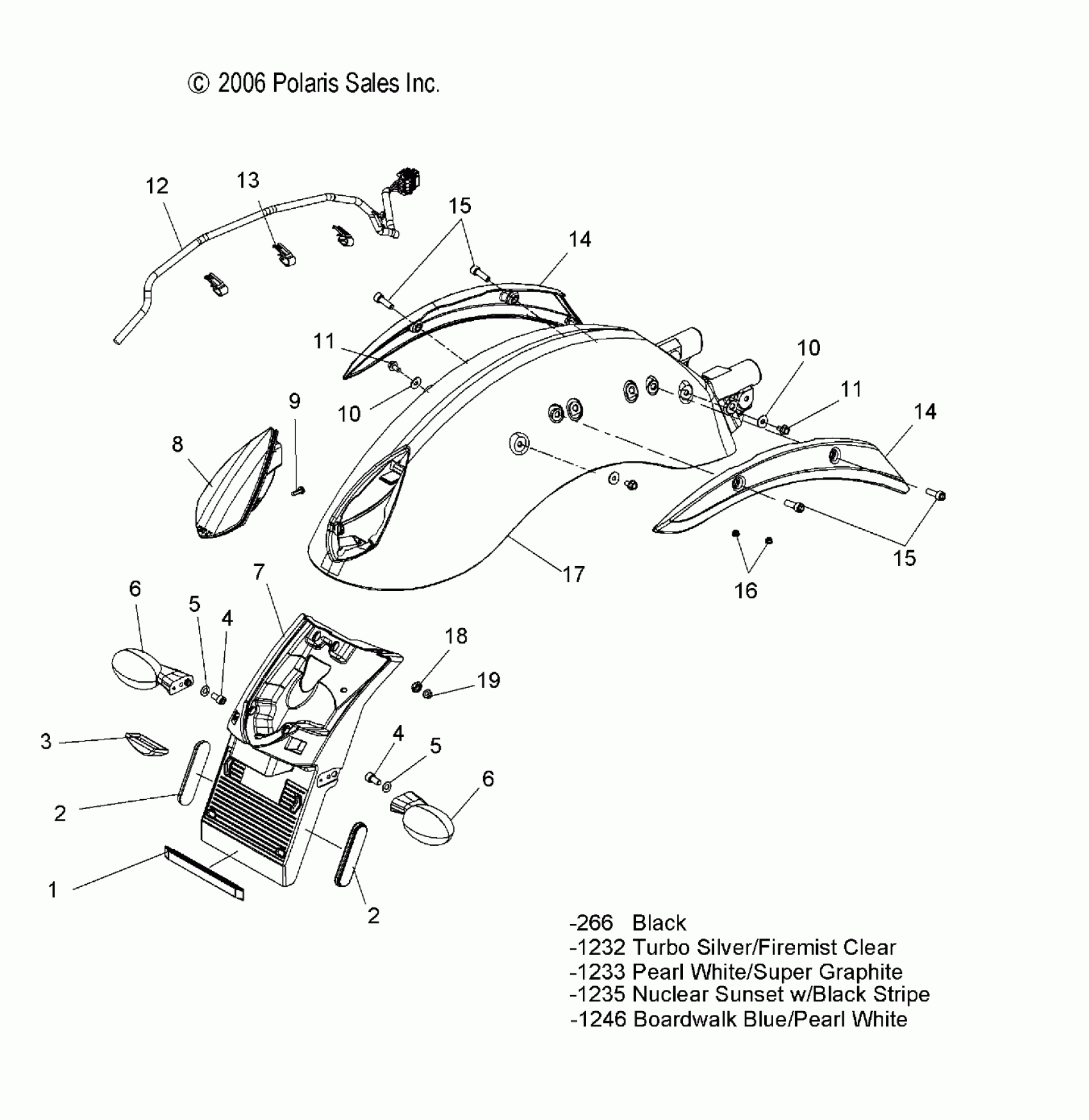

Polaris VEGAS/VEGAS 8 BALL ALL OPTIONS - V07AB26/GB26 BODY, FENDER, REAR and TAILLIGHT - V07AB26/GB26 ALL OPTIONS (49VICFENDERRR07VEGAS) Diagram
#
1
ASM., REFLECTOR, RED
2670070
$9.91
2
REFLECTOR, RED
5434624
Unavailable
2
REFLECTOR, RED
5434624
Unavailable
3
HOUSING, LICENSE PLATE LIGHT
5132233
Unavailable
4
SCREW
7517405
$10.39
4
SCREW
7517405
$10.39
5
WASHER, FLAT
7556121
$1.49
5
WASHER, FLAT
7556121
$1.49
6
Bulb, Single Filament, 10W
4010742
$8.79
6
SIGNAL, INC, REAR, RH
2410440
$51.99
6
SIGNAL, INC, REAR, LH
2410439
Unavailable
6
Bulb, Single Filament, 10W
4010742
$8.79
6
SIGNAL, INC, REAR, RH
2410440
$51.99
6
SIGNAL, INC, REAR, LH
2410439
Unavailable
7
BRACKET, LICENSE PLATE
5435514
Unavailable
8
Taillight, LED
2410470
Unavailable
9
SCREW
7518275
Unavailable
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
10
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
11
SCREW
7517704
$7.19
11
SCREW
7517704
$7.19
12
Harness, Rear
2410473
Unavailable
13
CLIP, ELECTRICAL
7080737
Unavailable
14
Cover, Strut, LH, Chrome
5631841-156
Unavailable
14
Cover, Strut, RH, Chrome
5631842-156
Unavailable
14
COVER, STRUT, LH, BLACK
5631841-521
Unavailable
14
COVER, STRUT, RH, BLACK
5631842-521
Unavailable
14
Cover, Strut, LH, Chrome
5631841-156
Unavailable
14
Cover, Strut, RH, Chrome
5631842-156
Unavailable
14
COVER, STRUT, LH, BLACK
5631841-521
Unavailable
14
COVER, STRUT, RH, BLACK
5631842-521
Unavailable
15
SCREW
7518084
Unavailable
15
SCREW
7518084
Unavailable
16
PLUG, FENDER, REAR
7671178
$1.99
17
FENDER, REAR
1014064-266
Unavailable
17
Fender, Rear
1014064-1232
$787.99
17
Fender, Rear
1014064-1233
$989.99
17
Fender, Rear
1014064-1235
$939.99
17
Fender, Rear
1014064-1246
$899.99
18
SLEEVE, SHOULDERED, M6
5134082
Unavailable
19
Nut
7710495
$4.79
