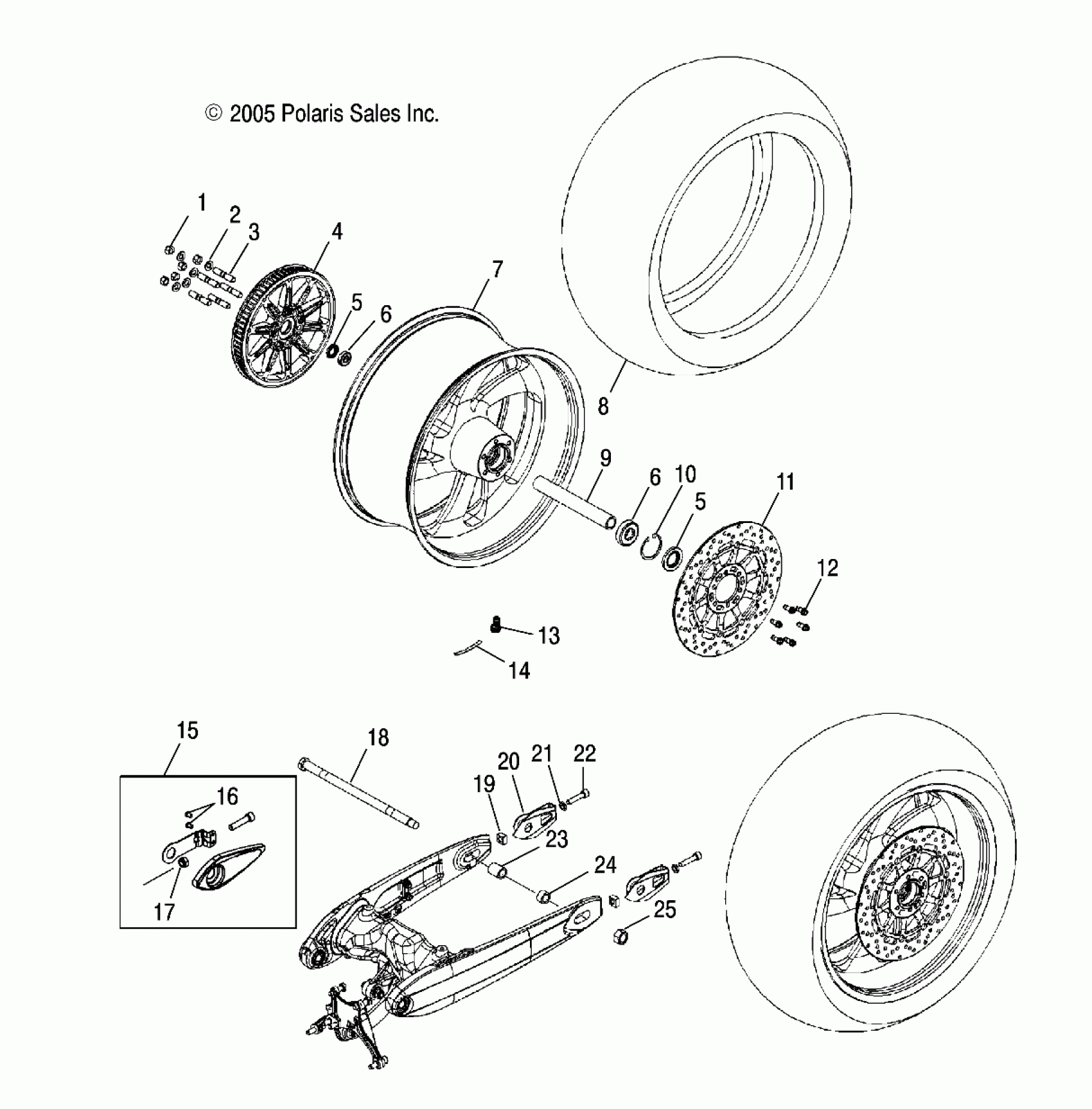

Polaris VEGAS JACKPOT ALL OPTIONS - V06XB26 WHEELS, REAR (CAST) - V06XB26/BC26 ALL OPTIONS (4999203459920345B04) Diagram

#

Description
Price

1

NUT

7547232

$23.99

2

WASHER, FLAT

7556287

$7.19

3

Stud

7518311

Unavailable

4

Asm., Sprocket, Driven, 70T, Silver

1332399-385

Unavailable

5

SEAL

3610094

Unavailable

5

SEAL

3610094

Unavailable

6

BEARING, BALL

3514405

Unavailable

6

BEARING, BALL

3514405

Unavailable

7

Asm., Wheel, Cast, Rear [Incl. 5-7,9,10,13,14]

1520864

$1,009.99

8

TIRE, REAR

5412522

Unavailable

9

Spacer

5334450

Unavailable

10

Ring, Retaining

7710526

Unavailable

11

Rotor, Brake, Floating

1910623

Unavailable

12

Screw

7518297

Unavailable

13

Weight, Balance

1520618

Unavailable

14

Valve, Rim

1520232

$3.17

15

Kit, Axle Adjusters, Chrome [Ness]

2875300-156

$20.63

16

SCREW

7517406

Unavailable

17

NUT, NYLOK

7547268

$1.49

18

Spindle

1014584

Unavailable

19

Nut

5134437

Unavailable

20

Bracket, Axle, Adjust

5247599

$34.99

21

Nut

7547284

$3.97

22

Screw

7518485

Unavailable

23

SPACER, RH

5631581

Unavailable

24

SPACER, BEARING, LH

5631479

Unavailable

25

Nut, Hex

7547266

Unavailable
