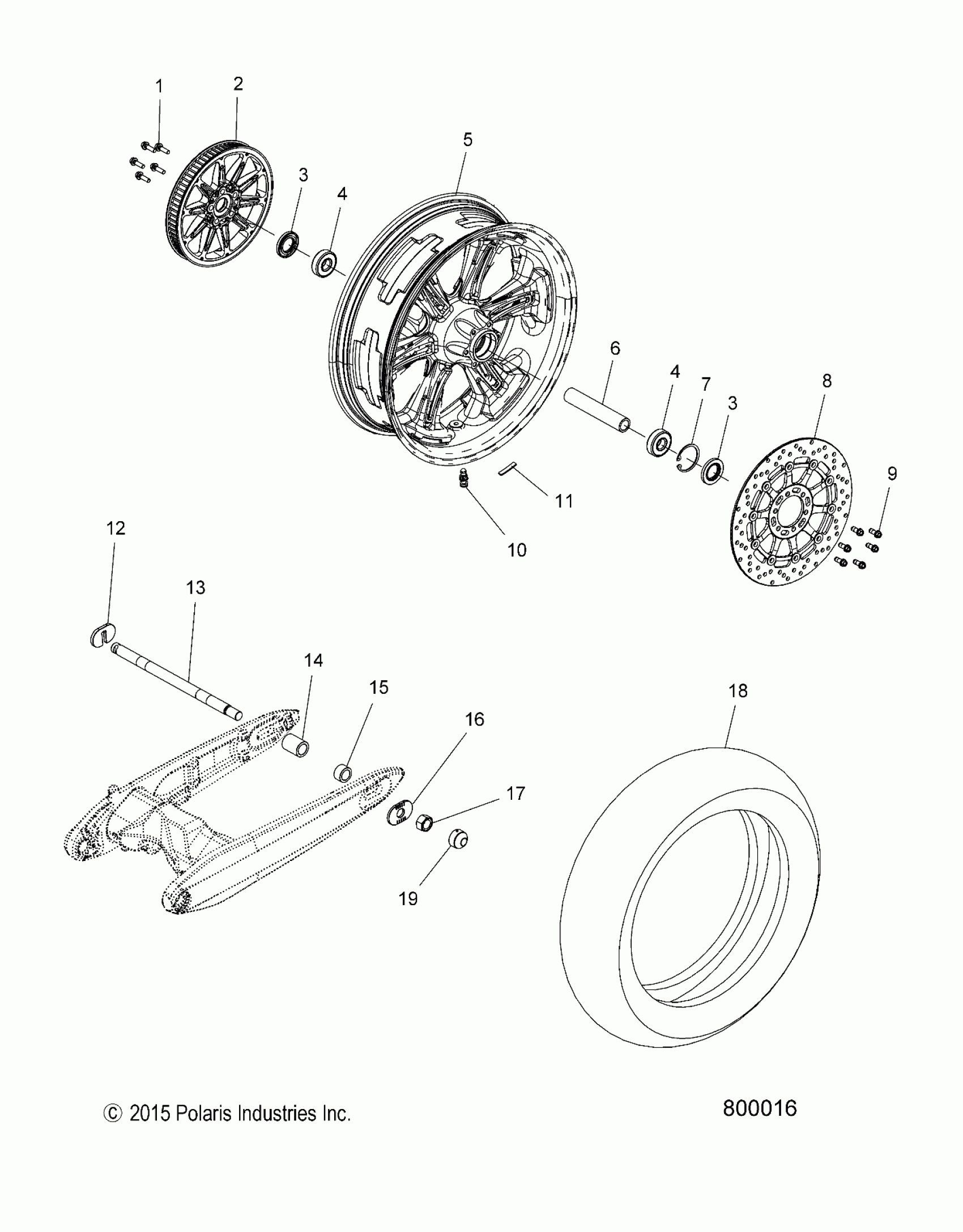

Polaris VEGAS ALL OPTIONS (R01) - V17CVBAB WHEELS, REAR - V17CVBAB ALL OPTIONS (800016) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

ASM., SPROCKET, 70T, BLACK ENGINE WRINKLE

1333369-521

$554.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

ASM., WHEEL, REAR, CAST, FLAT BLACK MACH [Incl. 3-7,10,11]

1522515-463M

$509.49

6

SPACER, BEARING, MID

5335682

$61.89

7

Ring, Retaining

7710526

$10.32

8

ROTOR, BRAKE, BLACK

1911624-266

$379.99

9

SCREW

7518661

$1.59

10

VALVE, 90 DEGREE

1522785

Unavailable

11

WEIGHT, STEEL, BALANCE, BLACK

1521682

Unavailable

12

RETAINER-AXLE, REAR

5248599

$27.78

13

AXLE, REAR

5135743

$67.46

14

SPACER, WHEEL, REAR, RH

5631581

$11.99

15

SPACER, BEARING, LH

5631479

$3.97

16

WASHER, INDICATOR, AXLE

5248452-236

$27.78

17

NUT, HEX

7547226

$23.81

18

TIRE, REAR

5413825

$319.99

19

ASM-CVR,AXLE NUT,M18 [INTL.]

1017531

$79.99

19

SCR-SET,CUP POINT M4X0.7X6,SS [INTL.]

7518449

$3.97
