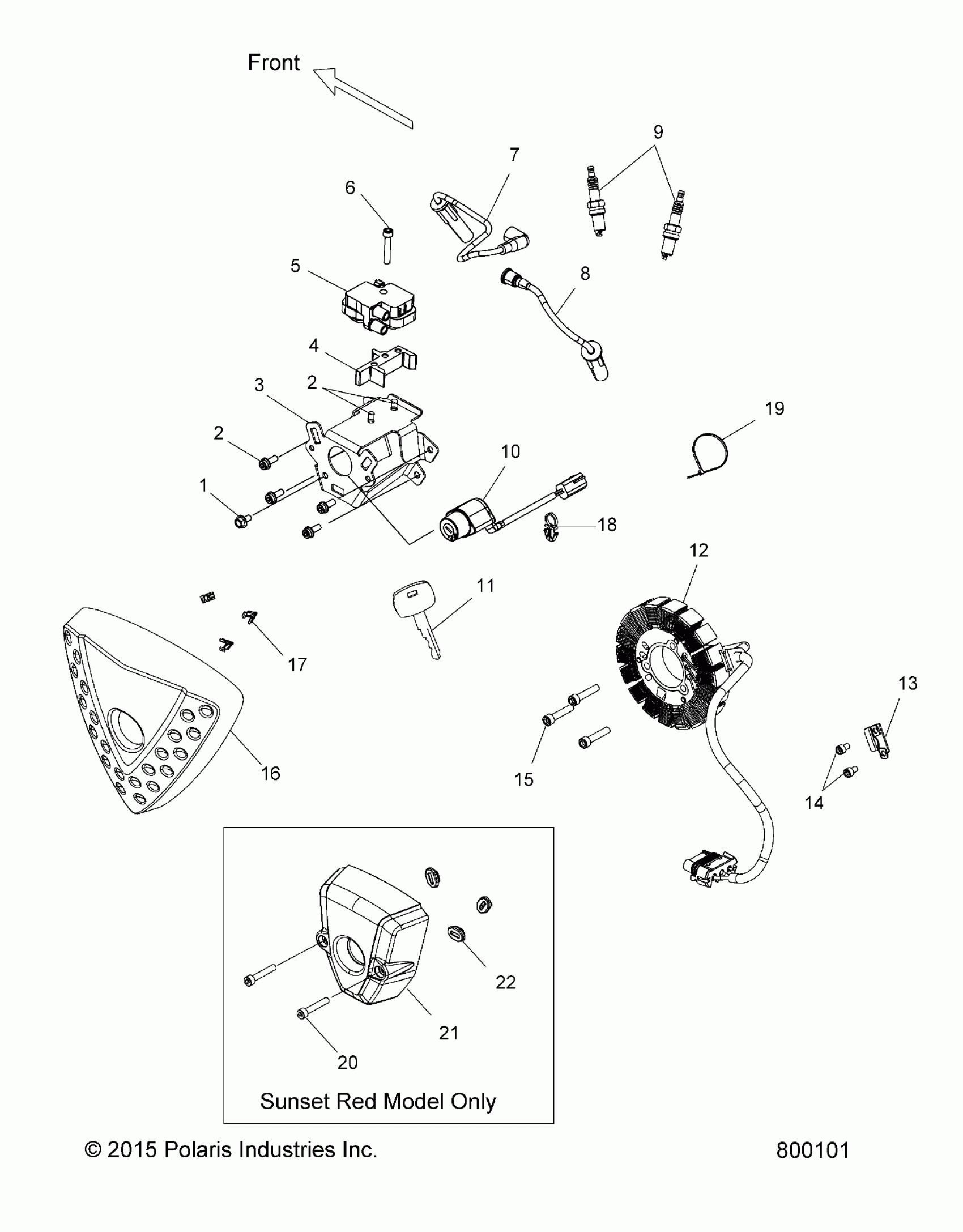

Polaris VEGAS ALL OPTIONS (R01) - V16GB36 ELECTRICAL, IGNITION SYSTEM - V16GB36 ALL OPTIONS (800101) Diagram

#

Description
Price

1

SCREW

7517704

$7.84

2

SCREW

7518803

$3.97

2

SCREW

7518803

$3.97

3

BRACKET, IGNITION COIL

5255393

$41.67

4

SPACER, IGNITION COIL

5510601

Unavailable

5

COIL-EFI

4010425

$242.84

6

SCREW

7517259

$5.56

7

LEAD, SPARK PLUG [FRONT CYLINDER]

4014932

$44.51

8

LEAD, SPARK PLUG [REAR CYLINDER]

4014933

$44.51

9

PLUG, SPARK, DCPR6E

3070202

$7.94

10

ASM., IGNITION SWITCH/FUEL CAP, BLACK

4012376-266

$285.62

10

ASM., IGNITION SWITCH/FUEL/FORK LOCK, INT'L, BLACK [INTL.]

4012377-266

$374.99

11

KEY, BLANK

4110239

$14.56

12

STATOR, CHARGING, 20 MAG

4012715

$424.98

13

CLIP, STATOR WIRE

5251115

$9.52

14

SCREW

7517847

$3.17

15

SCREW

7517301

$2.99

16

COVER, IGNITION/COIL, TEXT BLACK

5439044

$44.51

17

CLIP, TINNERMAN

7670136

$2.38

18

CLIP, SNAP-IN

7080756

$4.76

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

SCREW

7519370

$23.81

21

COVER, IGNITION/COIL, FLAT BLACK [SUNSET RED BIKES ONLY]

5632602-463

$144.99

22

BUSHING, RECTANGULAR

5414353

$3.17
