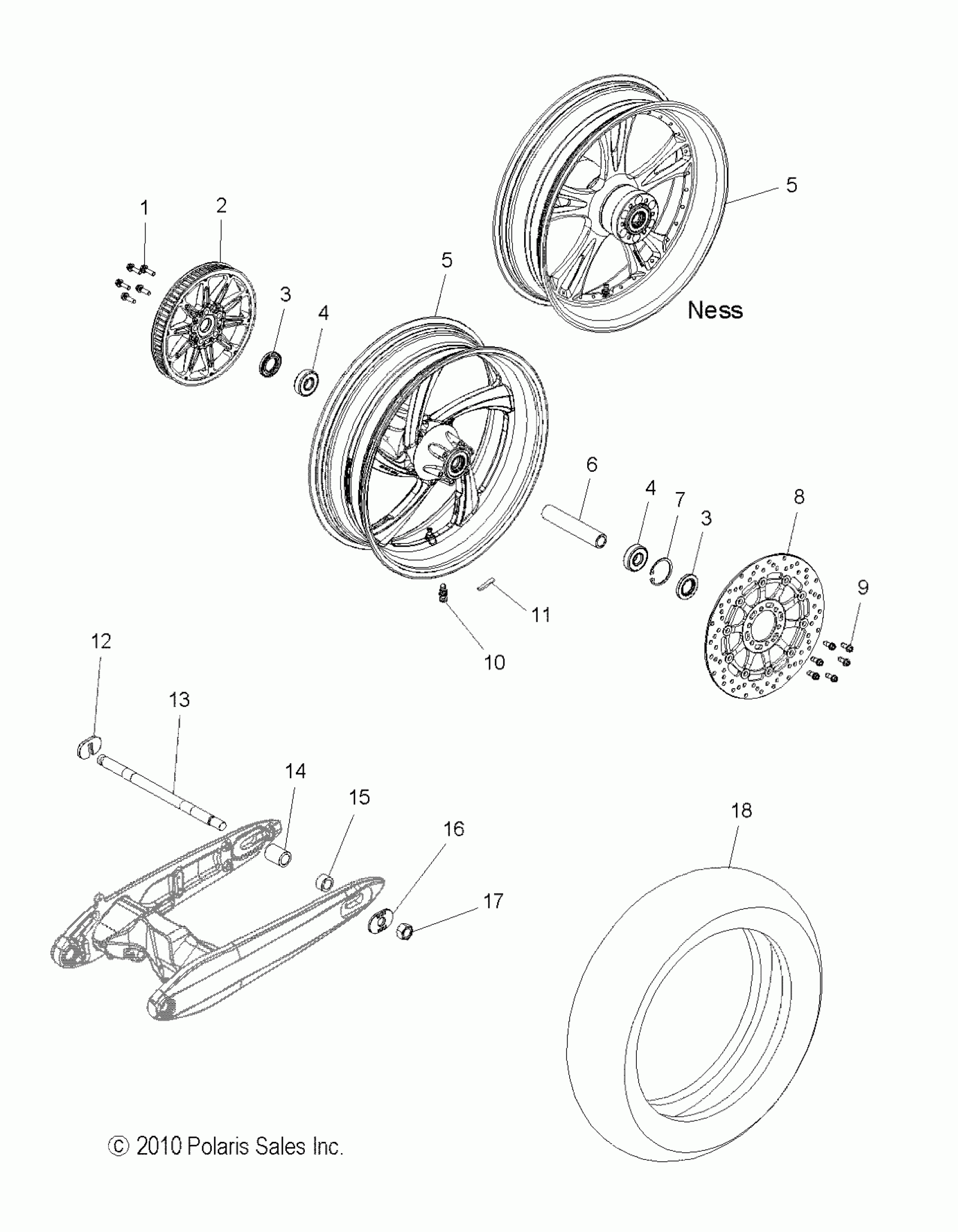

Polaris VEGAS/8 BALL/ZNESS ALL OPTIONS - V12GB36/GA36/ZB36 WHEELS, REAR - V12GB36/GA36/ZB36 ALL OPTIONS (49VICWHEELRR11VGS) Diagram

#

Description
Price

1

SCREW

7518878

$4.76

2

Asm., Sprocket, 70T, Black Engine Wrinkle

1332399-521

$554.99

3

SEAL

3610094

$31.75

3

SEAL

3610094

$31.75

4

BEARING, BALL

3514405

$19.84

4

BEARING, BALL

3514405

$19.84

5

ASM., WHEEL, REAR, CAST, BLACK [Incl. 3-7,10,11]

1521153-266

$682.49

5

Asm., Wheel, Rear, NESS [Incl. 3-7,10,11]

1521579

$2,454.99

5

ASM., WHEEL, REAR, CAST, BLACK [Incl. 3-7,10,11]

1521153-266

$682.49

5

Asm., Wheel, Rear, NESS [Incl. 3-7,10,11]

1521579

$2,454.99

6

SPACER, BEARING, MID

5335682

$61.89

6

Spacer, Bearing, Mid [NESS]

5334138

$61.89

7

Ring, Retaining

7710526

$10.32

8

ROTOR, BRAKE, BLACK

1911624-266

$379.99

9

SCREW

7518661

$1.59

10

VALVE, RIM

1521312

$11.32

10

Valve, Rim, NESS

1521144

Unavailable

11

WEIGHT, STEEL, BALANCE, BLACK

1521682

Unavailable

12

RETAINER-AXLE, REAR

5248599

$27.78

13

AXLE, REAR

5135743

$67.46

14

SPACER, WHEEL, REAR, RH

5631581

$11.99

15

SPACER, BEARING, LH

5631479

$3.97

16

WASHER, INDICATOR, AXLE

5248452-236

$27.78

17

NUT, HEX

7547226

$23.81

18

TIRE, REAR

5413825

$319.99
