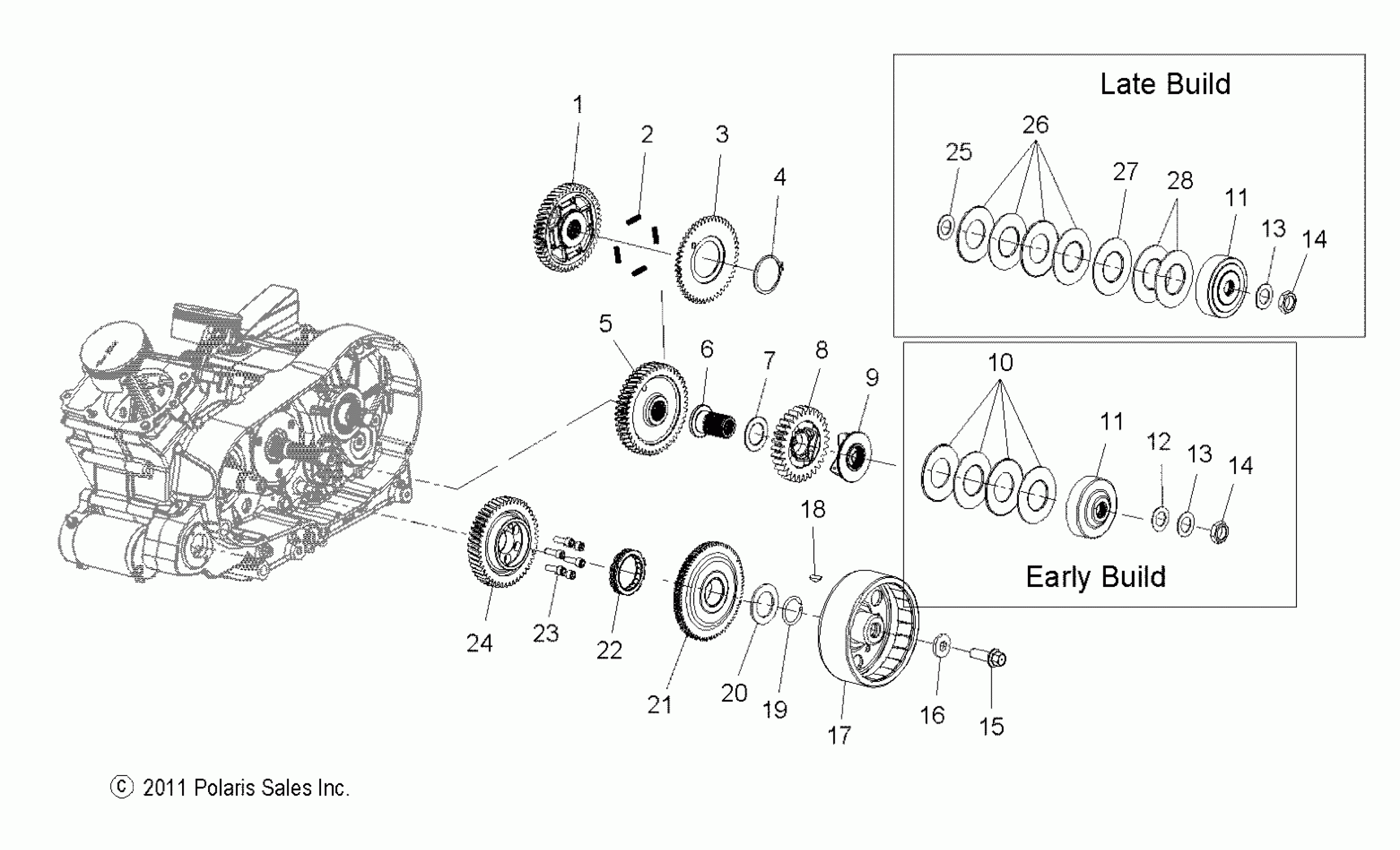

Polaris VEGAS/8 BALL/ZNESS ALL OPTIONS - V12GB36/GA36/ZB36 DRIVE TRAIN, PRIMARY DRIVE - V12GB36/GA36/ZB36 ALL OPTIONS (49VICPRIMARYDRV12VGS) Diagram

GEAR, BALANCE SHAFT, DRIVEN

6230440

$204.99

SPRING, SPLIT GEAR

7042096

$40.46

GEAR, SPLIT, BALANCE SHAFT, DRIVEN

6230470

$179.99

RING, RETAINING

7710529

$27.78

ASM., SPLIT GEAR [INCL. 1-4]

1332830

$389.99

SHAFT, COMPENSATOR

5137204

$94.99

WASHER

7556539

$34.99

GEAR, COMPENSATOR, DRIVE

6230469

$214.99

SLIDER, COMPENSATOR

5135550

$250.94

Spring, Belleville, Compensator [Built 8/03/11 and Before]

7042019

$32.37

RETAINER, COMPENSATOR

5137955

$114.99

RETAINER, COMPENSATOR

5137955

$114.99

Washer, Flat [Built 8/03/11 and Before]

7556518

$10.32

DISC, SPRING

7556519

$32.37

DISC, SPRING

7556519

$32.37

NUT

7547477

Unavailable

NUT

7547477

Unavailable

BOLT, OIL JET

7518008

$27.78

WASHER, FLAT

7555987

$2.38

ROTOR, CHARGING

4012716

Unavailable

KEY-WOODRUFF,4X5

7721122

$7.84

RING, RETAINING, 35 DEGREE

7710490

$23.81

WASHER, FLAT

7556237

Unavailable

ASM., CRANKSHAFT GEAR STARTER DRIVE

1015167

$185.70

CLUTCH, STARTER DRIVE

4060156

$499.99

SCREW

7517260

$9.52

GEAR, CRANKSHAFT, PRIMARY, HCL

6230471

$275.22

Spacer, Compensator [Built 8/04/11 and After]

5137949

$39.68

Spring, Belleville, 2.54mm [Built 8/04/11 and After]

7043639

$32.37

Washer [Built 8/04/11 and After]

7556577

$51.59

Spring, Bellville, .9mm [Built 8/04/11 and After]

7043638

Unavailable
