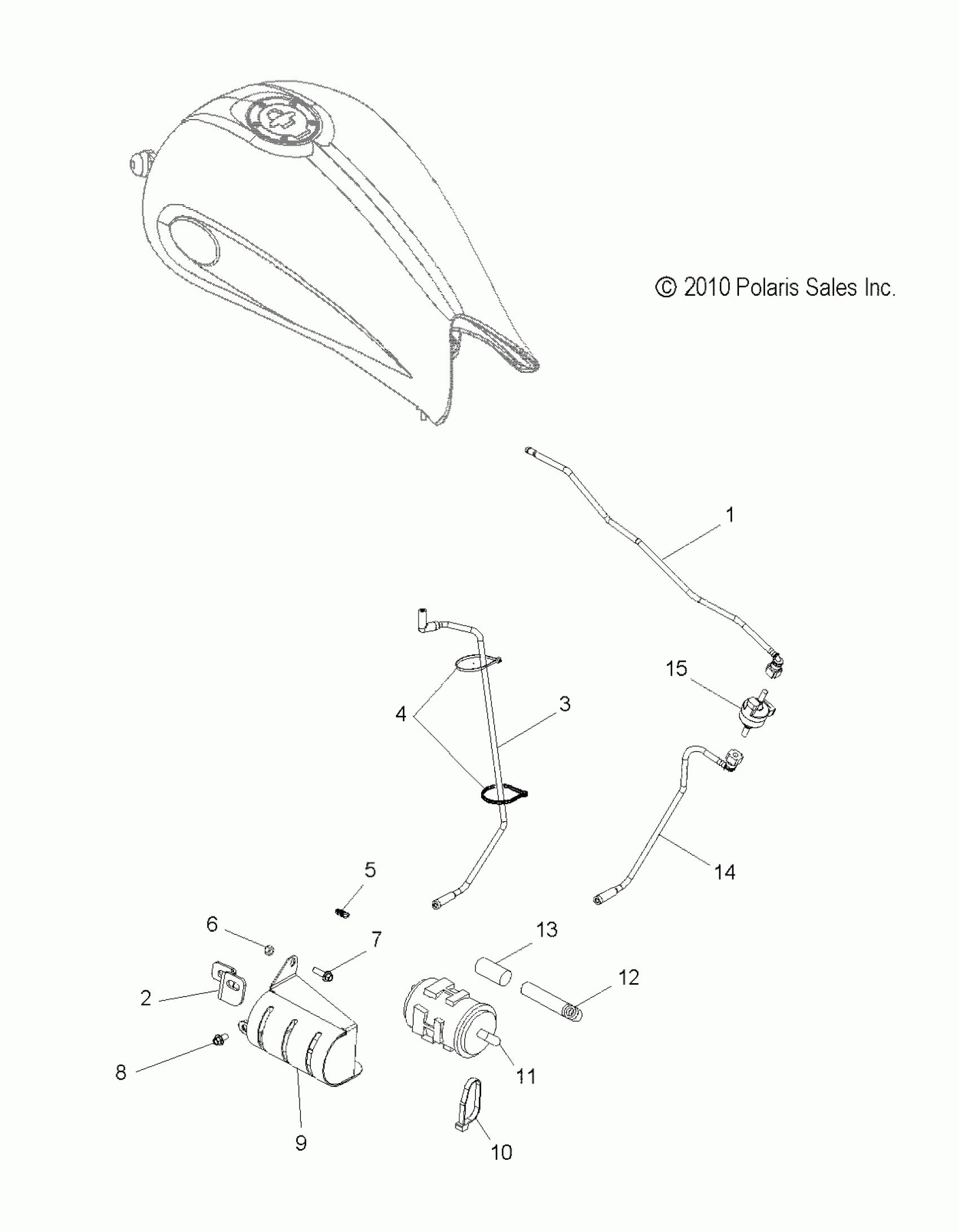

Polaris VEGAS 8-BALL - V15GA36NA/NAA/NAC/EA FUEL SYSTEM, EVAP SYSTEM (CA) - V15GA36NAC (49VICEVAP11VGS) Diagram

#

Description
Price

1

TUBE, VENT, PURGE TO TB

5438443

$72.84

2

BRACKET, SIDE STAND STOP, BLACK

5254067-266

Unavailable

3

LINE, VENT, TANK TO CAN

5438441

$119.05

4

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

5

CLIP, SNAP-IN

7080756

$4.76

6

NUT

7547121

$2.60

7

Screw

7517839

$6.10

8

SCREW

7518043

$9.52

9

BRACKET, EVAP CANISTER

1015996-463

Unavailable

10

TIEWRAP

7080924

$7.94

11

FILTER

2520192

$74.19

12

HOSE, VENT

5411870

$48.56

13

FILTER, VENT LINE

7080932

$4.35

14

TUBE, VENT, EVAP TO PURGE

5436760

$63.49

15

Valve, Canister, Purge

4011303

$74.99
