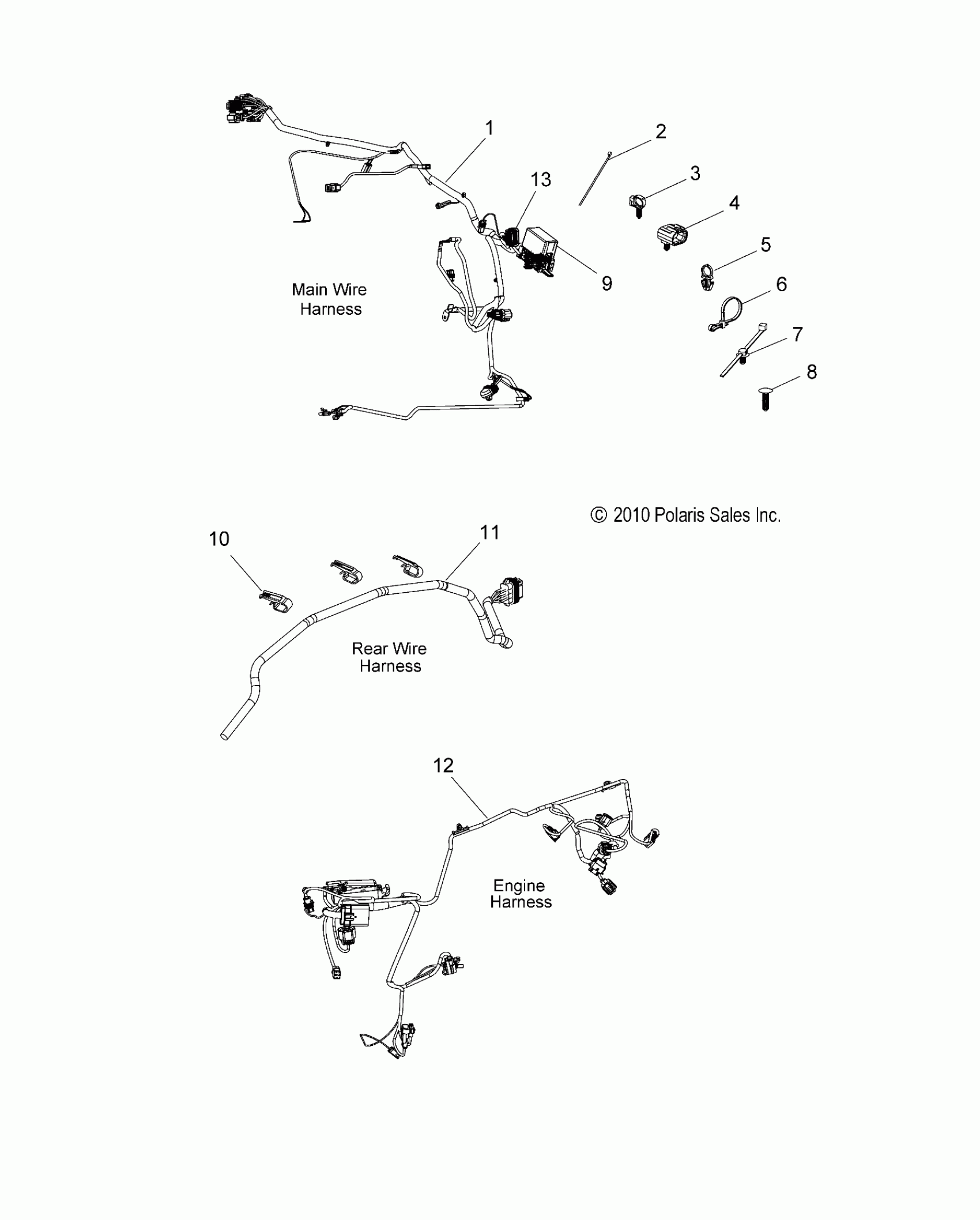

Polaris VEGAS 8-BALL - V15GA36NA/NAA/NAC/EA ELECTRICAL, WIRE HARNESSES - V15GA36NA/NAA/NAC/EA (49VICHARNESS11VGS) Diagram

#

Description
Price

1

HARNESS, MAIN WIRE, CHASSIS

2411502

$829.99

2

CABLE-TIE,7-46MM,DUAL-LOOP

7081033

$4.03

3

CLIP, DART

4010589

$2.38

4

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

5

CLIP, SNAP IN

7080756

$4.76

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

8

CLIP, DART, NYLON

7670078

$3.79

9

COVER-RELAY/FUSE CENTER

5438758

$12.13

10

CLIP, ELECTRICAL

7080737

$4.76

11

HARNESS, REAR

2410955

$124.99

12

KIT, HARNESS, IAC

2878507

$179.99

12

HARNESS, ENGINE

2411519

Unavailable
